Letone provides hoses, assemblies, crimping parameters, technical services, and quality assurance. The assemblies have a one-year warranty, while Letone Technology provides crimping services with a two-year warranty.
Bending radius: 41% reduced compared to ISO18752 standards; 47% reduced compared to SAE standards; pressure exceeds SAE standards by 60%.
low bending
The bending radius is 34% lower than the ISO 18752 Class C standard.
High pressure
Pressure 25% higher than SAE/DIN standard
Long lifespan
The number of impulses in the hoses all exceeded 1 million.
Zero leakage
When used with Letone Technology's self-developed hose connectors and hydrogenated nitrile butadiene seals, the service life can exceed 5 years (with a two-year warranty).
Good service
Our pipeline system integration solutions strive to provide five "saving" services: saving time, effort, trouble, money, and worry.

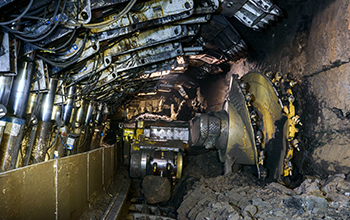

Harsh environment
The on-site installation environment for fully mechanized coal mining equipment is poor. Fully mechanized coal mining equipment, represented by hydraulic supports, is mainly used in underground coal mining operations. Due to the confined space and complex environment of underground coal mining operations, the installation and commissioning of fully mechanized coal mining equipment are extremely difficult.

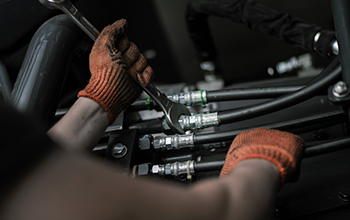

Harsh Environment 2
The harsh environment and heavy loads of coal mining equipment put a strong impact on the hydraulic system, making it prone to failure and thus affecting safe production in the coal mine.

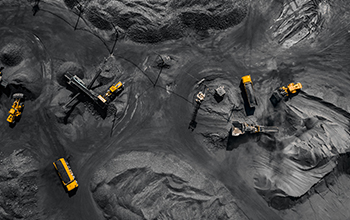

Harsh Environment 3
The complex mining environment and changing external factors in coal mines easily lead to wear and tear on hydraulic pipelines of fully mechanized mining equipment such as hydraulic supports. This can cause the outer rubber of the hoses to rupture, the steel wires in the hoses to rust and break, and the hoses to burst, resulting in abnormal operation of hydraulic system components and frequent malfunctions. Replacement is frequent and requires replacement with...
Harsh Environment 4
Hose assemblies made of carbon steel, used as hydraulic system components in fully mechanized mining equipment, are constantly exposed to chemical waste and humid environments, making their joints highly susceptible to corrosion. Leaks and spills in production equipment and pipelines caused by corrosion can lead to serious problems.
Impulse Performance Parameters Of Long-life Mining Hoses
product
Impulse count
Braided Hose (LTSA6991/LTSA6992)
Spiral wound Hose (LTSA5991/LTSA5992/LTSA5993)
Letone Super Artery Mining Hose
Over 600,000 times, stable at 500,000 times
Reaching 1 million times, stable at 800,000 times.
Low-temperature And Ozone Performance Parameters Of Long-life Mining Hoses
product
Test performance
Low temperature performance (standard 24h)
Ozone aging (standard 72h)
Letone Super Artery Mining Hose
No cracks after 48 hours at -40℃; no leakage in the crimped assembly.
No cracks after 1440 hours at 40℃*50pphm, exceeding the standard by 20 times.
Honors And Qualifications
For many years, Letone has consistently adhered to the core values of "integrity first, customer foremost" and steadfastly promoted the development strategy of "innovation-led, talent cultivation as a priority, rooted in excellence, and striving for the pinnacle." The company focuses on the upstream and downstream industrial chains of rubber hoses, conducting technological research and development and manufacturing of polymer materials, hydraulic hoses, industrial hoses, oil drilling hoses, food and pharmaceutical hoses, rubber seals, and fluid connectors.
Safety Certificate for Mining Products R13-63, 76

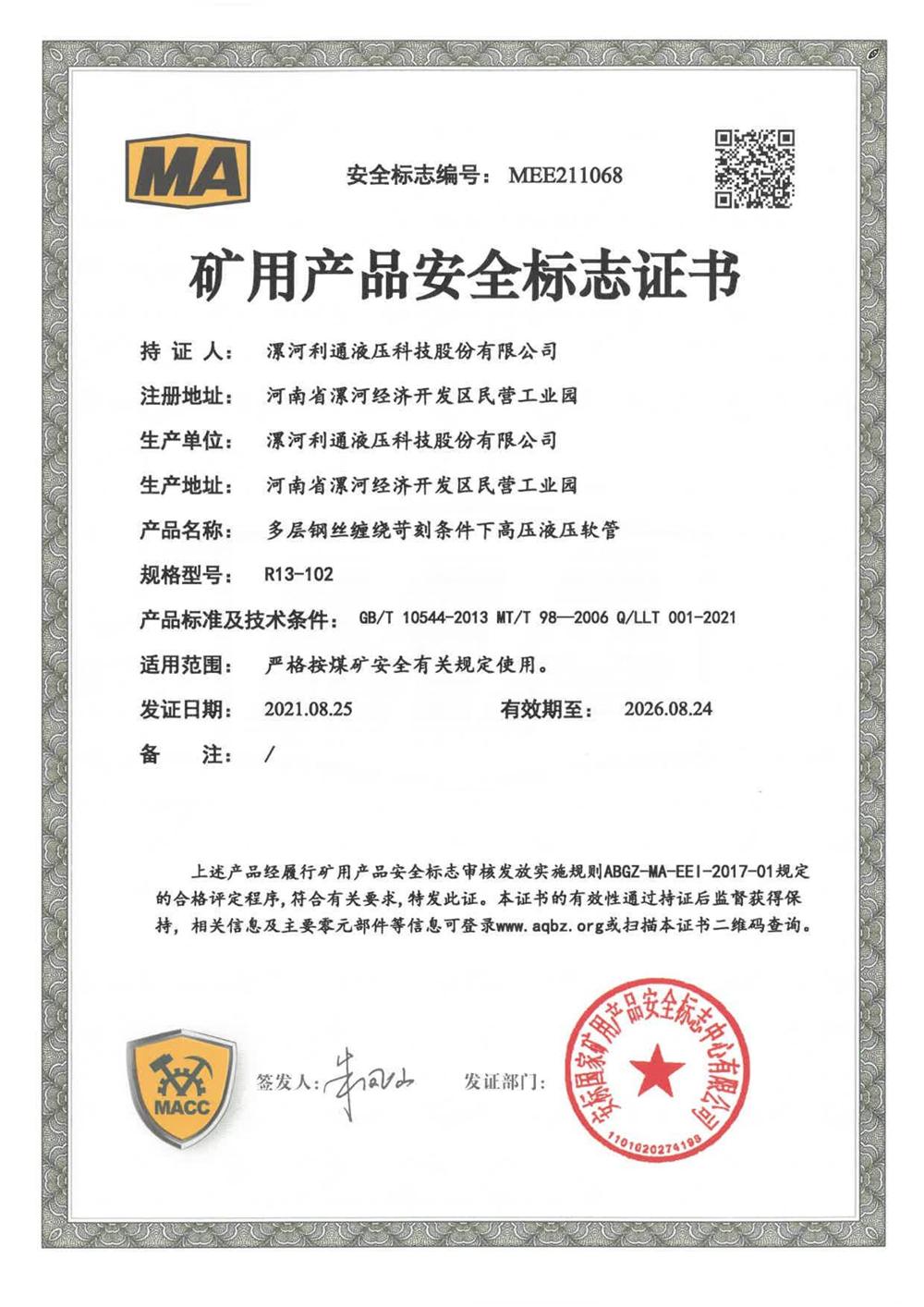

Safety Certificate for Mining Products R13-102
Safety Certificate for Mining Products R15-63/76

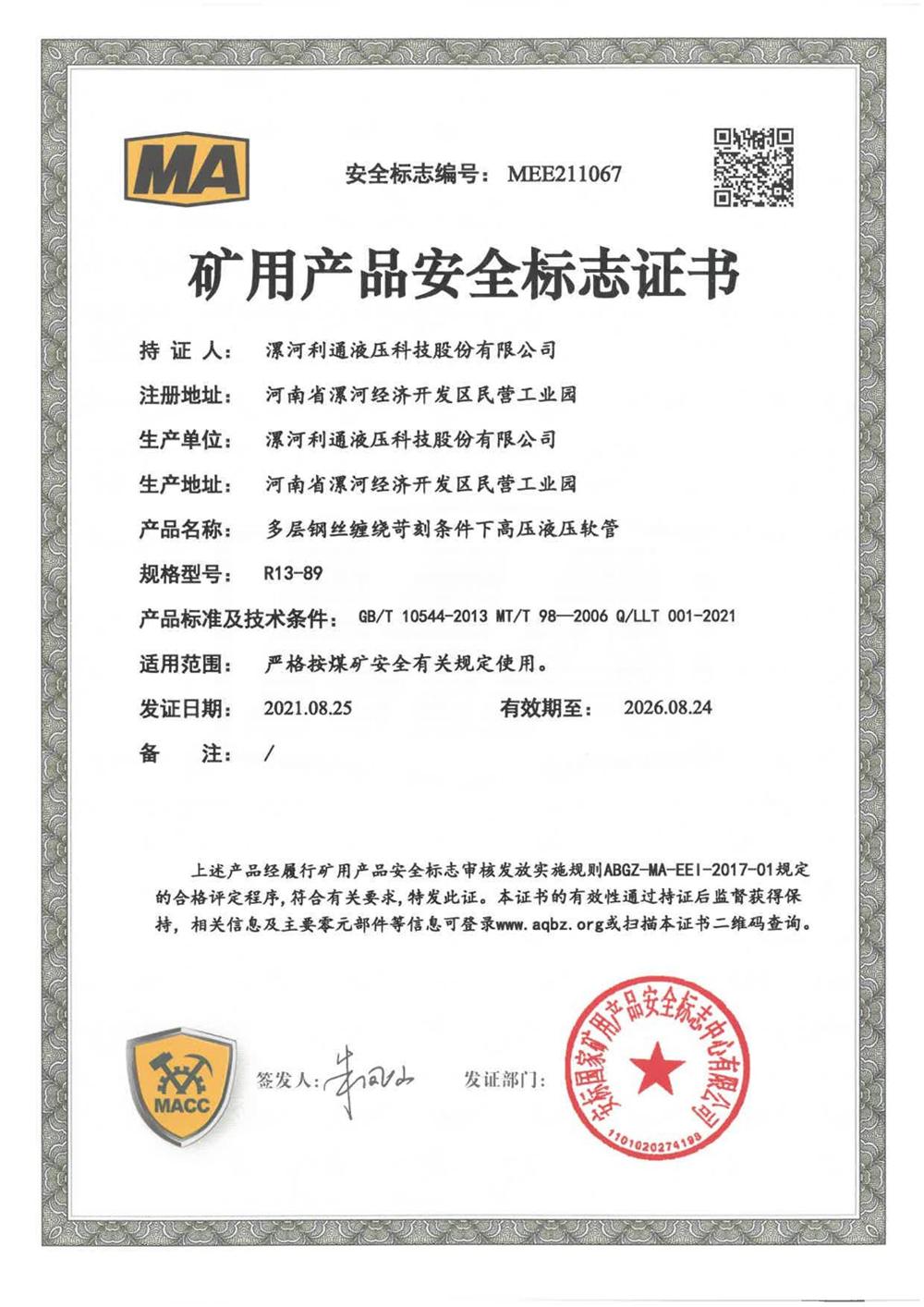

Safety Certificate for Mining Products R13-89

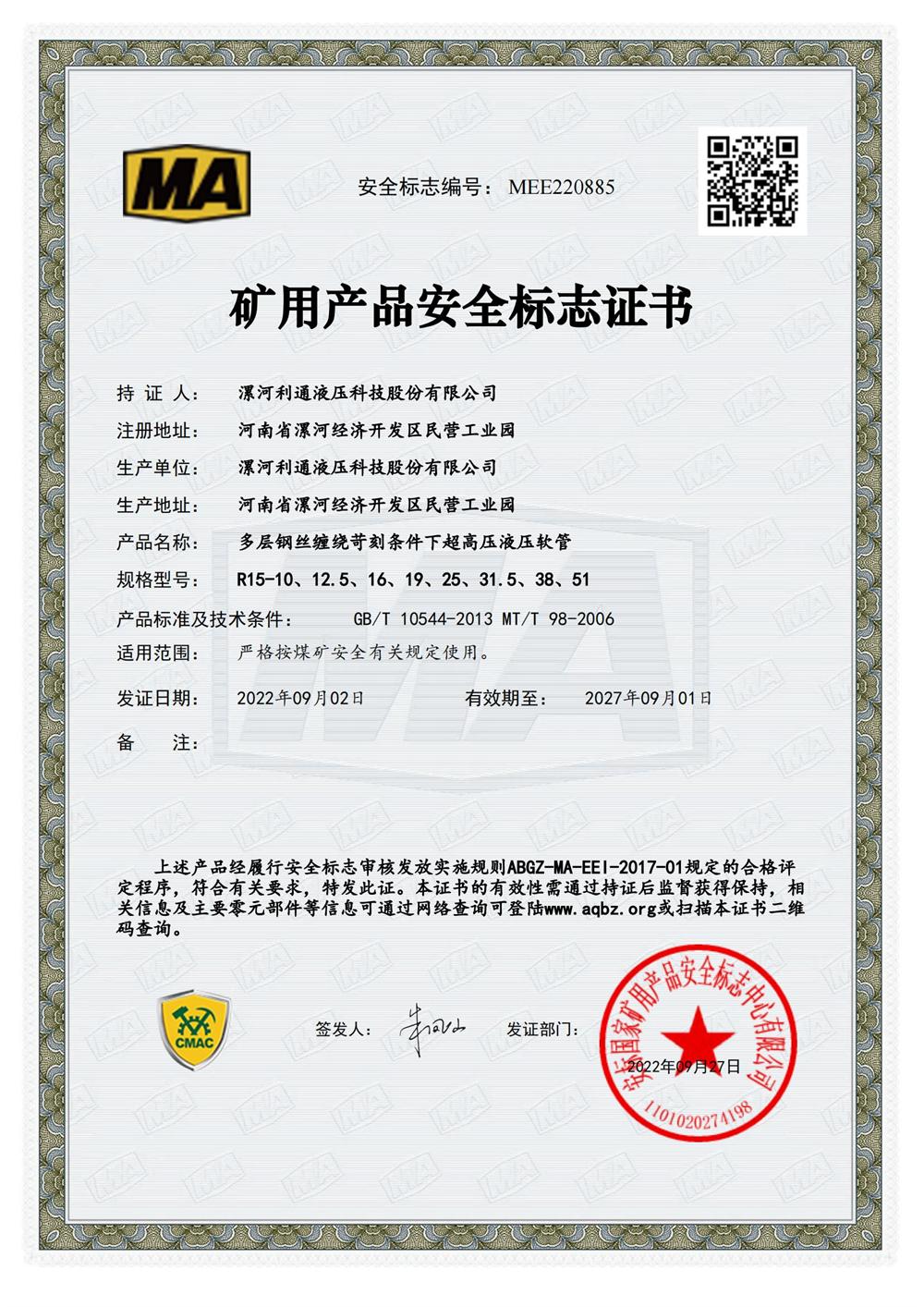

Safety Certificate for Mining Products R15-10/12.5/16/19/25/31.5/38/51
