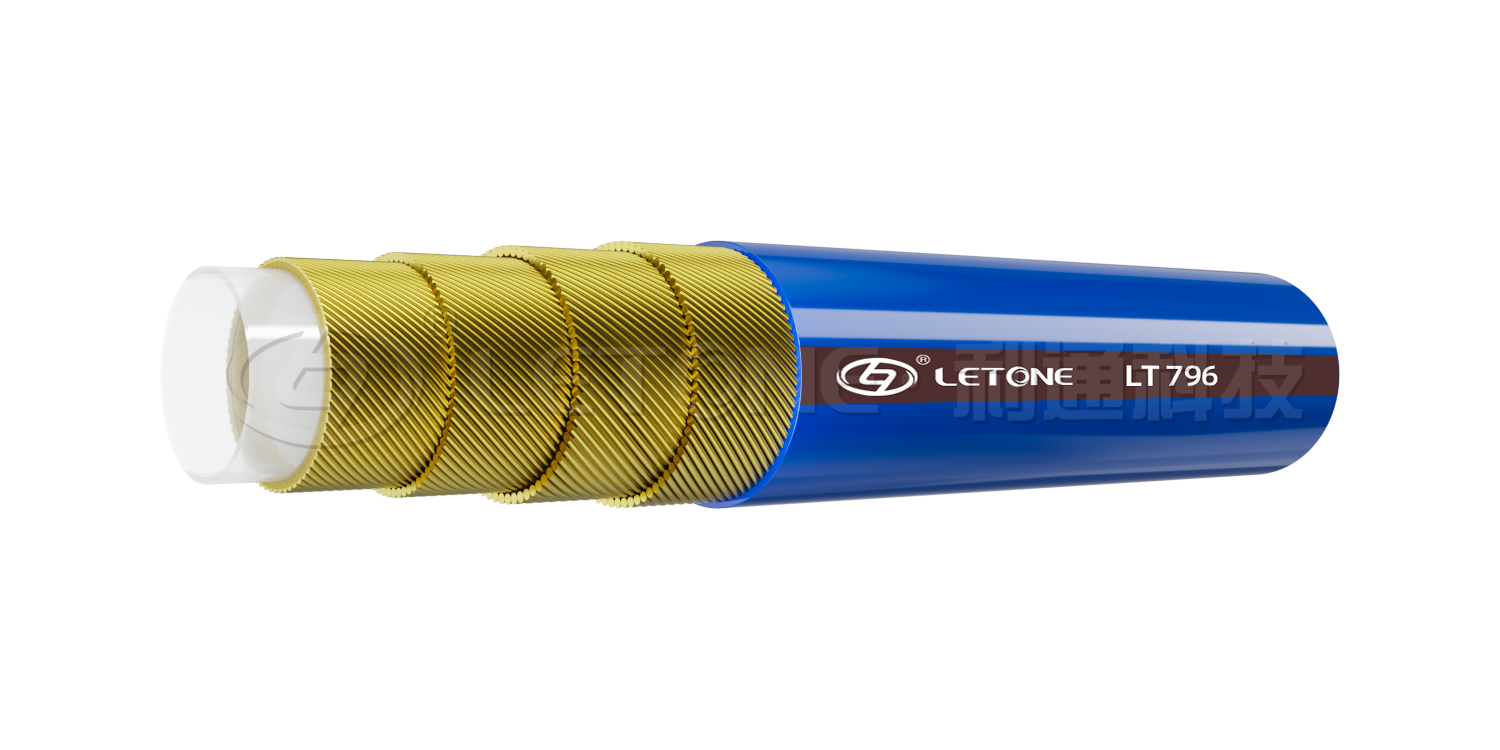

LT796

Parameter

Optional Hose Fittings

Forged from high-strength alloy steel, rigorous heat treatment ensures a uniform microstructure and pressure-bearing capacity. Materials used fully comply with American ASTM and AISI standards, and product specifications fully meet API Spec 6A standards. The product offers reliable sealing, quick installation and removal, and excellent interchangeability. It can be connected using pipe threads, tubing threads, butt-welded connections, or pressure-sealed end connections.

The 600 type uses a bronze seat for the main seal.

Recommended for use in steam systems, for manifold and line connections in production, drilling, and workover operations.

Product Introduction

Pressure Color Mark

Letone Technology's ultra-high pressure resin hoses use internationally recognized color coding to differentiate pressure levels, making it easy for users to identify and reducing safety risks.

• 10000psi - 690bar15,000psi-1034bar20,000psi-1379bar30,000psi-2068bar40,000psi-2758bar55,000psi-3792bar

Custom Hose Assembly

The hose assembly consists of ultra-high pressure resin hoses, connectors, and accessories. Because it is primarily used in ultra-high pressure environments, the level of professionalism in its assembly plays a decisive role in the safety and performance of the ultra-high pressure resin hose assembly.

Letone Technology considers the user experience paramount. From hoses, connectors, and accessories to semi-finished products and finished assemblies, every qualified ultra-high pressure resin hose assembly undergoes rigorous quality control at every stage. Letone Technology's implementation of lean manufacturing and adherence to lean principles also ensures that no defective products enter the market.

Choose The Right Product

Similar to selecting other hose products from Letone Technology, you can choose the appropriate product model based on the following aspects:

Operating Pressure: The maximum operating pressure, pulse, and required safety factor determined by the product's operating conditions;

Operating Temperature: Including the highest/lowest operating temperature of the medium and the highest/lowest ambient temperature;

Using Medium: The physical and chemical properties of the medium will have a decisive impact on the selection of hose material;

Special Requirements of the Application Environment: Certain specific operating environments will impose special requirements on the product's wear resistance, aging resistance, flexural strength, pulse resistance, bending radius, etc. (Please consult our sales personnel for the best solution);

Connector Selection: Selecting suitable connectors is a prerequisite for producing qualified assembly products. Effective selection (or design) of connectors according to the equipment's design requirements will greatly improve the production efficiency of assembly products.

•  Transparent PVC protective sleeves or extra-strong protective sleeves reinforced with wound steel wire for harsh environments. Note: Hose protective sleeves are not intended for use as operator protective equipment.
• Stainless steel gripping rings have a set clamping distance requirement. When using Letone Technology thermoplastic tubing for heat exchanger cleaning, the gripping rings can assist operators.
• The hose anti-disengagement clip securely holds the high-pressure hose in place in the event of accidental disconnection, preventing injury to operators or equipment. It is strongly recommended for use in high-pressure applications. Tensile strength ranges from 1372 kN to 2477 kN.
• Bending limiters can effectively prevent problems such as leakage and rupture caused by twisting at hose and joint connections under harsh operating conditions.

Certificate

Letone Technology has successively passed product certifications including Safety Mark (MA), MSHA, American Petroleum Institute (API) product certifications API-16C and API-7K, American Bureau of Shipping (ABS) product certification (oil drilling equipment and steel wire braided rubber hose assemblies) and type approval (oil drilling equipment), DNV type approval (LTSA699), Russian GOST oil certification, Lloyd's Register fire protection certification, etc. Its management system certifications include DNV quality management system (compliant with standard GB/T19001-2016/ISO 9001:2015), quality management system for oil and gas manufacturing organizations (compliant with standard API Specification Q1), environmental management system (compliant with standard GB/T24001-2016/ISO14001:2015), weapons and equipment quality management system (compliant with standard GJB9001C-2017), and the integration of informatization and industrialization management system (GB/T 23001-2017), etc. Letone Technology Testing Center has been CNAS accredited since 2016 and has nearly 20 laboratories, including pulse laboratory, blasting laboratory, fire resistance laboratory, and salt spray laboratory. Its test results are recognized as objective, accurate and authoritative.
