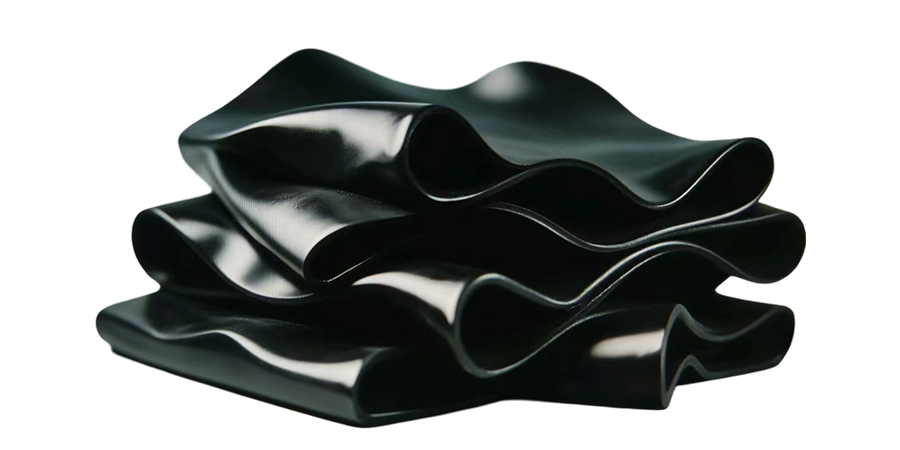

Acrylic Compound
24 Hours Service Hotline
+86-0371-55157686
| Item | Testing Standard | Standard Type | Low-Pressure Deformation | High-Temperature Resistant Type | Low-Temperature Resistant Type |
| Mooney Viscosity ML100(1+4) | GB/T 1232.1 | 42 | 40 | 48 | 28 |
| Vulcanized Rubber Properties | Stage 1: 170℃×20min; Stage 2: 170℃×4h | ||||
| Hardness, Shore A | GB/T 531.1 | 74 | 73 | 74 | 73 |
| Tensile Strength，MPa | GB/T 528 | 9.8 | 7.9 | 10 | 9.5 |
| Elongation at Break，% | GB/T 528 | 274 | 232 | 258 | 253 |
| Tear Strength,N/ mm | GB/T 529 | 25 | 19 | 24 | 24 |
| Compression Set% (150℃×70h) | GB/T 7759.1 | 56 | 30 | 47 | 63 |
| Hot Air Aging | 175℃×72h | 175℃×72h | 190℃×72h | 175℃×72h | |
| Hardness Change, Shore A | GB/T 3512 | +9 | +10 | +6 | =12 |
| Tensile Strength Change Rate，% | GB/T 3512 | -19 | -21 | -20 | -33 |
| Elongation at Break Change Rate，% | GB/T 3512 | -15 | -18 | -13 | ·25 |
| Resistance to 901# Oil | 150℃×72h | ||||
| Hardness Change, Shore A | GB/T 1690 | 1 | 4 | 1 | -3 |
| Volume Change，% | GB/T 1690 | -2.0 | 3.5 | -3.2 | 7.8 |
| Resistance to 903# Oil | 150℃×72h | ||||
| Hardness Change, Shore A | GB/T 1690 | -13 | -15 | -12 | -20 |
| Volume Change，% | GB/T 1690 | 19.7 | 21.5 | 14.5 | 31.5 |
| Low-Temperature Properties, Tg (℃) | GB/T 29611 | -28 | ·25 | -27 | Below -40°C |
