LT903

HG/T 3035 Water Discharge Rubber Hose

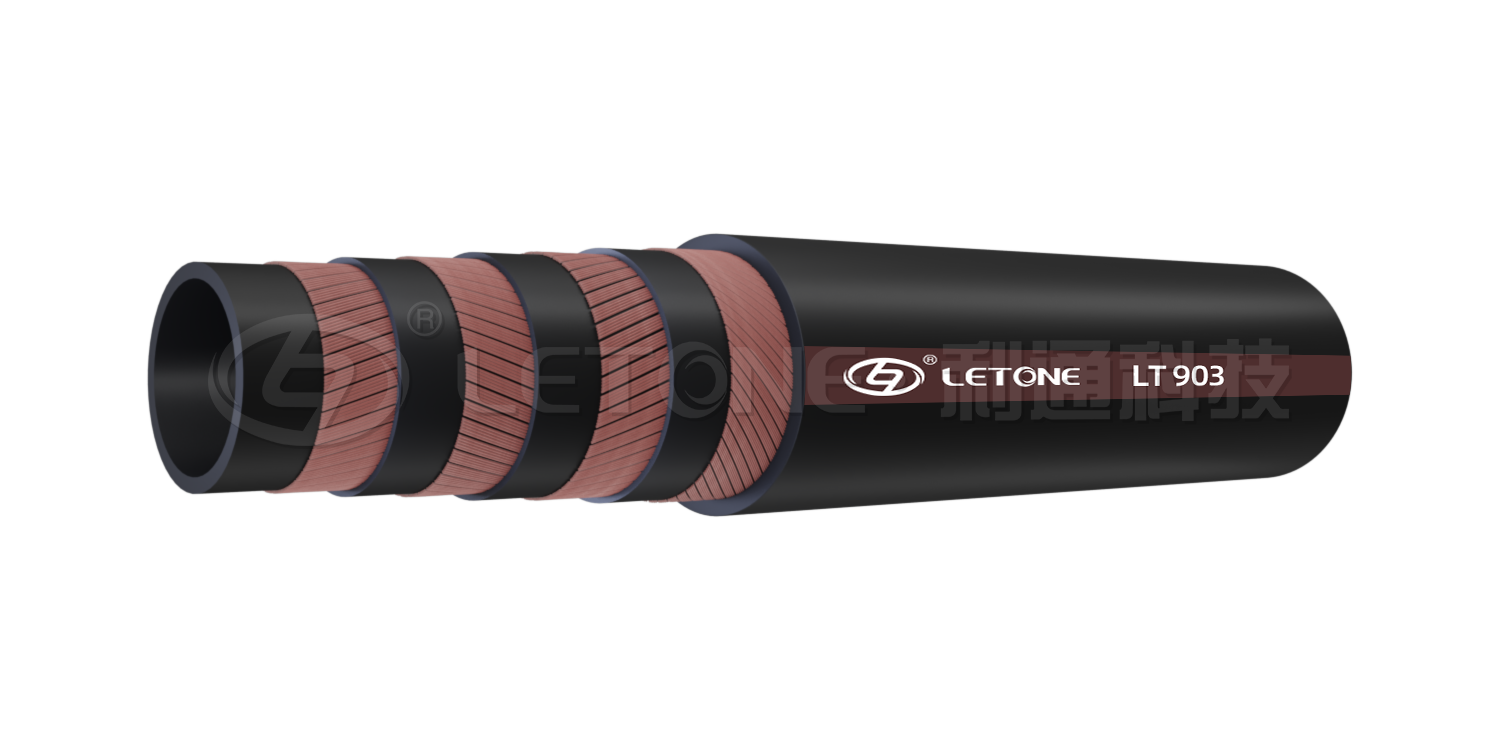

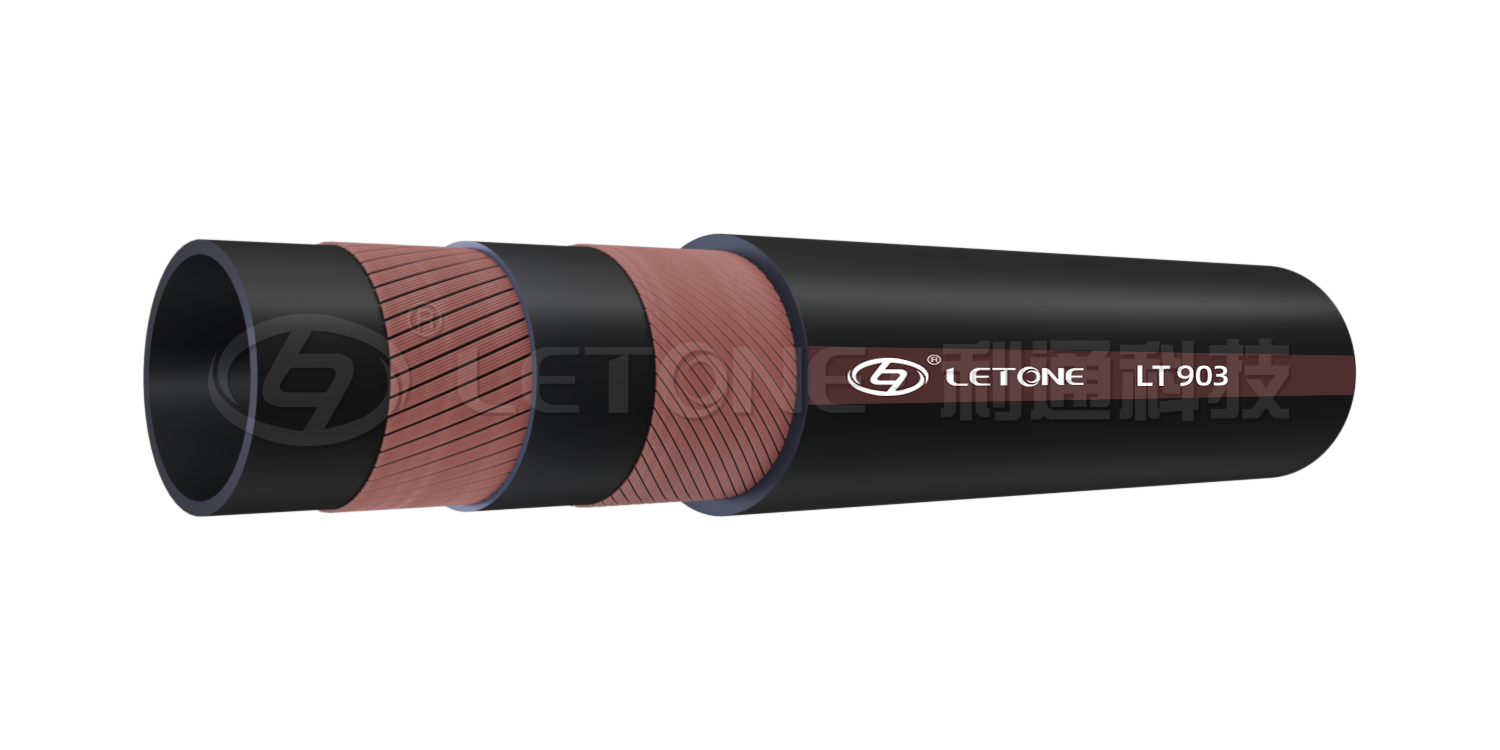

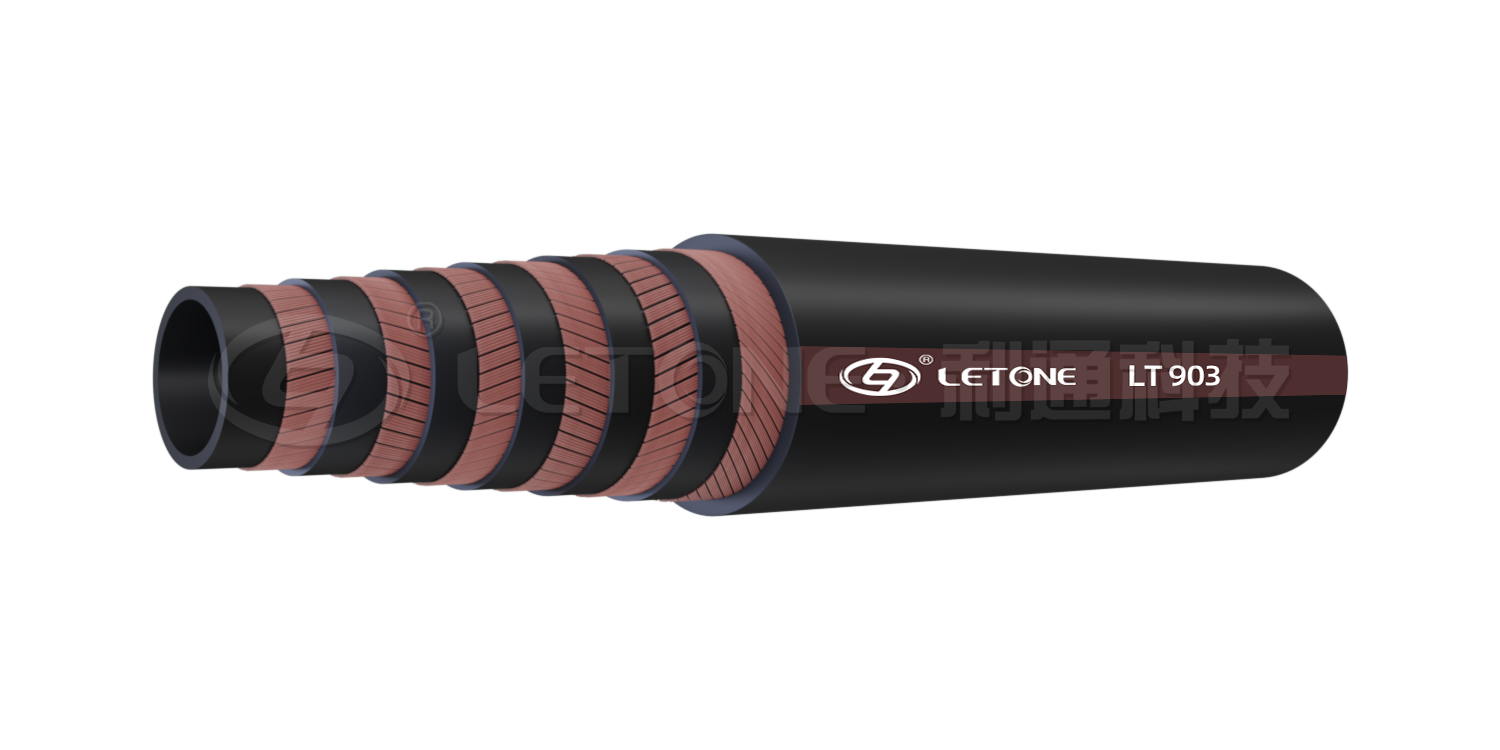

Hose Construction
Inner Tube: Black EPDM or NR&SBR synthetic rubber (UPE layer is available)
Reinforcement: Multi-spiral high tensile synthetic fibers
Outer Layer: Oil,abrasion resistant,anti-aging black,gray or blue NBR or PVC synthetic rubber
Temperature Range: -30°C〜82°C (-22°F~180°F)
*The hose dimension,pressure and color can be customized based on the requirements.
Application: Designed for the general use of construction,agriculture,and other industrial applications

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Parameter

I.D		O.D		W.P	Min.B.P	W.T
in	mm	in	mm	psi	psi	kg/m
2	51	2.40	61	45	113	1.40
2.5	64	2.91	74	45	113	2.10
3	76	3.43	87	45	113	2.45
4	102	4.57	116	45	113	4.35
5	127	5.51	140	45	113	6.20
6	152	6.46	164	45	113	6.75
8	203	8.82	224	45	113	14.75
10	254	10.94	278	45	113	19.75
2	51	2.40	61	75	188	1.40
2.5	64	2.91	74	75	188	2.10
3	76	3.43	87	75	188	2.45
4	102	4.57	116	75	188	4.35
5	127	5.51	140	75	188	6.20
6	152	6.46	164	75	188	6.75
8	203	8.82	224	75	188	14.75
10	254	10.94	278	75	188	19.75
2	51	2.48	63	150	375	1.50
2.5	64	2.99	76	150	375	2.20
3	76	3.50	89	150	375	2.55
4	102	4.65	118	150	375	4.45
5	127	5.59	142	150	375	6.30
6	152	6.54	166	150	375	6.85
8	203	8.90	226	150	375	14.85
10	254	11.02	280	150	375	19.85

Note: The actual parameters are subject to the final atlas
