LT794

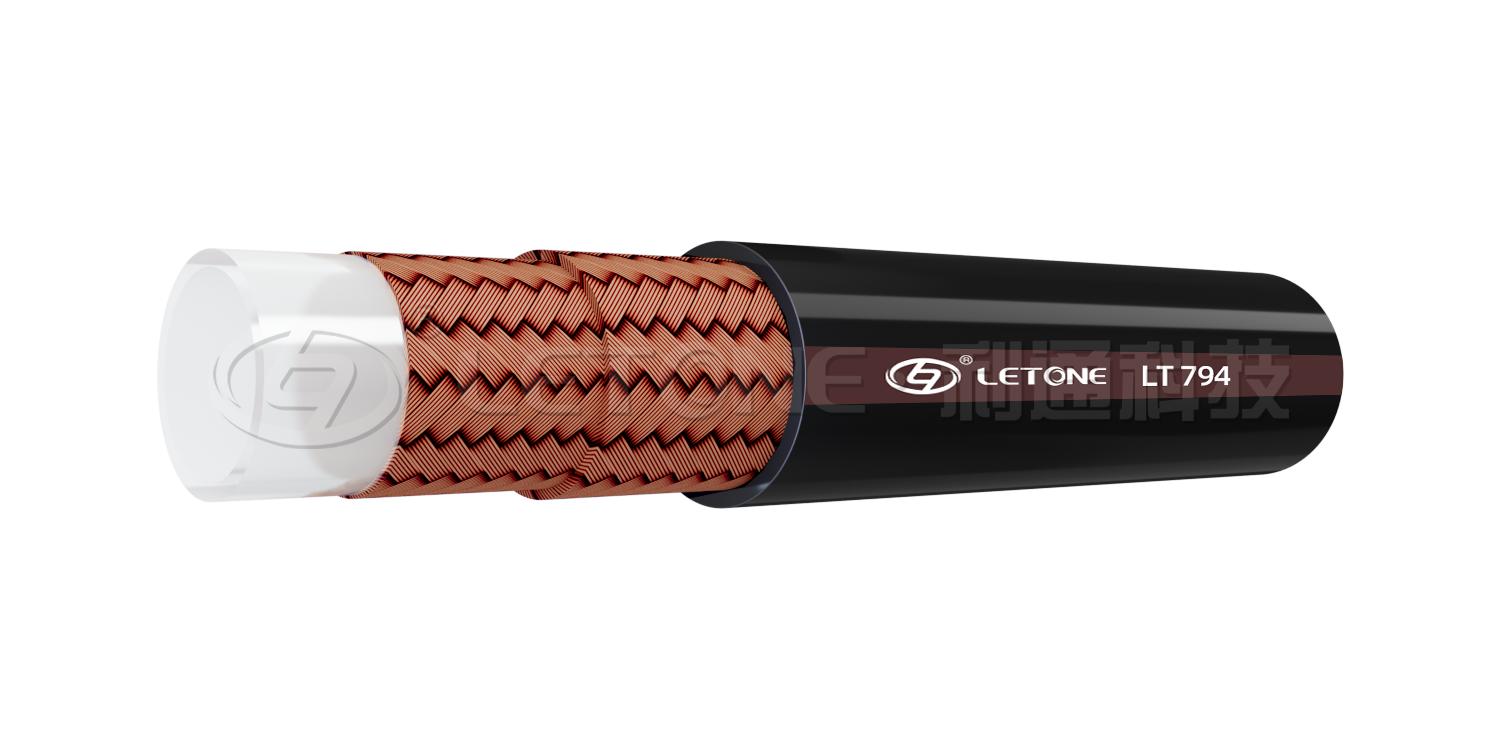

SAE 100R8 Aramid Fiber Braid High Pressure Thermoplastic Hose

Hose Construction
Inner Tube: Nylon
Reinforcement: One or two braids of aramid fiber
Outer Layer: Polyurethane
Temperature Range: -40°C ~ +100°C (-40°F ~ +212°F)
Application: Suitable to transfer petroleum and water hydraulic oil,which could be used as lubrication lines and blowout preventer lines,etc,widely apply to hydraulic lifts,agricultural machines and construction machines

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Parameter

SIZE		I.D	O.D	Max.W.P		Min.B.P		Min.B.R
DASH	IN	mm	mm	MPa	psi	MPa	psi	mm
-3	3/16-2	4.8	10.3	35	5070	140	20280	35
-4	1/4-2	6.3	12.3	37.5	5440	150	21760	40
-5	5/16-2	7.9	14.3	32.5	4710	130	18840	45
-6	3/8-2	9.5	16.7	28	4060	112	16240	60
-8	1/2-2	12.7	22.5	35	5070	140	20280	80
-10	5/8-2	15.9	24.5	22.5	3260	90	13040	120
-12	3/4-2	19	28	17.5	2540	70	10160	140
-16	1-2	25.4	34	15	2170	60	8680	160

Note: The actual parameters are subject to the final atlas
