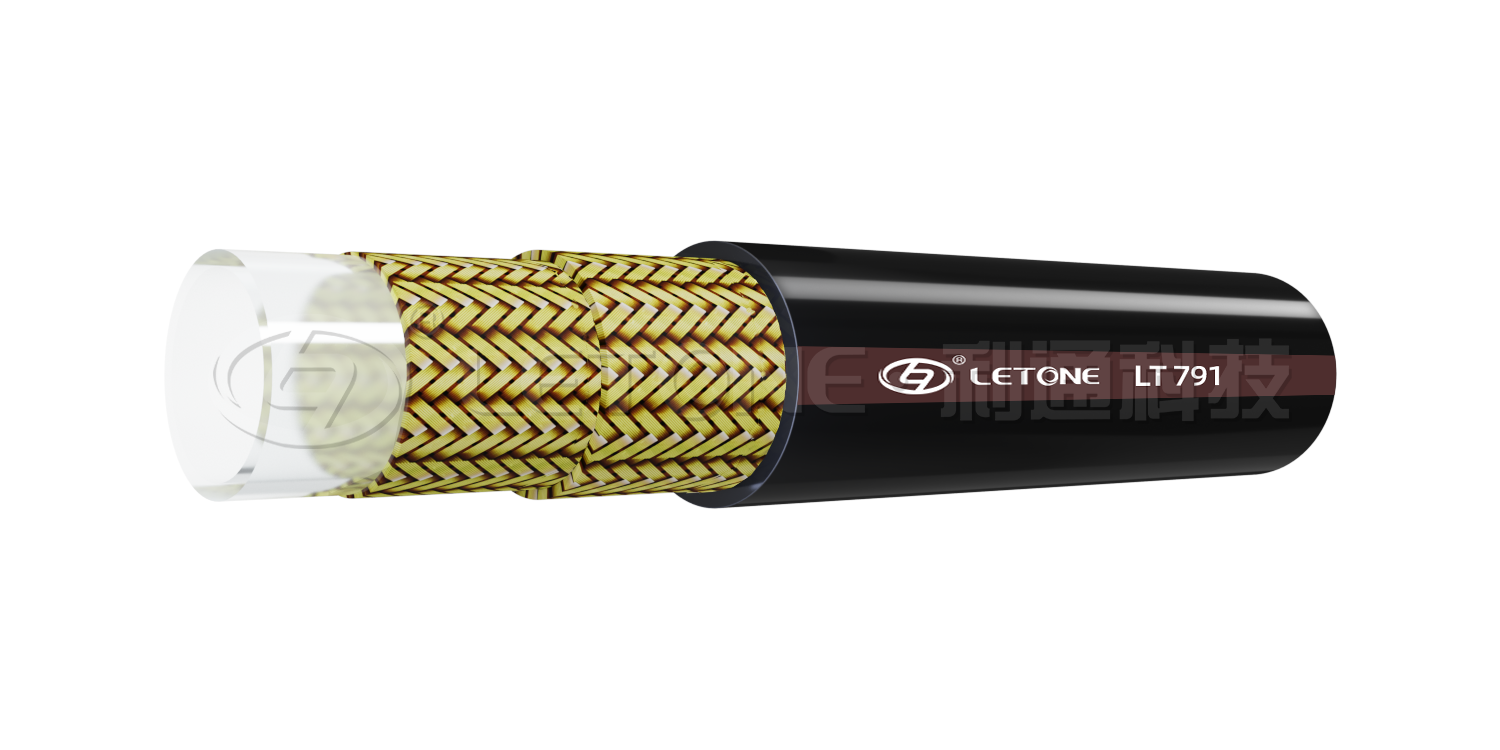

SAE 100R7 Wire Braid High Pressure Thermoplastic Hose
24 Hours Service Hotline
+86-0371-55157686
| SIZE | I.D. | O.D. | Max.W.P. | Min.B.P. | MIN.B.R. | |||
| Dash | In. | mm | mm | MPa | psi | MPa | psi | mm |
| -3 | 3/16-1 | 4.8 | 9.8 | 35 | 5070 | 140 | 20280 | 30 |
| -4 | 1/4-1 | 6.3 | 12.7 | 27.5 | 3990 | 110 | 15960 | 40 |
| -5 | 5/16-1 | 7.9 | 14.3 | 25 | 3620 | 100 | 14480 | 55 |
| -6 | 3/8-1 | 9.5 | 15.9 | 22.5 | 3260 | 63.6 | 13040 | 65 |
| -8 | 1/2-1 | 12.7 | 19.8 | 17.5 | 2540 | 70 | 10160 | 85 |
| -10 | 5/8-1 | 15.9 | 23.3 | 14 | 2030 | 56 | 8120 | 115 |
| -12 | 3/4-1 | 19 | 26.5 | 12 | 1740 | 48 | 6960 | 140 |
| -16 | 1-1 | 25.4 | 34 | 10 | 1450 | 40 | 5800 | 180 |
| -4 | 1/4-2 | 6.3 | 13.3 | 35 | 5070 | 140 | 20280 | 40 |
| -5 | 5/16-2 | 7.9 | 14.9 | 32.5 | 4710 | 130 | 18840 | 50 |
| -6 | 3/8-2 | 9.5 | 16.7 | 29 | 4200 | 116 | 16800 | 70 |
| -8 | 1/2-2 | 12.7 | 19.8 | 26 | 3770 | 104 | 15080 | 80 |
| -10 | 5/8-2 | 15.9 | 23.3 | 20 | 2900 | 80 | 11600 | 130 |
| -12 | 3/4-2 | 19 | 26 | 17.5 | 2540 | 70 | 10160 | 160 |
| -16 | 1-2 | 25.4 | 33 | 12 | 1740 | 48 | 6960 | 220 |
Note: The actual parameters are subject to the final atlas
