BSP Female 60°Cone Double Hexagon
24 Hours Service Hotline
+86-0371-55157686

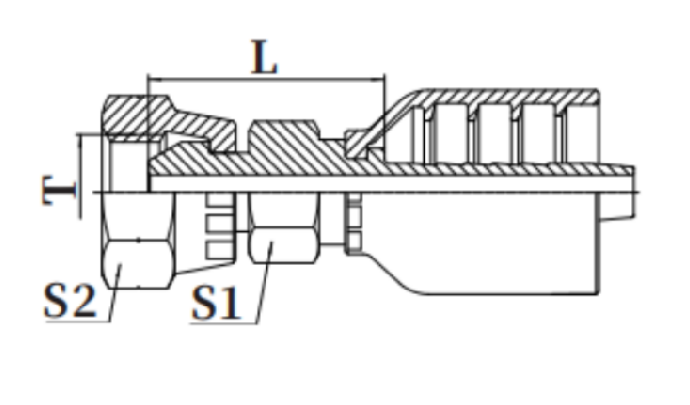

| PART NO. | THREAD T | HOSE BORE | DIMENSIONS | |||
| DN | DASH | L | S1 | S2 | ||
| 22611D-04-04SMRW | G1/4 " X19 | 6 | 04 | 23 | 14 | 19 |
| 22611D-06-06SMRW | G3/8 " X19 | 10 | 06 | 25 | 17 | 22 |
| 22611D-08-08SMRW | G1/2 " X14 | 13 | 08 | 28.5 | 22 | 27 |
| 22611D-10-08SMRW | G5/8 " X14 | 13 | 08 | 30 | 22 | 30 |
| 22611D-12-08SMRW | G3/4 " X14 | 13 | 08 | 31.5 | 27 | 32 |
| 22611D-12-12SMRW | G3/4 " X14 | 19 | 12 | 32.5 | 27 | 32 |
| 22611D-16-16SMRW | G1 " X11 | 25 | 16 | 36.3 | 32 | 41 |
| 22611D-20-20SMRW | G1. 1/4 " X11 | 32 | 20 | 41.5 | 41 | 50 |
20611D-RW Metric Female 60° Cone Double Hexagon
Metric Internal Thread60° conical double hexagon
22611-ORRW BSP Female 60°Cone with O-Ring
BSP Female 60℃one with O-Ring
12611A-RW BSP Male 60°Cone Seat
BSP Male 60°Cone Seat
22691K-RW90°BSP Compact Female 60°Cone
90°BSP Compact Female 60°Cone
22611D-SMRW BSP Female 60°Cone Double Hexagon
BSP Female 60°Cone Double Hexagon
