Metric Internal Thread60° conical double hexagon
24 Hours Service Hotline
+86-0371-55157686

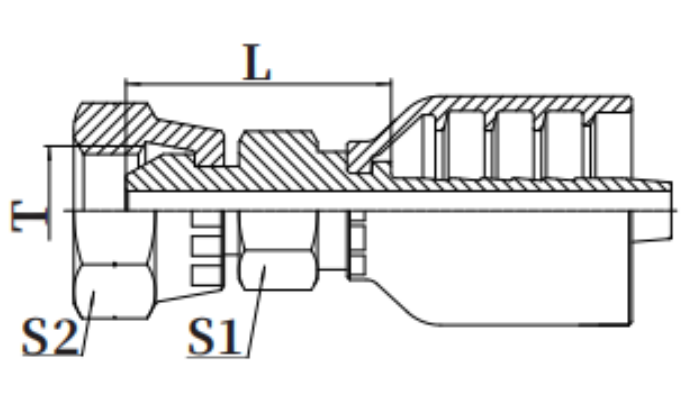

| PART NO. | THREAD T | HOSE BORE | DIMENSIONS | |||
| PART NO. | THREAD T | DN | DASH | L | S1 | S2 |
| 20611D-14-04RW | M14X1.5 | 6 | 04 | 23.5 | 19 | 19 |
| 20611D-14-06RW | M14X1.5 | 10 | 06 | 23.5 | 19 | 19 |
| 20611D-16-04RW | M16X1.5 | 6 | 04 | 26.5 | 22 | 22 |
| 20611D-16-05RW | M16X1.5 | 8 | 05 | 26.5 | 22 | 22 |
| 20611D-18-06RW | M18X1.5 | 10 | 06 | 31.0 | 24 | 24 |
| 20611D-22-06RW | M22X1.5 | 10 | 06 | 31.0 | 27 | 27 |
| 20611D-22-08RW | M22X1.5 | 12 | 08 | 31.0 | 27 | 27 |
| 20611D-26-10RW | M26X1.5 | 16 | 10 | 32.0 | 32 | 32 |
| 20611D-30-12RW | M30X2 | 20 | 12 | 34.0 | 36 | 36 |
| 20611D-36-16RW | M36X2 | 25 | 16 | 36.0 | 41 | 41 |
Note: 1. The codes in the table are used for braided hoses; 2. If it is to be used for winding hoses, the code should be changed to 20612D-XX-XXRW.
20611D-SMRW Metric Female 60° Cone Double Hexagon
Metric Internal Thread60° outer conical surface double hexagon
20611-RW Metric Female 60° Cone Seat
Metric Internal Thread60° conical surface
20611D-RW Metric Female 60° Cone Double Hexagon
Metric Internal Thread60° conical double hexagon
20641-RW 45° Metric Female 60° Cone Seat
45° ElbowMetric Internal Thread60° conical surface
20691-RW 90° Metric Female 60° Cone Seat
90° ElbowMetric Internal Thread60° conical surface
