45° ElbowMetric Internal Thread60° conical surface
24 Hours Service Hotline
+86-0371-55157686
| PART NO. | THREAD T | HOSE BORE | DIMENSIONS | |||
| PART NO. | THREAD T | DN | DASH | L | H | S1 |
| 20641-14-04RW | M14X1.5 | 6 | 04 | 38.8 | 15 | 19 |
| 20641-16-05RW | M16X1.5 | 8 | 05 | 44 | 18 | 22 |
| 20641-18-06RW | M18X1.5 | 10 | 06 | 44 | 18 | 22 |
| 20641-22-06RW | M22X1.5 | 10 | 06 | 51.3 | 20 | 22 |
| 20641-22-08RW | M22X1.5 | 13 | 08 | 51.3 | 20 | 27 |
| 20641-26-08RW | M26X1.5 | 13 | 08 | 64.2 | 25 | 30 |
| 20641-26-10RW | M26X1.5 | 16 | 10 | 64.2 | 25 | 30 |
| 20641-30-10RW | M30X2 | 16 | 10 | 71.7 | 29 | 32 |
| 20641-30-12RW | M30X2 | 19 | 12 | 71.7 | 29 | 32 |
| 20641-36-16RW | M36X2 | 25 | 16 | 84.4 | 35 | 41 |
Note: 1. The codes in the table are used for braided hoses; 2. If it is to be used for winding hoses, the code should be changed to 20642-XX-XXRW.
10611-RW Metric Male 60° Cone Seat
Metric External Thread60° conical surface

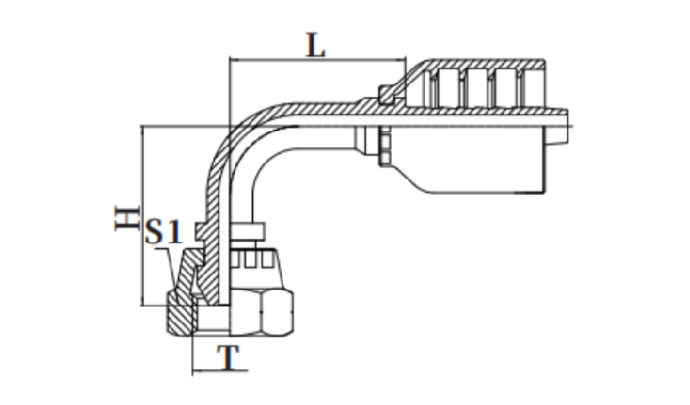

22691-RW 90°BSP Female 60°Cone
90° Elbow BSP Internal Thread 60° Male Cone

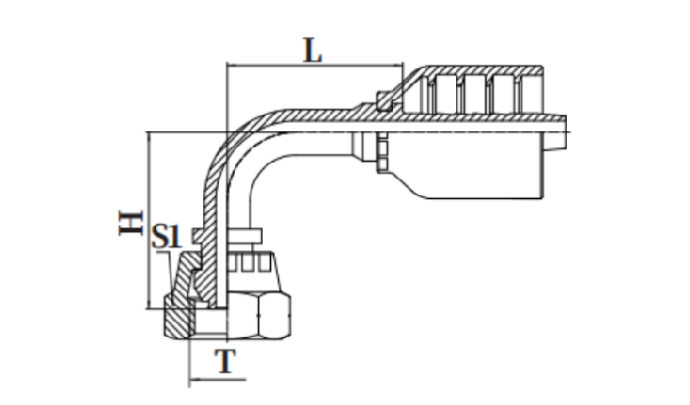

22691-ORRW 90°BSP Female 60°Cone with O-Ring
90° Elbow BSP Internal Thread 60° Male Cone with O-Ring

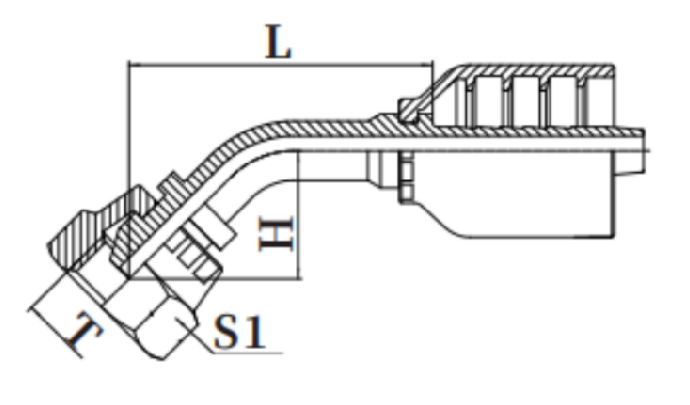

22641-RW 45°BSP Female 60°Cone
45° Elbow BSP Internal Thread 60° Male Cone

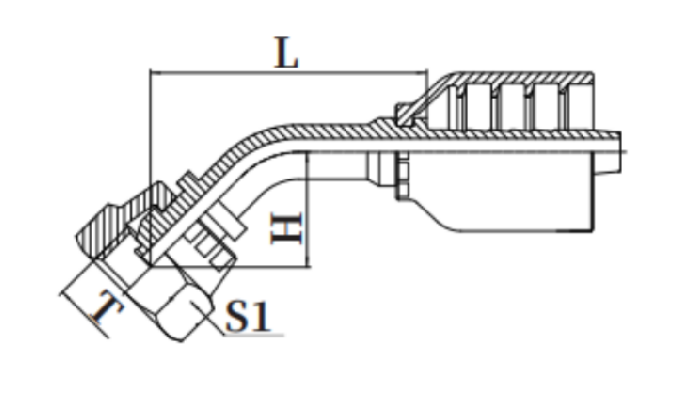

22641-ORRW 45°BSP Female 60°Cone with O-Ring
45°BSP Female 60°Cone with O-Ring
