Metric External Thread60° conical surface
24 Hours Service Hotline
+86-0371-55157686
| PART NO. | THREAD T | HOSE BORE | DIMENSIONS | ||
| PART NO. | THREAD T | DN | DASH | L | S1 |
| 10611-14-04RW | M14X1.5 | 6 | 04 | 23 | 19 |
| 10611 14-06RW | M14X1.5 | 10 | 06 | 22.5 | 19 |
| 10611-16-04RW | M16X1.5 | 6 | 04 | 26 | 22 |
| 10611-16-05RW | M16X1.5 | 8 | 05 | 26 | 22 |
| 10611-18-06RW | M18X1.5 | 10 | 06 | 25.5 | 24 |
| 10611-22-06RW | M22X1.5 | 10 | 06 | 29.5 | 27 |
| 10611-22-08RW | M22X1.5 | 12 | 08 | 30.5 | 27 |
| 10611-24 10RW | M24X1.5 | 16 | 10 | 31 | 30 |
| 10611-26-10RW | M26X1.5 | 16 | 10 | 34 | 32 |
| 10611-30-12RW | M30X2 | 20 | 12 | 35 | 36 |
| 10611-33-16RW | M33X2 | 25 | 16 | 42.2 | 46 |
| 10611-42-20RW | M42X2 | 32 | 20 | 44.2 | 50 |
| 10611-45-20RW | M45X2 | 32 | 20 | 44.2 | 55 |
| 10611-48-24RW | M48X2 | 40 | 24 | 45 | 55 |
| 10611-52-24RW | M52X2 | 40 | 24 | 45 | 60 |
Note: 1. The codes in the table are used for braided hoses; 2. If it is to be used for winding hoses, the code should be changed to 10612-XX-XXRW.
20611D-RW Metric Female 60° Cone Double Hexagon
Metric Internal Thread60° conical double hexagon
12611-RW BSP Male 60° Cone Seat
12611-RW BSP Male 60° Cone Seat

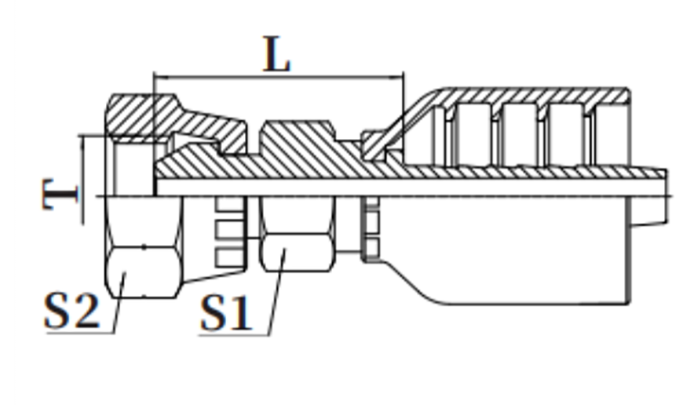

22611D-SMRW BSP Female 60°Cone Double Hexagon
BSP Female 60°Cone Double Hexagon

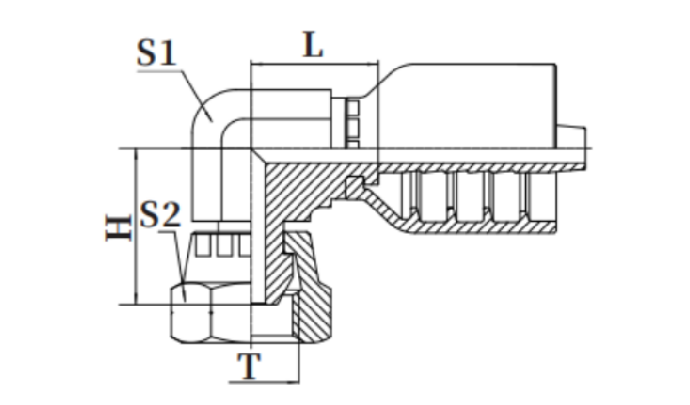

22691K-RW90°BSP Compact Female 60°Cone
90°BSP Compact Female 60°Cone

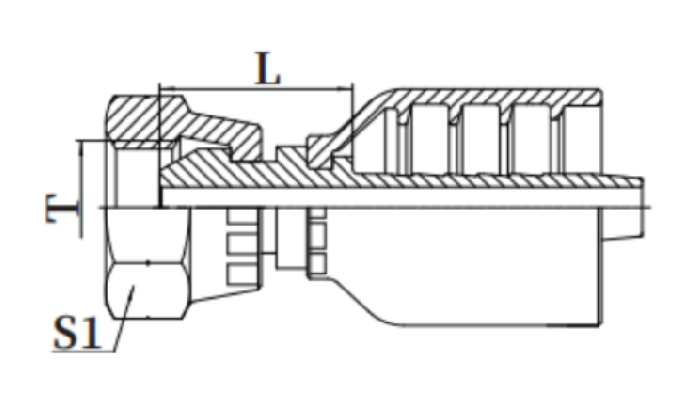

22611-RW BSP Female 60°Cone
BSP Female 60°Cone
