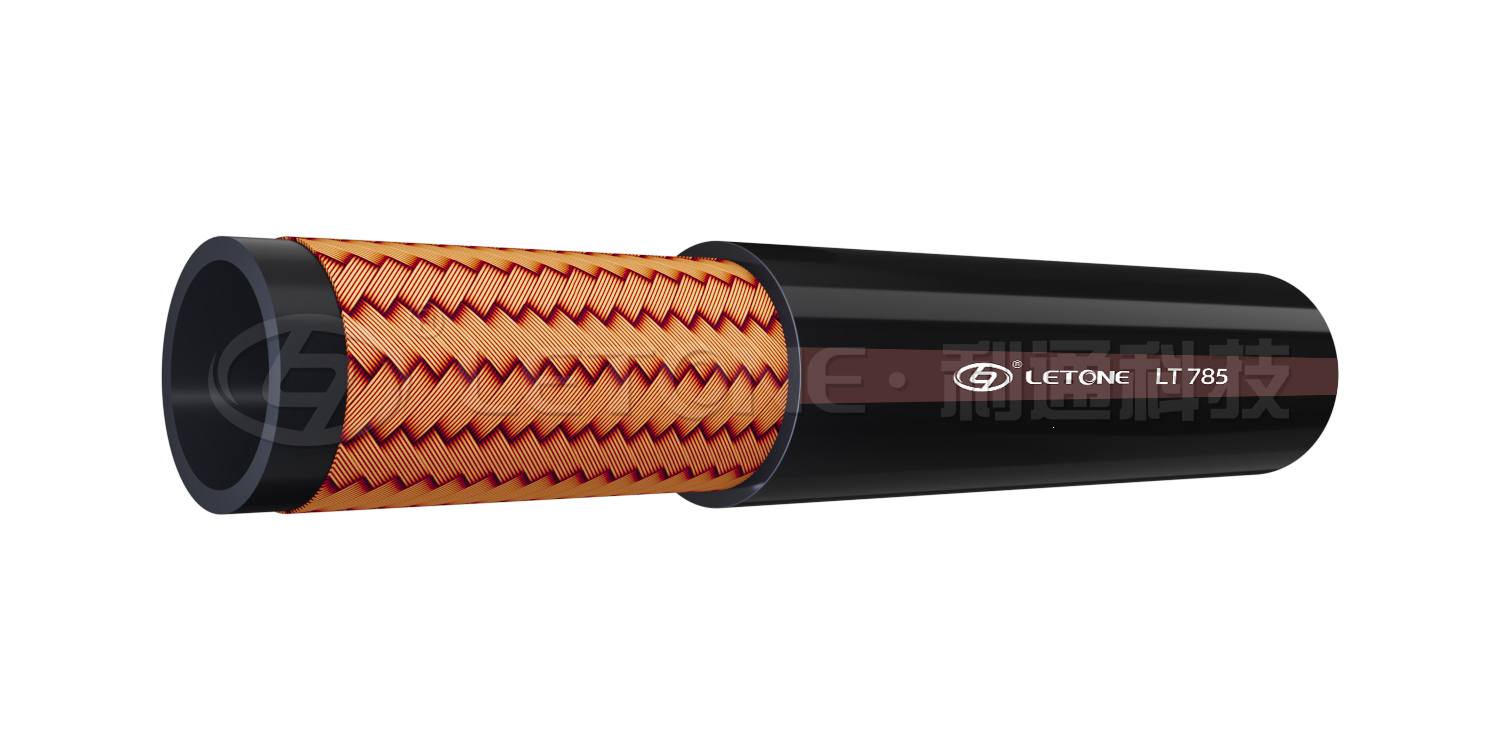

LT785
GB1186 COMPRESSED AIR HOSE
Application:Suitable to all kinds of power machinery and pneumatictools to convey compressed air water or noble gases under the normal temperature:

Inner Tube:black syntheticrubber:
Reinforcement:one ortwo braids oftextile:
Outer Layer:weather and abrasion resistant svnthetic rubber:
Temperature Range:-40°C~+70°C(-40F~+158F):
GB1186 COMPRESSED AIR HOSE
Parameter
SIZE SIZE I.D O.D Max.W.P Min.B.P W.T
DASH IN Min Max Min MPa MPa kg/m
-8  1/2 12.5 14 23 1 4 0.34
-10  5/8 15.5 17 26 1 4 0.4
-12  3/4 18.5 20 29 1 4 0.45
-16 1 24.5 26 35 1 4 0.48
-20 11/4 31.5 33 45 1 4 0.95
-24 11/2 37.5 39 52 1 4 1.25
-32 2 50 52.5 66 1 4 1.6
-8 1/2 12.5 14 23 2 8 0.34
-10  5/8 15.5 17 26 2 8 0.41
-12  3/4 18.5 20 29 2 8 0.46
-16 1 24.5 26 35 2 8 0.5
-20 11/4 31.5 33 45 2 8 0.97
-24 11/2 37.5 39 52 2 8 1.27
-32 2 50 52.5 66 2 8 1.7

Note: The actual parameters are subject to the final atlas
