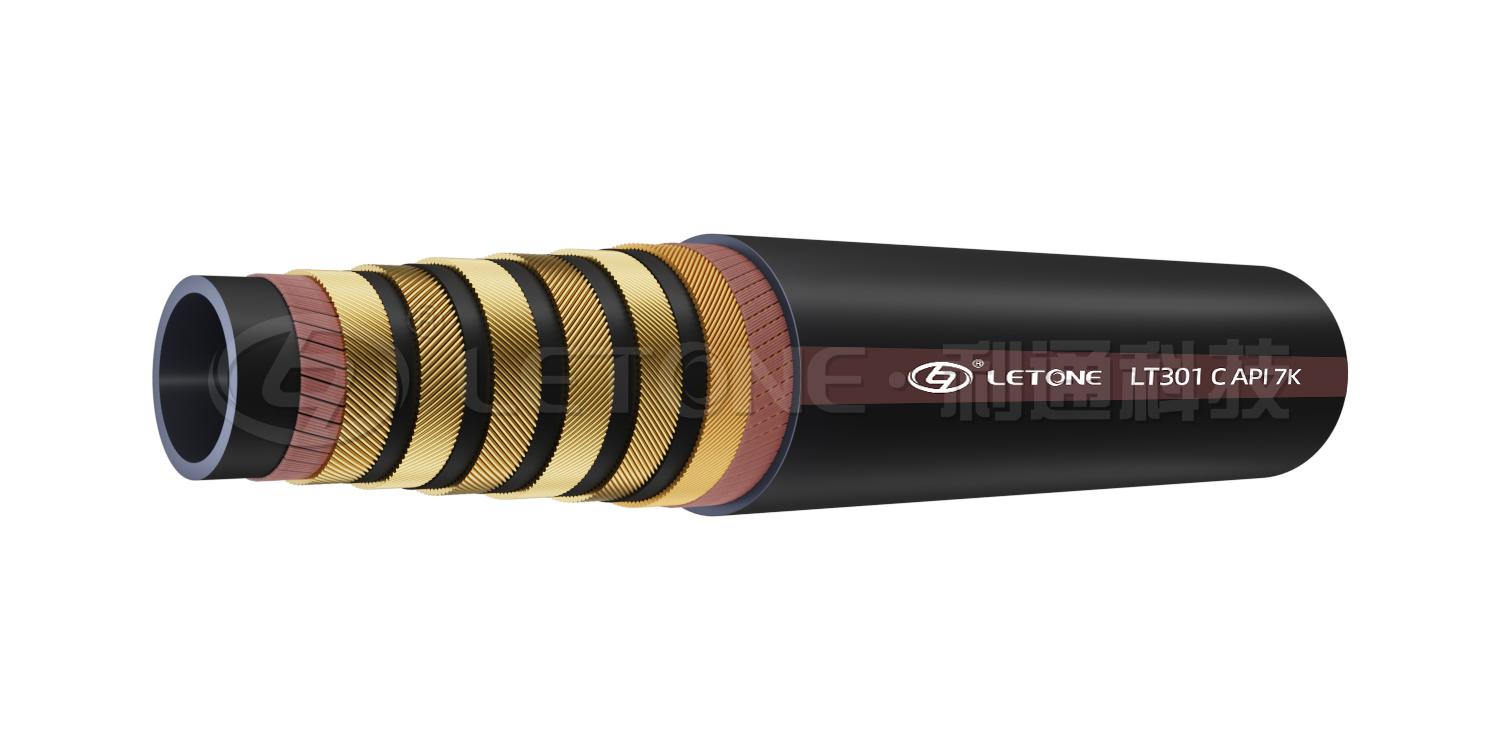

LT301

API 7K——High Pressure Cementing Hose

API 7K——High Pressure Cementing Hose

Application:flexible connection in the cementing manifold for delivery water-based and oil-based cement slurries at high pressure




Product Introduction

Tube:NR&SBRsythentic rubber/HNBR/UPE

Reinforcement:4 or 6 layers of high tensile super flexible spiral steel wire orsteel cable

Cover:abrasion and weather resistant synthetic rubber

Temperature range:-20°C~+82°C (-4°F~+179.6°F) -55°C〜+150°C (-67°F〜+302°F)

Standard:API Spec. 7K FSL0 | ABS

Connectors:integral union or integral flange

PRESSURE LEVEL I.D. O.D. W.P. P.P. Min.B.P. Min.B.R.
psi in. mm psi psi psi mm
10000 Grade E 2 79 10000 15000 22500 1000
2 1/2 98 10000 15000 22500 1000
3 117 10000 15000 22500 1400
3 1/2 137 10000 15000 22500 1400
4 156 10000 15000 22500 1600
15000 Grade E 2 98 15000 22500 33750 1200
3 129 15000 22500 33750 1500
