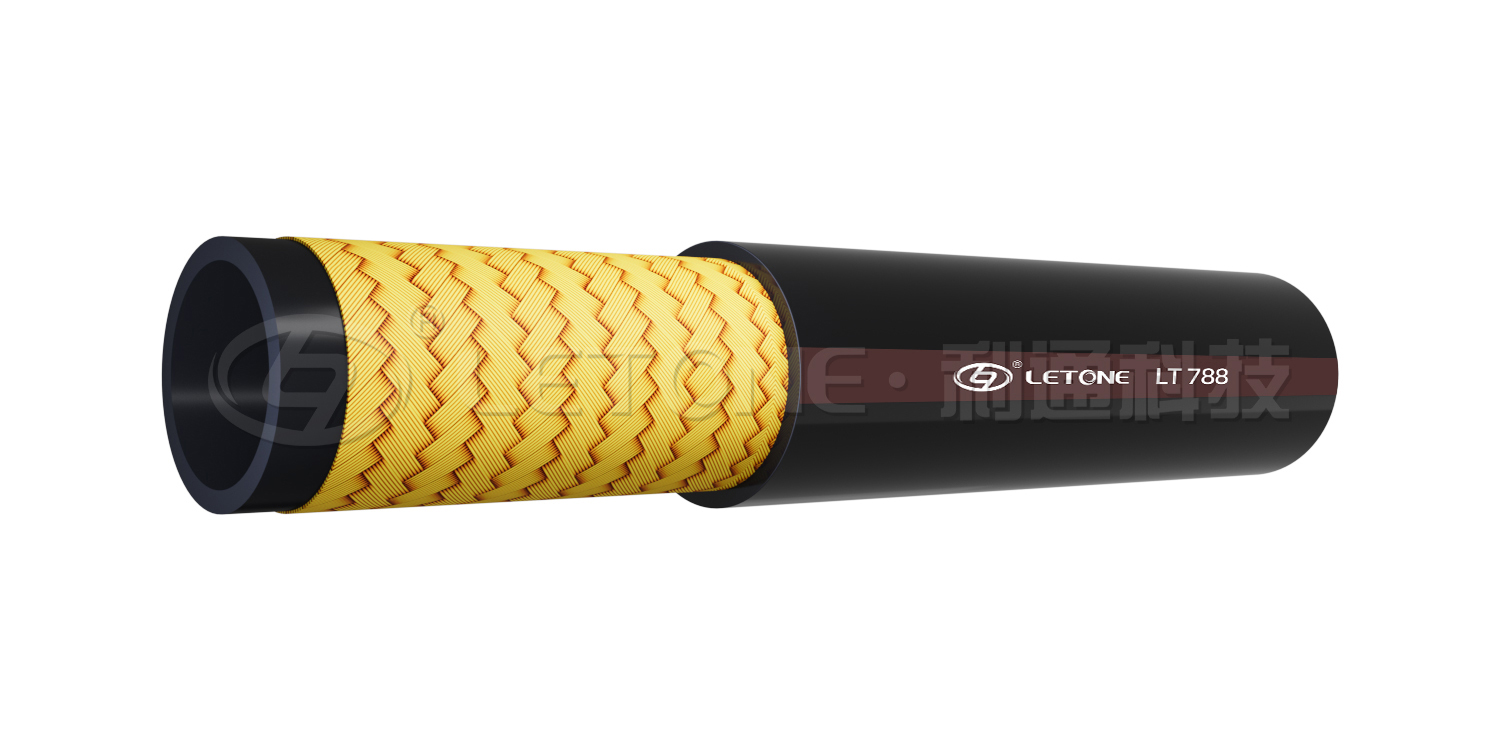

LT788
SAND BLASTLNG HOSE
Applications:Apply to industries like railway, shipbuilding, andconstruction to remove rust on the metalsurface.

Tube:Black abrasion resistant synthetic rubber ( UPE layer is available)
Reinforcement:Braided fiber or steel wire
Cover:Black weather and abrasion resistant synthetic rubber
Temperature range:-40 °C to +70 °C (-40 °F to +158 ° F)
SAND BLASTLNG HOSE
Parameter
SIZE SIZE I.D O.D Max.W.P P.P Min.B.P Min.B.R W.T
DASH IN Min Max Min Max Min   MPa Mpa mm kg/m
-10  5/8 15.5 16.7 28.2 29.8 1 2 4 105 0.98
-12  3/4 18.8 19.8 34.2 35.8 1 2 4 130 1.14
-16 1 24.8 25.8 42.8 45.2 1 2 4 150 1.5
-20 1 1/4 31.6 32.6 48.8 51.5 1 2 4 190 1.8
-24 1 1/2 37.7 38.8 57.5 60.5 1 2 4 240 2.1
-28 1 3/4 44.6 45.6 62.5 65.5 1 2 4 260 2.3
-32 2 50.7 52 69.5 72.5 1 2 4 300 2.75
-40 2 1/2 63.7 65.3 83.5 86.5 0.8 1.6 3.2 800 3.5
-48 3 75.5 77.3 100 104 0.8 1.6 3.2 920 4.5
-56 3 1/2 88.5 90.5 113 117 0.8 1.6 3.2 1100 5.5
-64 4 101.5 104 126 130 0.8 1.6 3.2 1300 6.5

Note: The actual parameters are subject to the final atlas
