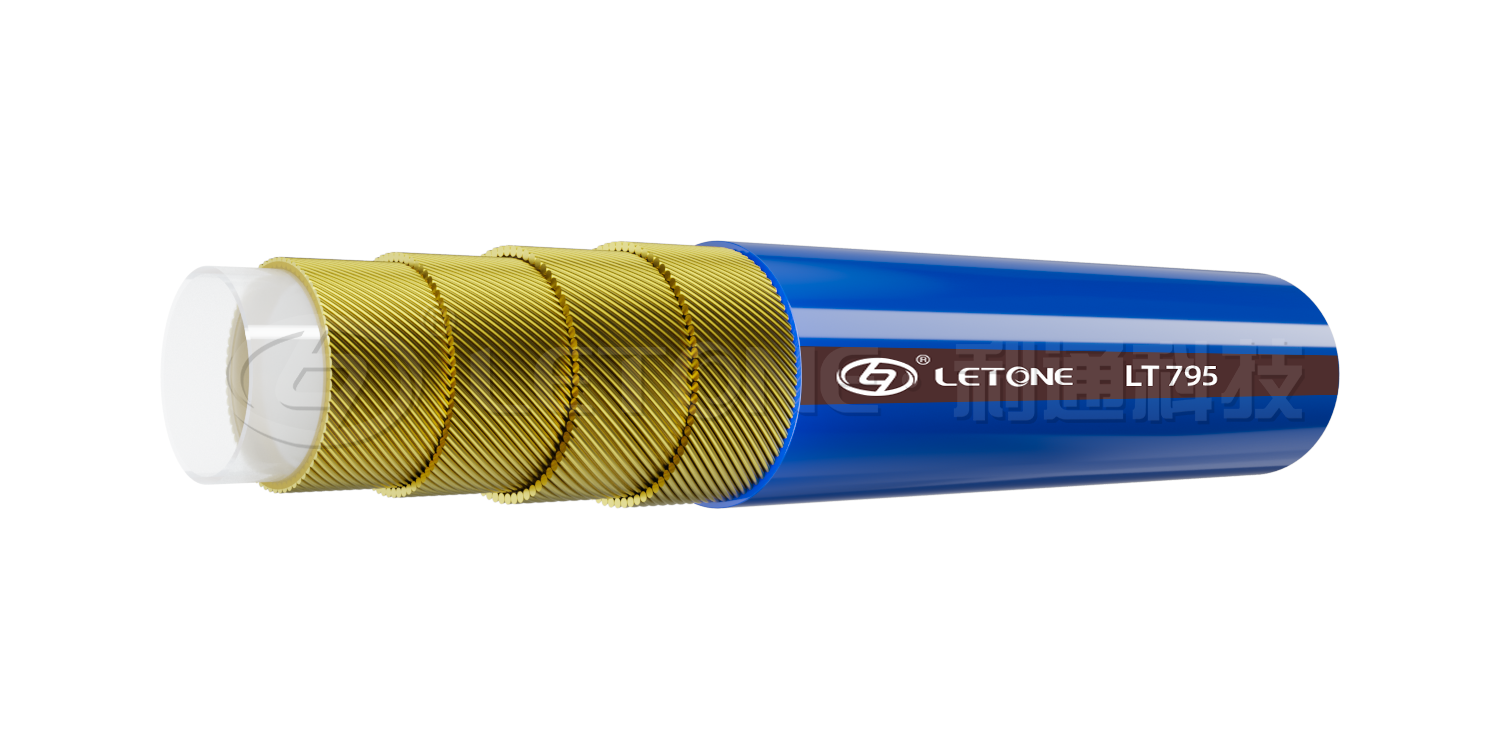

LT795
10000PSI ultra high pressure resin hose
Scope of application :suitable for conveying media such as water and hydraulic oil under high pressure, widely used in high-pressure cleaning and other industries

Pressure range: 690bar(10000psi)
Inner rubber layer: Nylon
Reinforcement layer: four layers of steel wire winding
Outer layer:black or colored polyurethane
10000PSI ultra high pressure resin hose
Parameter
Hose inner diameter I.D. Outer diameter of hose O.D. Working pressure W.P. Burst pressure W.P. Minimum bending radius MIN.B.P. Reference weight W.T.
Dash In. mm mm MPa psi MPa psi mm g/m
-4 1/4 6.3 12.5 69 10000 207 30000 110 255
-5 5/16 7.9 14.5 69 10000 207 30000 130 310
-6 3/8 9.5 17.2 69 10000 207 30000 150 375
-8 1/2 12.7 20.8 69 10000 207 30000 200 570
