SUPER ARTERY SERIES HOSE

Letone own brand Artery and Super Artery series hoses have long life (matching with Litong connectors, service life of more than 5 years, warranty of 2 years), low bending (bending radius less than 30% of the DIN/SAE standard), high pressure ( Exceeding the characteristics of DIN/SAE standard by 25%), it can fully meet the needs of various hydraulic machinery for light weight, high pressure and long life.

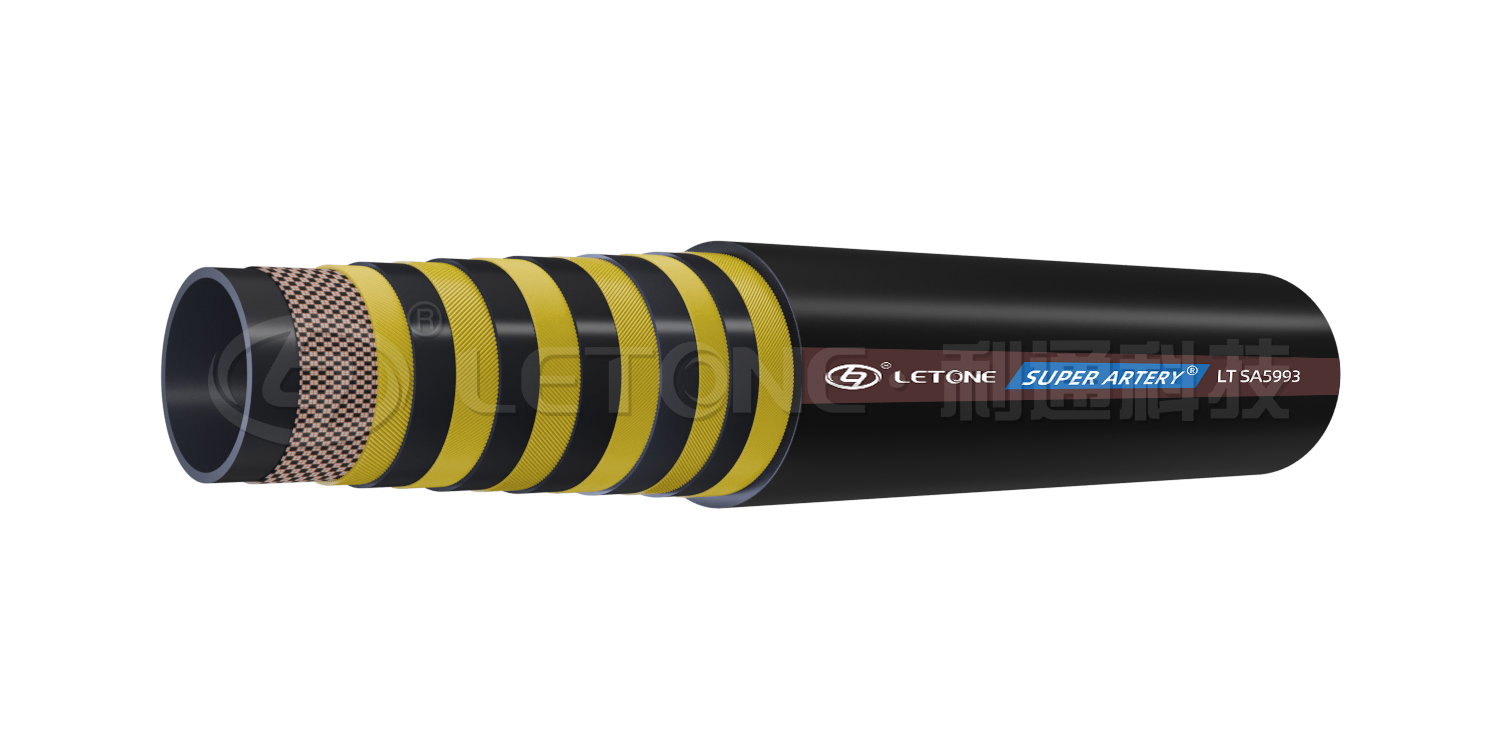

LT SA5993
Super Artery EXCEEDS ISO18752 DC
Inner rubber layer:NBR or CR synthetic rubber, suitable forbiodegradable hydraulic fluids.
Reinforcement:Four layers of steel wire winding (1/4"‒1"), pulse ≥1 million, six layers of steel wire winding (1 1/4"‒2"), pulse ≥1 million times
Outer layer:standard;abrasion, weather resistant synthetic rubber.
               AR cover: highly abrasion, weather resistant synthetic rubber.
               SAR cover: super abrasion,weather resistant UHMWPE.

Temperature range:-40°C to +121°C (-40°F to +250°F)

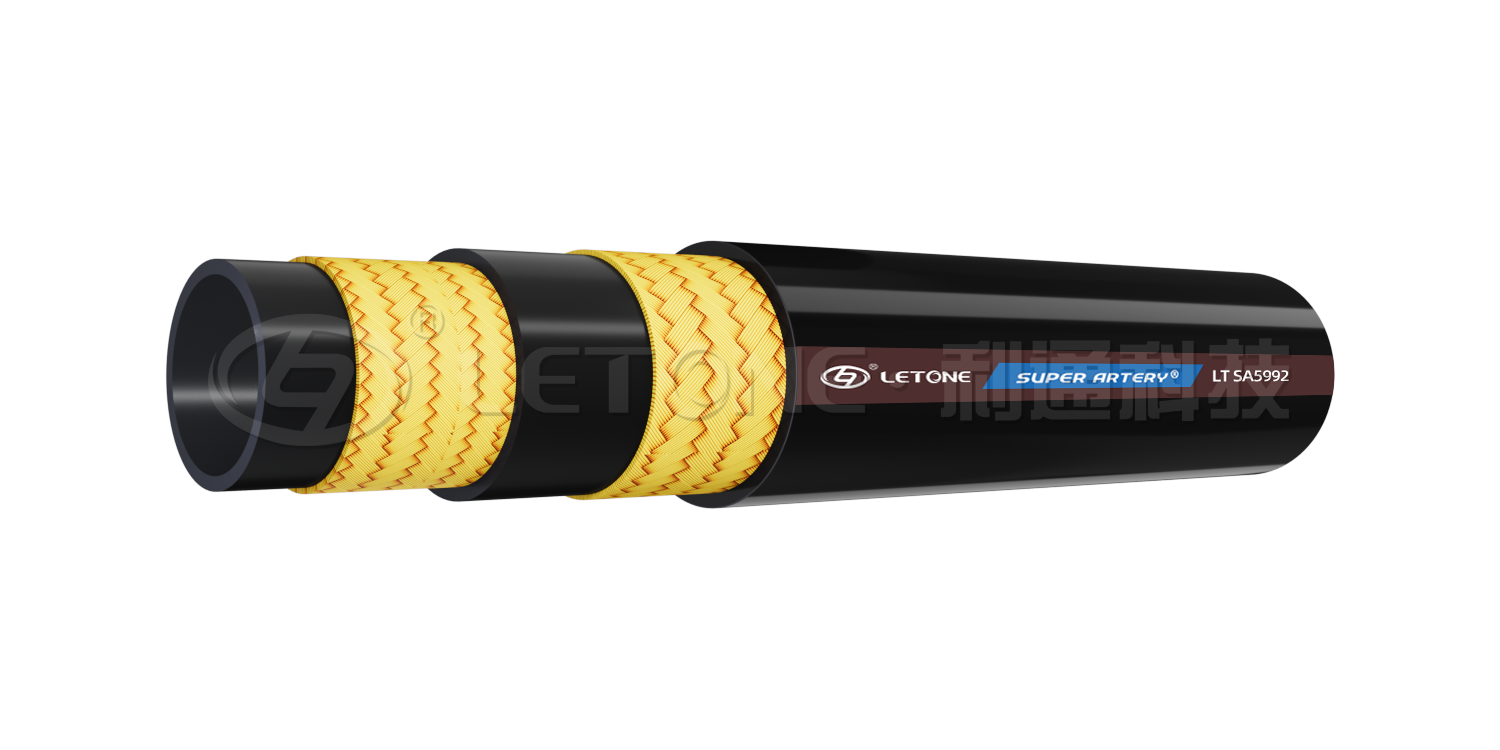

LT SA5992
Super Artery EXCEEDS ISO18752-BC/CC/DC
Inner rubber layer:NBR or CR synthetic rubber, suitable for biodegradable hydraulic fluids.
Reinforcement layer:two braids of high tensile steel wire (1/4"-5/16"), impulse2500,000 cycles.
               four plies of spiraled high tensile steel wire (3/8"-1 1/4"), impulse21,000,000 cycles.
               six plies of spiraled high tensile steel wire (1 1/2"-2"), impulse21,000,000 cycles.
Outer layer:standard:abrasion, weather resistant synthetic rubber.
              AR cover: highly abrasion, weather resistant synthetic rubber.
              SAR cover: super abrasion,weather resistant UHMWPE
Temperature range:-40C-+100C(-40F-+212°F)
              -40°C~+121°C(-40F-+250°F)

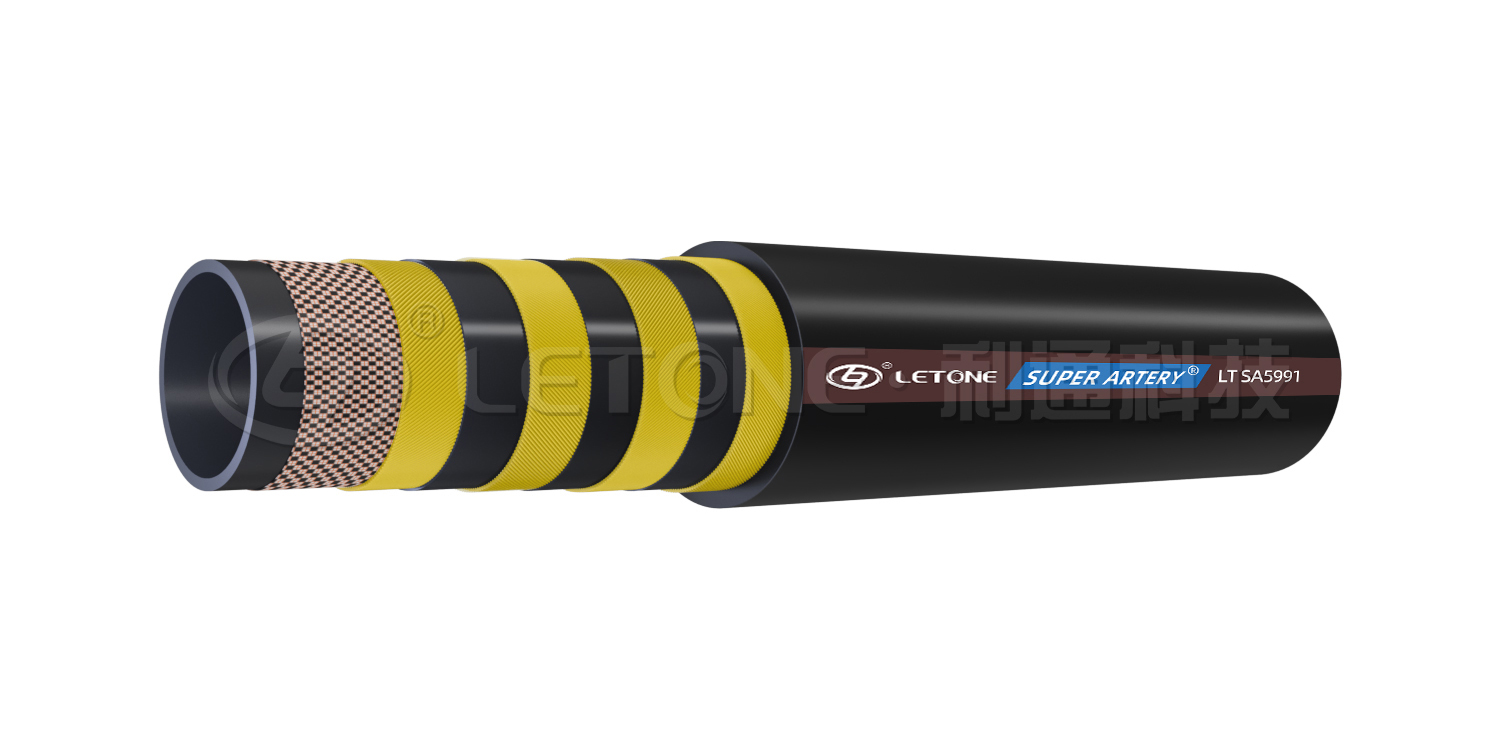

LT SA5991
Super Artery EXCEEDS ISO18752-BC/CC
Inner rubber layer:Nitrile or neoprene for biodegradable hydraulic fluids
Reinforcement layer:super-strong high-flex steel wire wound in four layers, pulse ≥ 1 million times
outer layer: standard:no-skive abrasion, weather resistant synthetic rubber.
            AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
            SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range:-40C~+100°C(-40F~+212°F)-40°C-+121C(-40F~+250°F)

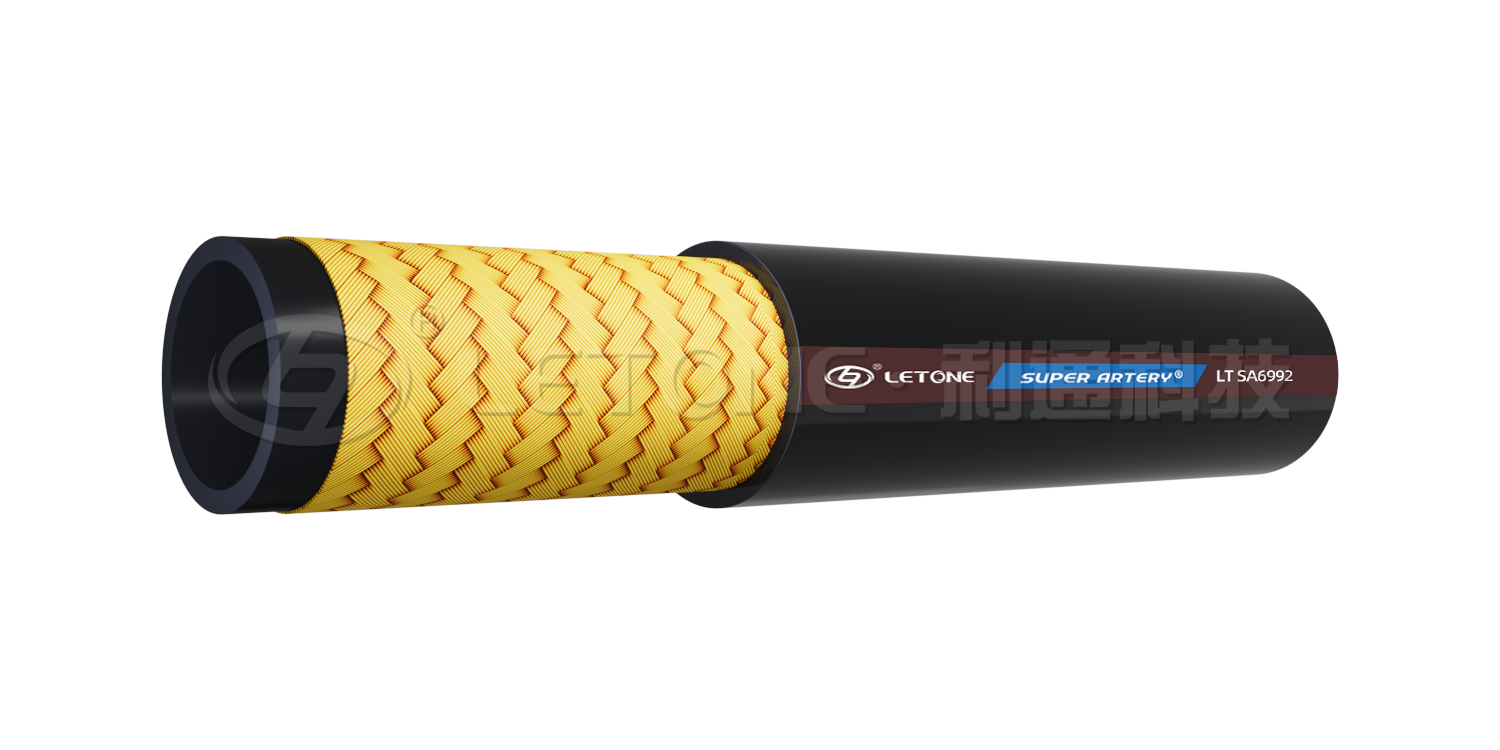

LT SA6992
Super Artery EXCEEDS ISO18752-AC/BC/CC
Inner rubber layer: NBR or CR synthetic rubber, suitable for biodegradablehydraulic fluids.
Reinforcement layer:one or two layers of steel wire weaving (1/4" ‒3/8"), pulse ≥300,000 times four layers of steel wire winding (1/2"‒2"), pulse ≥1 million times
Outer layer:standard: no-skive abrasion, weather resistant synthetic rubber.
              AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
              SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range:-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)
LT SA6991
Super Artery EXCEEDS ISO18752-BC/CC
Inner rubber layer: NBR or CR synthetic rubber, suitable for biodegradablehydraulic fluids.
Reinforcement layer:one or two layers of steel wire weaving (1/2" ‒3/4"), pulse ≥ 300,000 times, four layers of steel wire winding (1" ‒ 2"), pulse ≥ 1 million times
Outer layer:standard: no-skive abrasion, weather resistant synthetic rubber.
              AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
              SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range:-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)
LTSA599-FH
Super Artery super soft hose
Inner Layer:Oil resistant synthetic rubber
Reinforcement:4-layered high-strength super-flexible steel wire
Outer Layer:Wear-resistant, weather-resistant synthetic rubber (weather-resistant for 5 years, warranty for 3 years)
Characteristic:Low bending-bending radius is 50% lower than DIN EN853 standard; high-pressure-pressure is 30%~40% higher than DIN EN853 standard; long life.

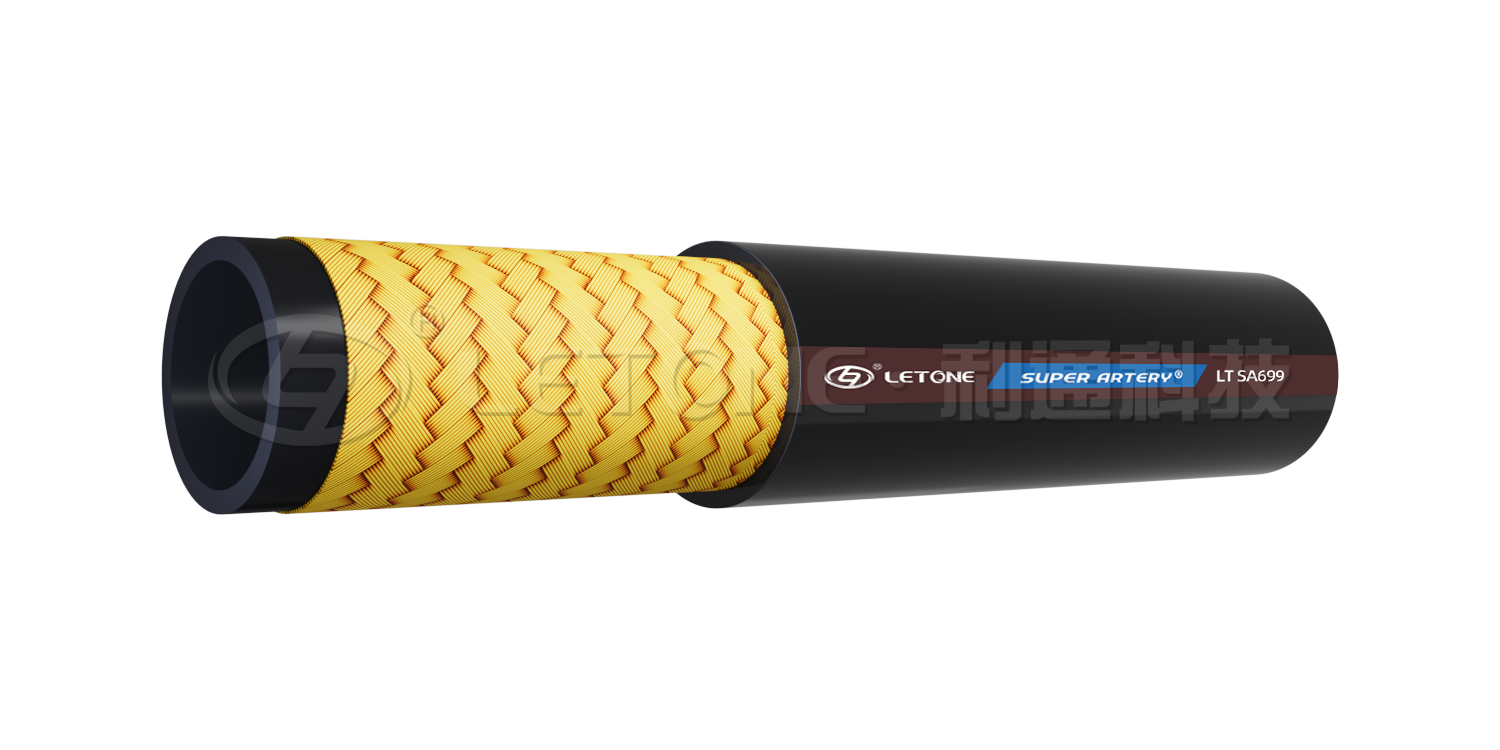

LTSA699
Super Artery wire braided hose
Tube:CR/NBR synthetic rubber
Reinforcement:braided high tensile super fexible steel wire, one braid impulse reaches 300,000 cycles, two braids reaches 600,000 cycles
OuterLayer:Black glossy anti-aging and non-peeling synthetic rubber layer
Low bending radius:30% lower than SAE/DIN standards
