API 16C——Flexible Choke And Kill Hose

API 16C——Flexible Choke And Kill Hose

Application:flexible connection in the chock and kill manifolds for delivery oil-gas mixture that containing hydrogen sulfide (H₂S) and other dangerous gases and various water-based, oil-based and foam killingfluids under high pressure

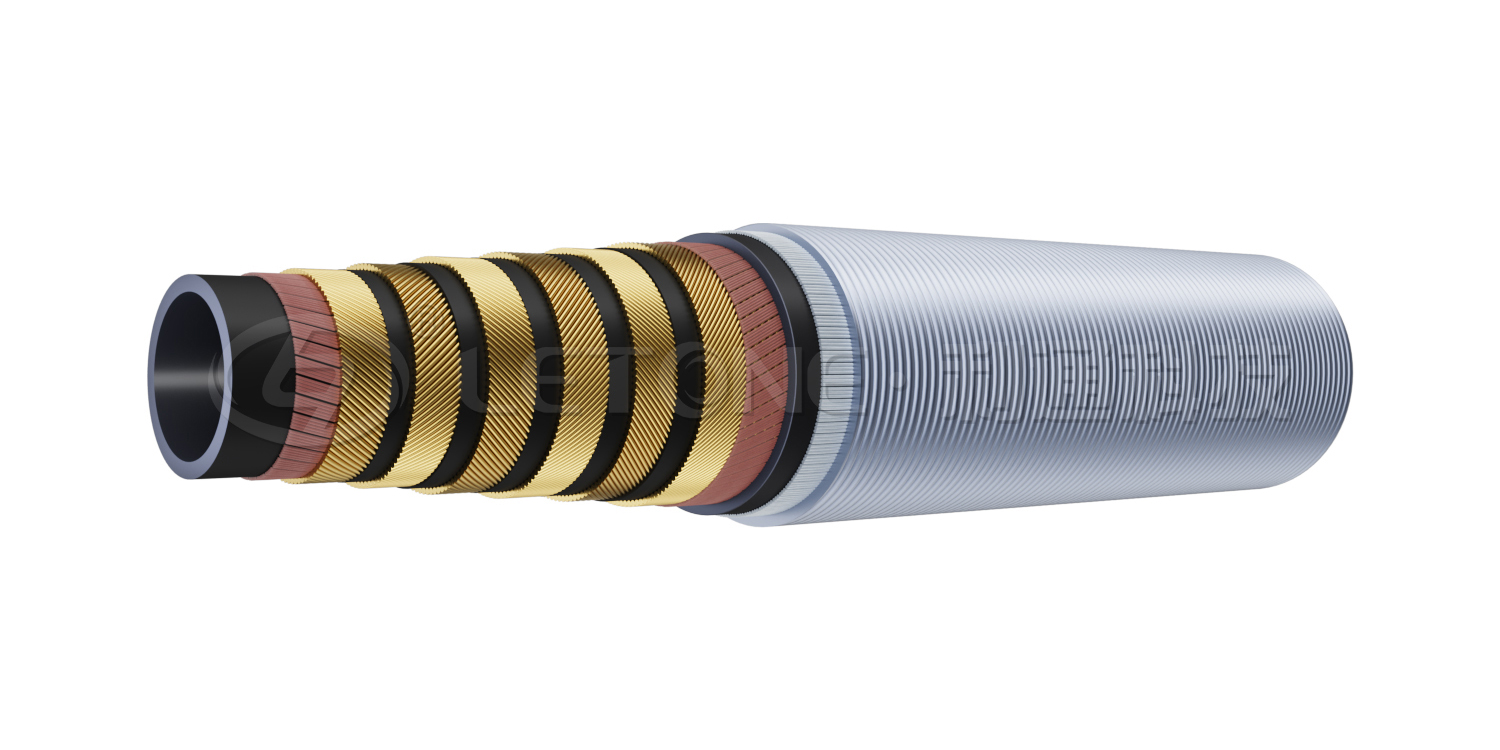

Product Introduction

Tube:HNBR

Reinforcement:4-6 layers of high tensile super flexible spiral steel wire or steel cable

Cover:high temperature and fire resistant synthetic rubber (resistant to 704 °C open fire for 30 minutes)

Protective Layer:stainless steel armor

Temperature Range:-55℃~+150℃(-67℉~+302℉)

Standard:API Spec. 16C FSL0 FSL1 FSL2 FSL3 | ABS

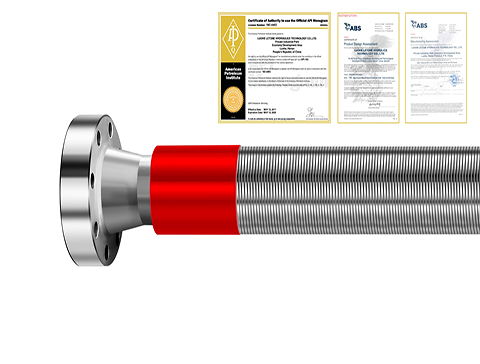

Connectors:integral union or integral flange

PRESSURE LEVEL I.D. 0.D. W.P. P.P. Min. B.P. Min.B.R.
psi in. mm psi psi psi mm
5000 2 95 5000 7500 11250 1000
3 126 5000 7500 11250 1200
4 163 5000 7500 11250 1400
5 193 5000 7500 11250 1600
7500 2 97 7500 11250 16875 1000
3 132 7500 11250 16875 1200
4 178 7500 11250 16875 1600
5 210 7500 11250 16875 1800
10000 2 105 10000 15000 22500 1200
3 123 10000 15000 22500 1600
3 1/2 160 10000 15000 22500 1600
4 180 10000 15000 22500 1800
15000 2 123 15000 22500 33750 1400
3 154 15000 22500 33750 1600
