STEEL WIRE SPIRAL HYDRAULIC HOSE

High pressure and pulse resistance and long service life, Letone steel wire spiral hydraulic hose fully meets the needs of high-end hose users such as heavy machinery and equipment manufacturers. Letone hydraulic hose is guaranteed for use in the construcion, mining, agriculture, oil & gas and other industries with high performance.

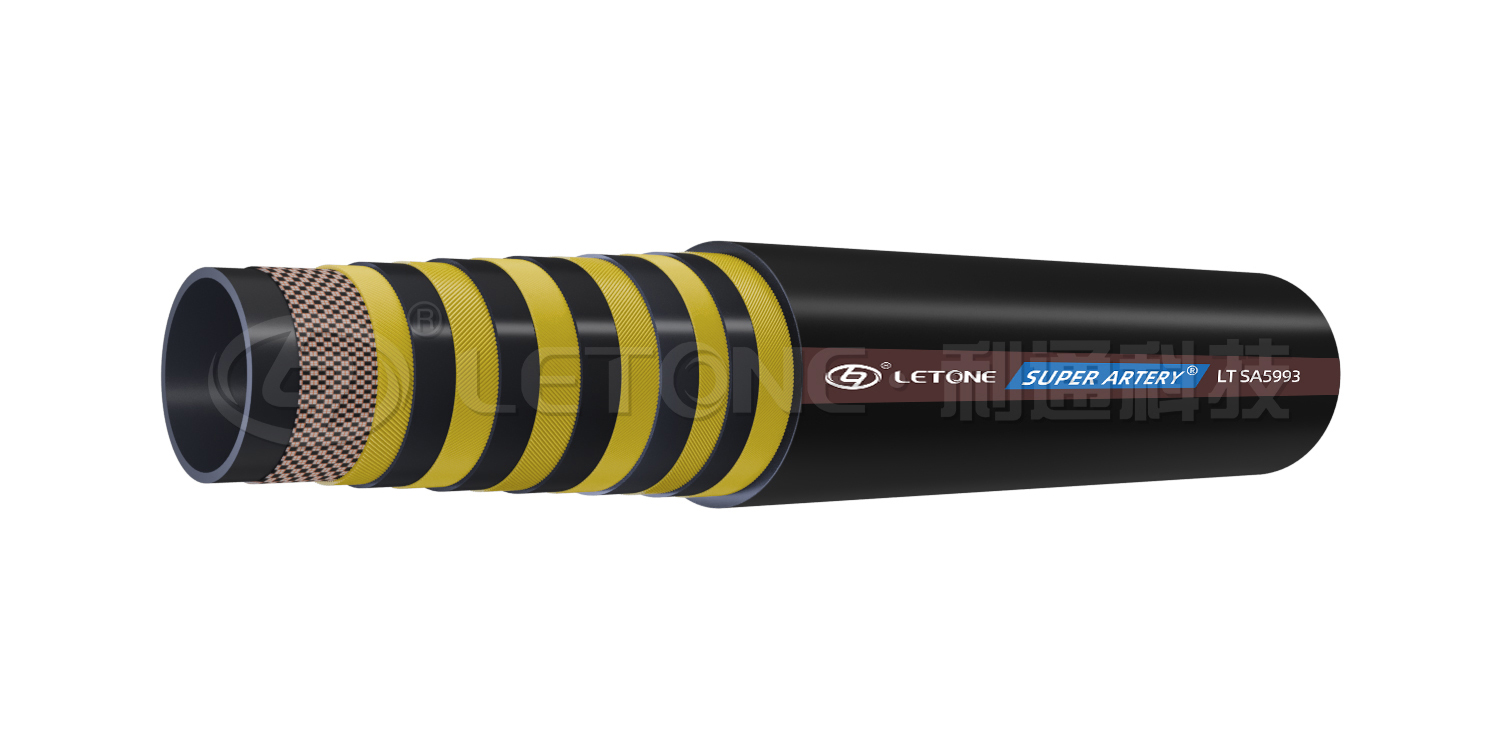

LT SA5993
Super Artery EXCEEDS ISO18752 DC
Inner rubber layer:Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement:Four layers of steel wire winding (1/4"‒1"), pulse ≥1 million, six layers of steel wire winding (1 1/4"‒2"), pulse ≥1 million times
Outer layer:standard;abrasion, weather resistant synthetic rubber.
               AR cover: highly abrasion, weather resistant synthetic rubber.
               SAR cover: super abrasion,weather resistant UHMWPE.

Temperature range:-40°C to +121°C (-40°F to +250°F)

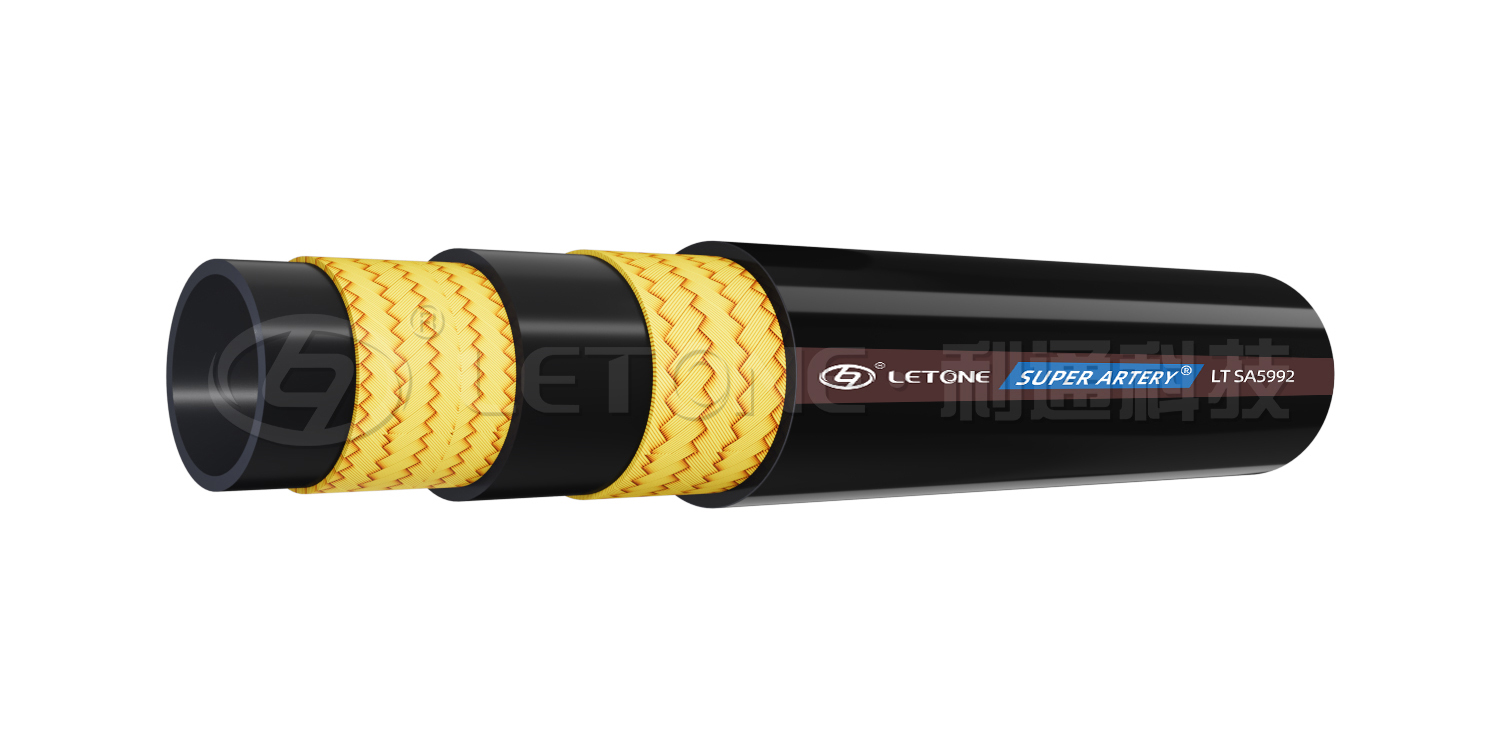

LT SA5992
Super Artery EXCEEDS ISO18752-BC/CC/DC
Inner rubber layer:Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement layer:two braids of high tensile steel wire (1/4"-5/16"), impulse2500,000 cycles.
               four plies of spiraled high tensile steel wire (3/8"-1 1/4"), impulse21,000,000 cycles.
               six plies of spiraled high tensile steel wire (1 1/2"-2"), impulse21,000,000 cycles.
Outer layer:standard:abrasion, weather resistant synthetic rubber.
              AR cover: highly abrasion, weather resistant synthetic rubber.
              SAR cover: super abrasion,weather resistant UHMWPE
Temperature range:-40C-+100C(-40F-+212°F)
              -40°C~+121°C(-40F-+250°F)
LT SA5991
Super Artery EXCEEDS ISO18752-BC/CC
Inner rubber layer:Neoprene synthetic rubber, suitable for hydraulic oil that can be degraded
Reinforcement layer:super-strong high-flex steel wire wound in four layers, pulse ≥ 1 million times
outer layer: standard:no-skive abrasion, weather resistant synthetic rubber.
            AR cover: no-skive, highly abrasion, weather resistant synthetic rubber.
            SAR cover: super abrasion, weather resistant UHMWPE.
Temperature range:-40°C to +121°C (-40°F to +250°F)
LTSA599-FH
Super Artery super soft hose
Inner Layer:Oil resistant synthetic rubber
Reinforcement:4-layered high-strength super-flexible steel wire
Outer Layer:Wear-resistant, weather-resistant synthetic rubber (weather-resistant for 5 years, warranty for 3 years)
Characteristic:Low bending-bending radius is 50% lower than DIN EN853 standard; high-pressure-pressure is 30%~40% higher than DIN EN853 standard; long life.

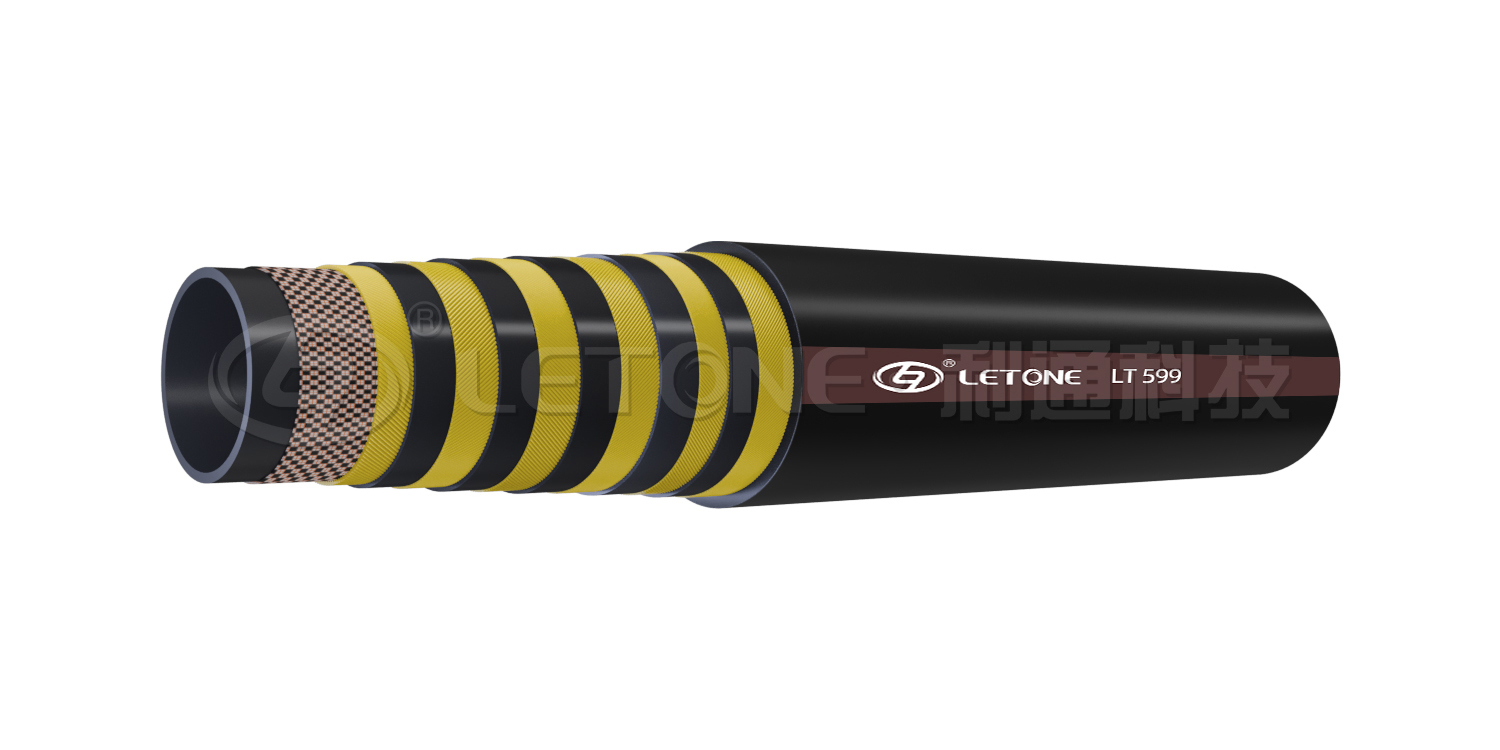

LT599
ISO18752-CC ARTERY® WIRE SPIRAL HYDRAULIC HOSE
lnner Tube:NBR synthetic rubber
Reinforcement:four orsix plies of spiraled high tensile steel wire,tested with 800,000 impulse cycles without leakage
Outer Layer:skiving-free abrasion and weather resistant synthetic rubber
Standard:ISO18752-CC standard
LT586
SAE 100R9 Wire Spiral Hydraulic Rubber Hose
Tube: An inner tube of oil resistant synthetic rubber
Reinforcement:4 plies of steel wire Wrapped in alternating directions
Cover: Weather resistant synthetic rubber cover
TEMPERATURE RANGE:-40℃~+121℃(-40°F~+250°F)
LTSA599
ISO18752-DC SUPER ARTERY® WIRE SPIRAL HYDRAULIC HOSE
Inner Tube:CR/NBR synthetic rubber
Reinforcement:multi-spiraled high tensile super flexible steel wire,four plies ≥ 1 million impulse cycles
Outer Layer:skiving-free abrasion and weather resistant synthetic rubber
Temperature Range:-40°C 〜+121°C (-40°卜+250°F) ;-55°C 〜+100°C (-67°F- +212°F)
LT593
Super High Pressure Resistant Wire Spiral Hydraulic Rubber Hose
Tube: oil-resistant black synthetic rubber
Reinforcement:six - layer high strength steel wire , inner diameter 25
Cover: Black synthetic rubber, oil resistance, wear resistance, weather resistance
Temperature::-40℃~+121℃ ( -40℉~+250℉)
LT591
Super Low Temperature Resistant Wire Spiral Hydraulic Rubber Hose
Tube :The hose is composed of special composite rubber inner glue with excellent resistance to
Reinforcement:ultra-low temperature and good oil resistance, steel wire braid strengthening layer
Cover:special composite rubber outer rubber with excellent resistance to ultra-low temperature and good resistance to weather
Temperature range:55 ℃ ~ 100 ℃

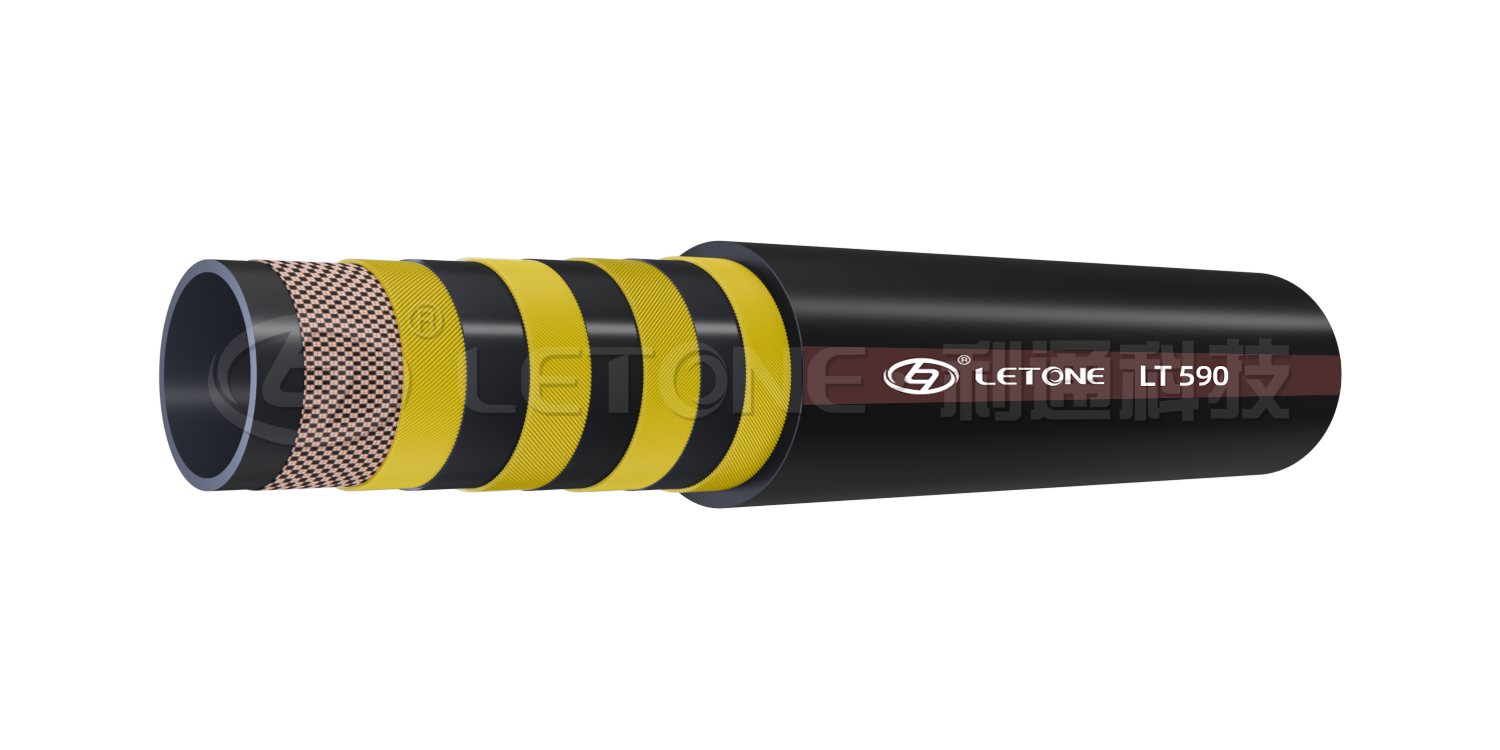

LT590
Large Size Wire Spiral Hydraulic Rubber Hose
Tube:hoses are made of special composite rubber internals with good super high temperature resistance
Reinforcement:Multispiral high tensile super flexible steel wire
Cover:Anti-aging synthetic rubber
Temperature Range:-40℃~100℃(-40°F~+212°F)
LT589
SAE R15 WIRE SPIRAL HYDRAULIC HOSE
lnner Tube:black hot oil resistant synthetic rubber
Reinforcement:four or six plies of spiraled high tensile steel wire
Outer Layer:black oil, weather, and abrasion resistant synthetic rubber
Temperature range: -40℃~+121℃(-40°F~+250°F)
LT588
EN 856-4SH | MSHA | MA WIRE SPIRAL HYDRAULIC HOSE
Inner Tube:black oil resistant synthetic rubber
Reinforcement:four plies of spiraled high tensile steel wire
Outer Layer:black oil and weather resistant synthetic rubber
Temperature Range: -40℃~+100℃(-40°F~+212°F)

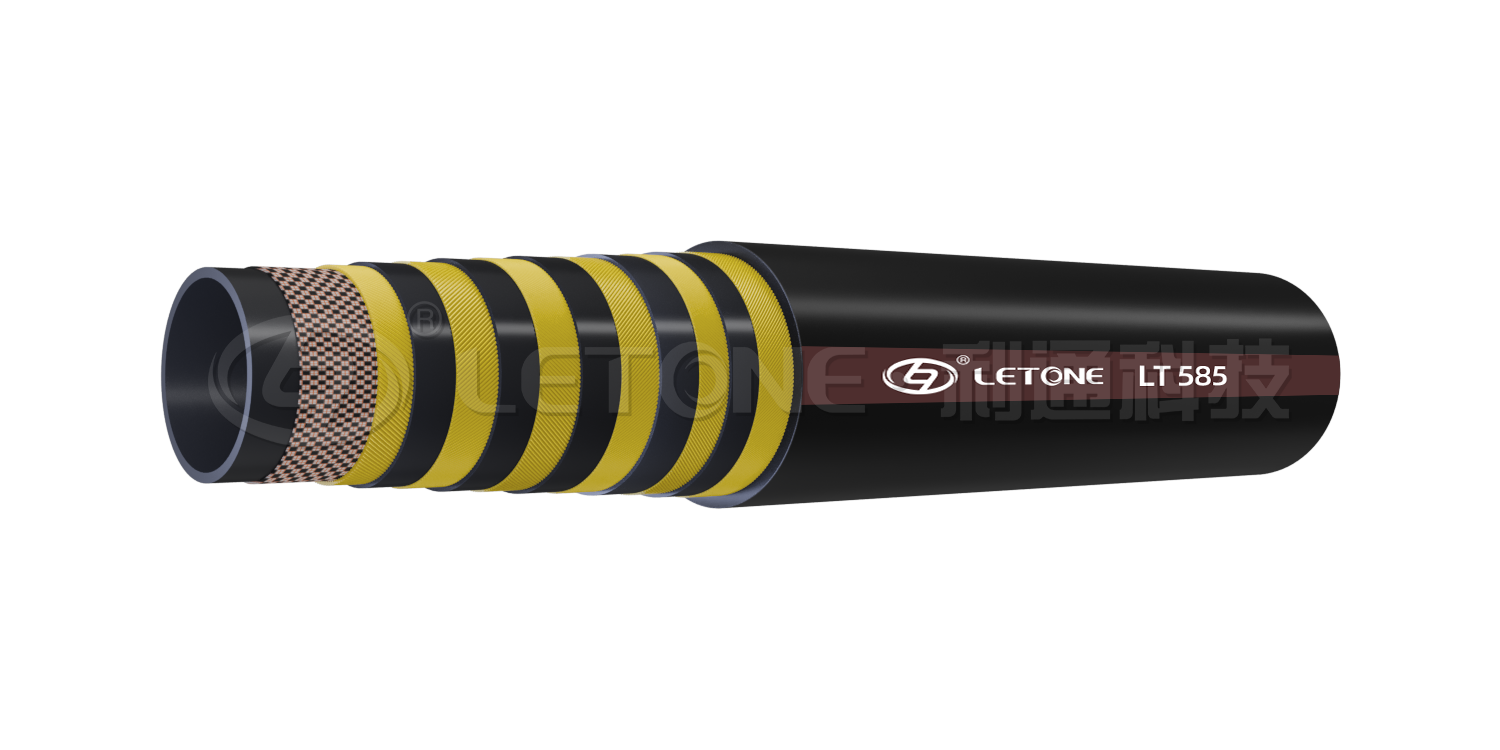

LT585
MT/T98丨MSHA WIRE SPIRAL HYDRAULIC HOSE FOR MINING
lnner Tube:blackoil resistant synthetic rubber
Reinforcement:four or six plies of spiraled high tensilesteelwire
Outer Layer:black oil, weather, and abrasion resistant synthetic rubber
Temperature Range: -40℃~+100℃(-40°F~+212°F)
LT583
EN856-4SP MSHA WIRE SPIRAL HYDRAULIC HOSE
Inner Tube:black oil resistant synthetic rubber
Reinforcement:four plies of spiraled high tensile steel wire
Outer Layer:black oiland weather resistant synthetic rubber
Temperature Range:-40℃~+100℃ (-40°F~+212°F)

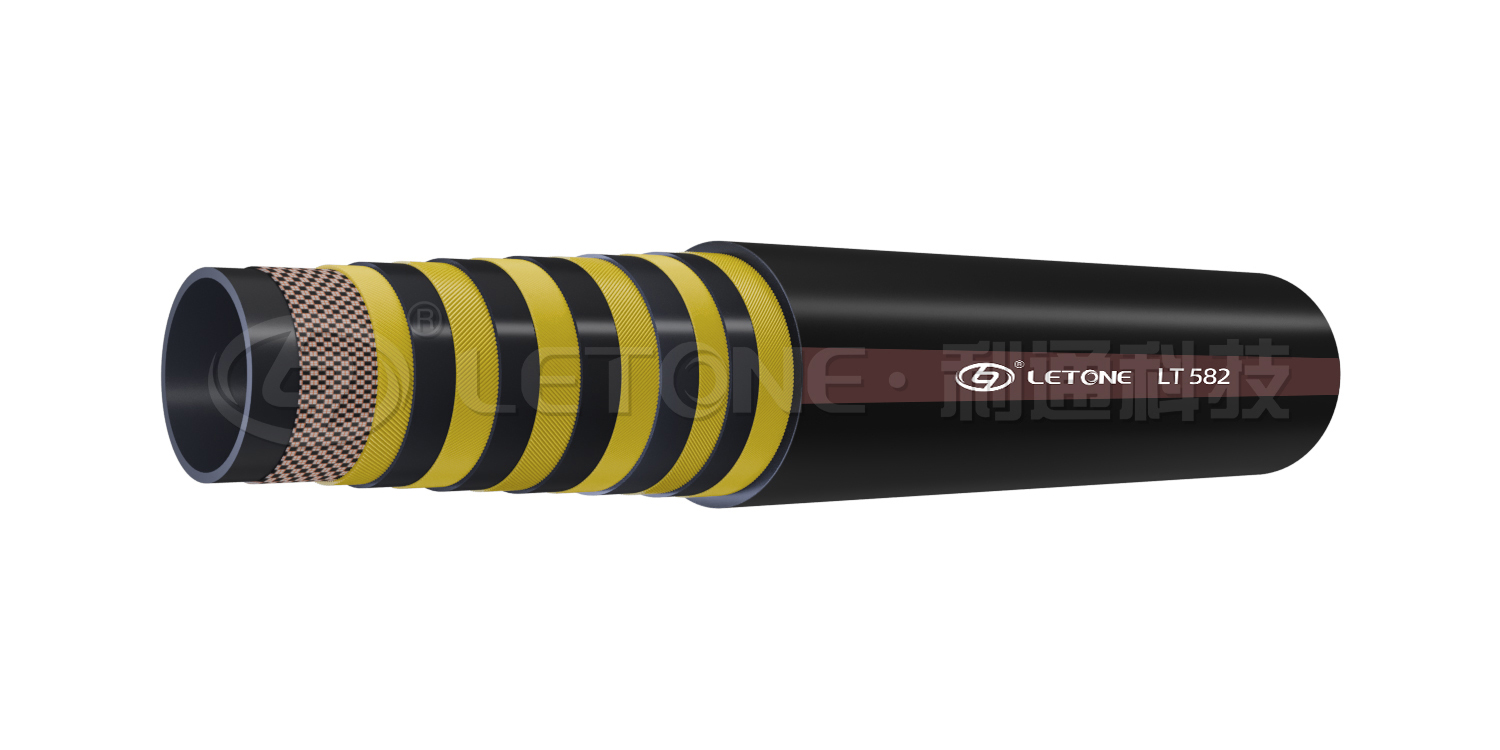

LT582
SAE 100R13 MSHA WIRE SPIRAL HYDRAULIC HOSE
lnner Tube:btack hot oil resistant synthetic rubber
Reinforcement:four or six plies of spiraled high tensile steel wire
Outer Layer:black oil and weather resistant synthetic rubber
Standard:Hose execution SAE100R13 standard, MSHA standard
LT581
SAE 100R12 MSHA WIRE SPIRAL HYDRAULIC HOSE
lnnerTube:btack hot oil resistant synthetic rubber
Reinforcement: four plies of spiraled high tensile steel wire
Outer Layer:black oil and weather resistant synthetic rubber
Temperature range :-40°C 〜+121°C (-40°F〜+250°F)
