LTSA599-FH

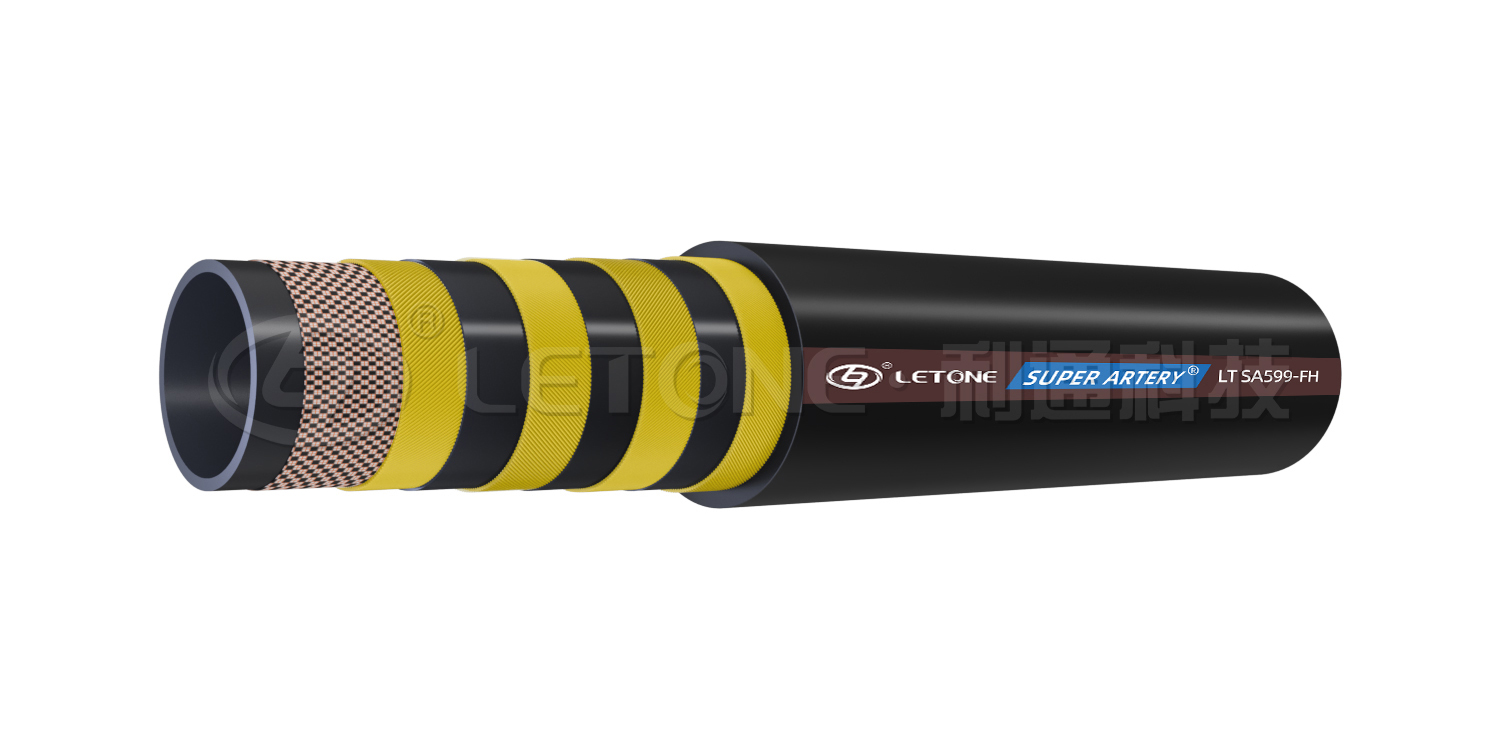

Super Artery super soft hose
Application:It is suitable for transporting water-based, petroleum-based hydraulic oil and biodegradable hydraulic oil in harsh working environments such as excavators, construction machinery, mining machinery and agricultural machinery, etc.

Inner Layer:Oil resistant synthetic rubber
Reinforcement:4-layered high-strength super-flexible steel wire
Outer Layer:Wear-resistant, weather-resistant synthetic rubber (weather-resistant for 5 years, warranty for 3 years)
Characteristic:Low bending-bending radius is 50% lower than DIN EN853 standard; high-pressure-pressure is 30%~40% higher than DIN EN853 standard; long life.
Hose Fitting:It adopts high-quality carbon structural steel, the core material is 45# steel, the nut material is 35# steel, and the sleeve is 20# steel, which conforms to the national, British and American national standards. The joint sealing is made of hydrogenated nitrile rubber (10 years of aging resistance) Above) Use the one-piece hose connector specially provided by Litong, with pulse >= 1 million times.
Temperature Range:-40℃~+85℃(-40℉~+185℉)H
Super Artery super soft hose
Parameter
Specifications Inch Hose inner diameter I.D.(mm) Outer diameter of hose O.D.(mm)
Work pressure B.P.(MPA)
Burst pressure B.P.(MPA)
Minimum bending radius MIN.B.RR(mm)
Weight(Kg/m)
1/4"
6
15.4
56
224
50
0.425
5/16"
8
17
50
200
55
0.486
3/8"
10
19
42
168
73
0.559
1/2"
13
22
35
140
100
0.627
5/8"
16
25
32
128
117
0.804
3/4"
19
28.6
28
112
144
0.955
1"
25
35.7
28
112
190
1.448
1 1/4"
32
44
28
112
225
2.078
