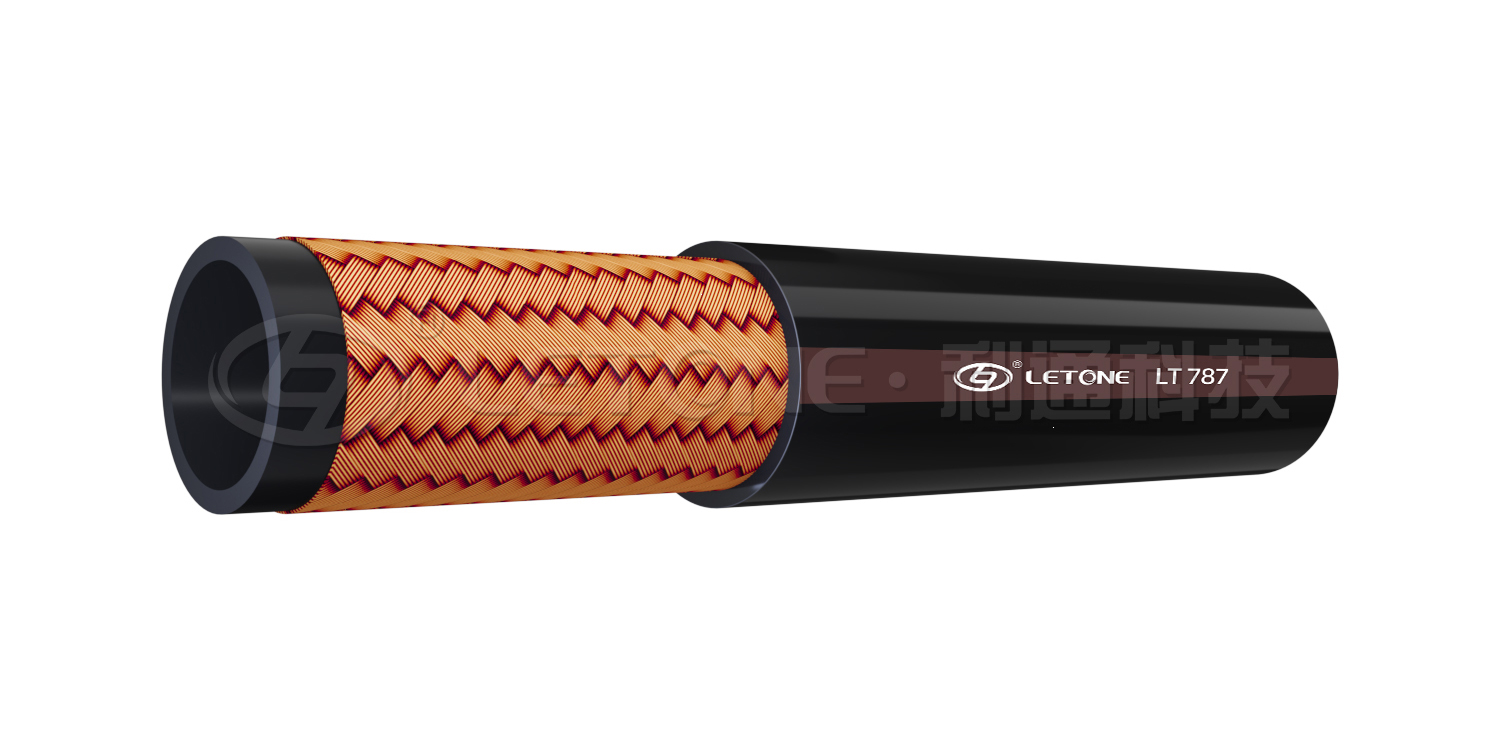

EN854-2TE-3TE OIL RETURN HOSE -Letone

Parameter

SIZE(Dash)	SIZE(in.)	I.D. (mm)		O.D. (mm)		Max.W.P.	P.P	Min.B.P.	Min.B.R.	W.T
SIZE(Dash)	SIZE(in.)	Min	Max	Min	Max	(MPa)	MPa	(MPa)	(mm)	kg/m
-4	1/4-1	6.1	6.9	12.4	13.6	7.5	15	30	40	0.14
-5	5/16-1	7.4	8.5	14.2	15.4	6.8	13.6	27.2	50	0.16
-6	3/8-1	9.3	10.1	16.0	17.2	6.3	12.6	25.2	60	0.18
-8	1/2-1	12.3	13.5	18.9	20.5	5.8	11.6	23.2	70	0.22
-10	5/8-1	15.5	16.7	23.0	24.6	5.0	10	20.0	90	0.30
-12	3/4-1	18.5	19.8	26.4	28.0	4.5	9	18.0	110	0.33
-16	1-1	24.6	26.2	33.3	35.7	4.0	8	16.0	130	0.46
-20	1 1/4-1	30.8	32.8	40.8	43.2	3.5	7	14.0	140	0.22
-24	1/4-2	6.1	6.9	13.9	15.1	14.5	29	58	45	0.19
-32	5/16-2	7.4	8.5	16.2	17.4	13.0	26	52	55	0.23
-6	3/8-2	9.3	10.1	17.9	19.1	11.0	22	44.4	70	0.26
-8	1/2-2	12.3	13.5	21.0	22.6	9.3	18.6	37.2	85	0.30
-10	5/8-2	15.5	16.7	25.4	27.0	8.0	16	32.0	105	0.41
-12	3/4-2	18.2	19.8	28.2	29.8	7.0	14	28.0	130	0.47
-16	1-2	24.6	26.2	35.3	37.7	5.5	11	22.0	150	0.69
-20	1 1/4-2	30.8	32.8	40.8	43.2	4.5	9	18.0	190	0.73
-24	1 1/2-2	37.1	39.1	47.8	50.2	4.0	8	16.0	240	0.87
-32	2-2	50.0	52.0	60.8	64.0	3.0	6	13.2	300	1.16

Note: The actual parameters are subject to the final atlas
