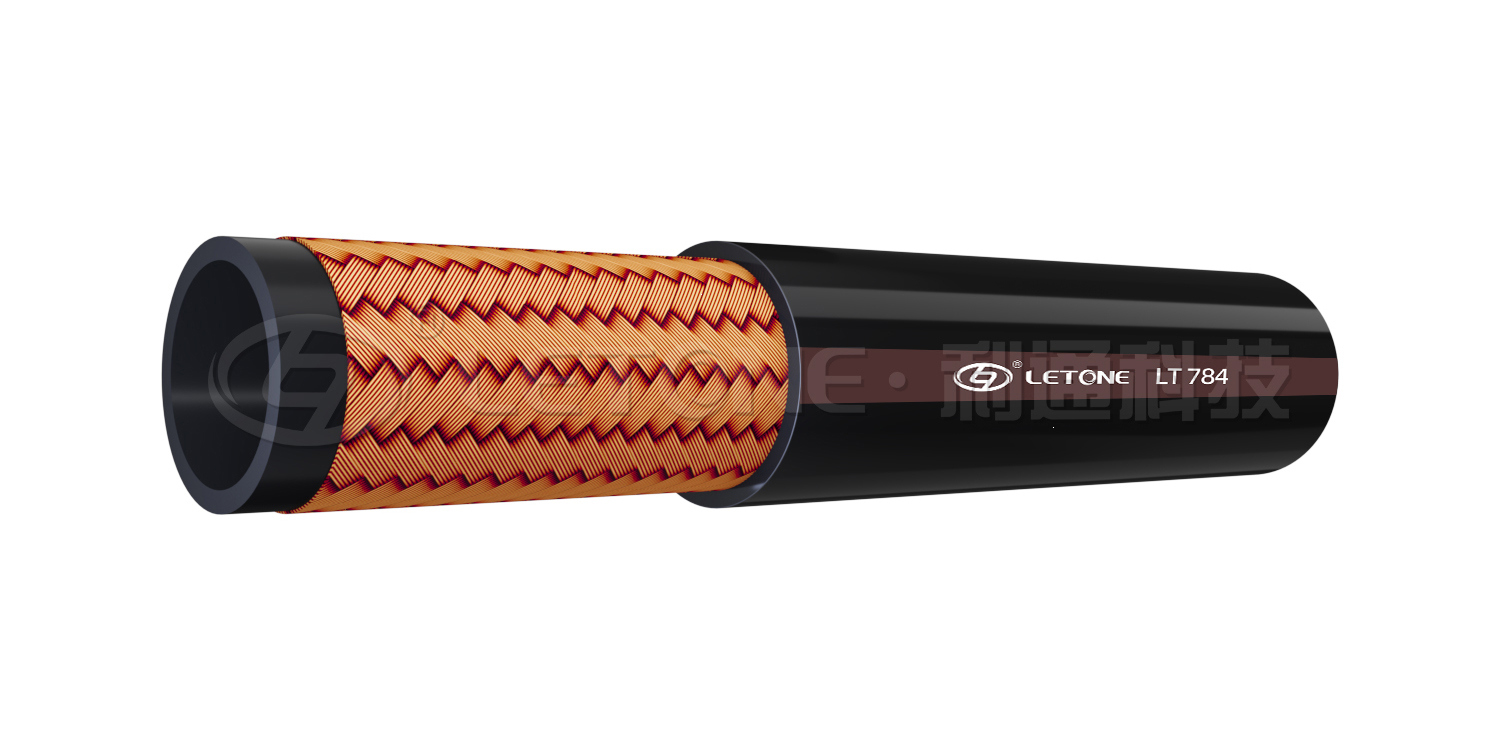

LT784
SAE100R6 FIBER BRAID HOSE
Applications:Suitable to convey medium like petroleum basedhydraulic oil,lubrication oil,water, and air.

Tube:Black oil-resistant synthetic rubber
Reinforcement:One braid oftextile
Cover:Black oil, weather, and abrasion resistant synthetic rubber
Temperature Range:-40℃ to +100℃ (-40℉ to +212℉)
SAE100R6 FIBER BRAID HOSE
Parameter
SIZE (Dash) SIZE(in.) I.D.(mm) O.D.(mm) Max.W.P. Min.B.P. Min.B.R. W.T
Min Max Min Max (MPa) psi (MPa) psi (mm) kg/m
-3 3/16 4.6 5.5
11.0
12.2 3.4 500 13.6 2000 50 0.10
-4 1/4 6.1 6.9
12.4
13.6 2.8 400 11.2 1600 65 0.13
-5 5/16 7.4 8.5
14.2
15.4 2.8 400 11.2 1600 80 0.16
-6 3/8 9.3 10.1
15.7
16.9 2.8 400 11.2 1600 80 0.18
-8 1/2 12.3 13.5
19.5
21.1 2.8 400 11.2 1600 100 0.25
-10 5/8 15.5 16.7
22.7
24.3 2.4 340 9.6 1360 125 0.29
-12 3/4 18.2 19.8 26.2 27.8 2.1 340 8.4 1200 150 0.37

Note: The actual parameters are subject to the final atlas
