Nylon Recycled Materials

Nylon (polyamide, abbreviated as PA) is a general term for a class of thermoplastic resins with repeating amide groups (-CONH2) on the main molecular chain, and there are many material grades. At present, the products of nylon recycling projects are mainly recycled nylon materials, involving grades such as PA6, PA66, PA11, and PA12.

Why Modify It?

While nylon (polyamide) boasts excellent inherent properties, its inherent limitations restrict its application in a wider range of fields. Therefore, "modification" is a crucial aspect of nylon material applications. Simply put, the fundamental reason for the need to modify nylon is to compensate for its inherent defects or endow it with new special functions by artificially adding other substances or using chemical methods to meet the stringent performance requirements of specific products.

Modified Nylon Recycled Materials

The core purpose of modifying recycled nylon is similar to that of virgin nylon, but the motivation is more urgent and complex. It can be summarized as: "filling gaps and turning waste into treasure." Because recycled materials have already undergone thermal and mechanical shear degradation during the recycling process, their performance is inherently deficient, limiting their direct application range. Modification can elevate them to a level that meets the requirements of specific applications.

Recovery performance	To compensate for the loss of mechanical properties (such as strength and toughness) due to degradation.
Stable performance	Solving performance fluctuation issues caused by complex sources and inconsistent batches
Enhance value	By giving it special features, it can be moved from low-end applications to higher-value areas.
Easy to process	Improve the rheological properties that change due to degradation, making them more suitable for molding and processing.

Purpose And Effects Of Modification

Improve physical properties

The mechanical strength and heat resistance of plastics can be improved by adding reinforcing materials, such as glass fiber.

Improve processing performance

Adding specific additives, such as lubricants, can reduce melt viscosity and improve the flowability and processing efficiency of plastics.

Improve the appearance of plastic

Pigments and colorants are used to improve the color and gloss of plastics, meeting aesthetic and market requirements.

Enhance environmental protection characteristics

Adding recyclable or biodegradable materials reduces the environmental impact of plastics and aligns with the trend of green development.

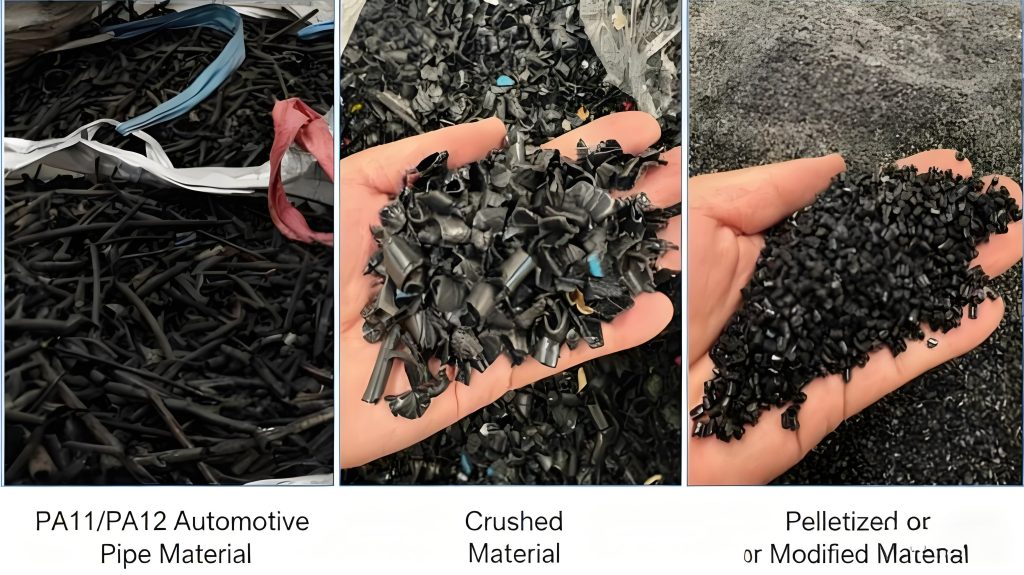

Product Processing

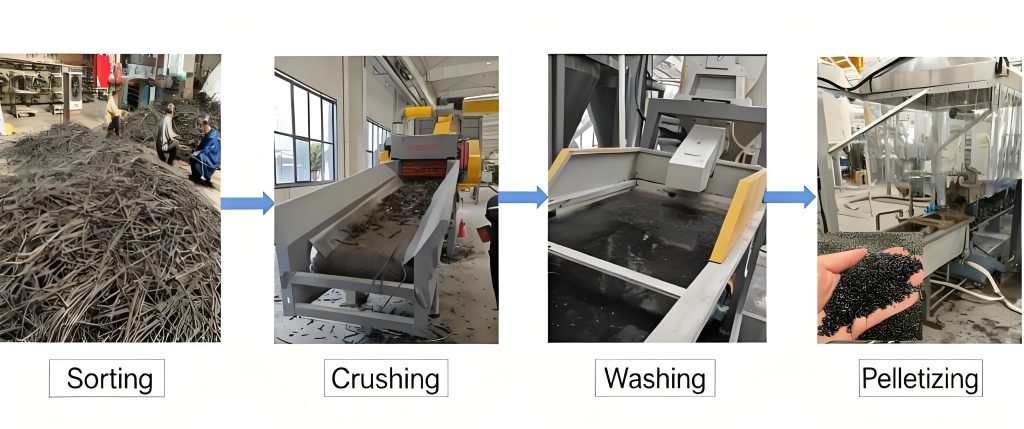

Wool Recycling Process

Performance Comparison Between Recycled And Virgin Nylon Materials

Virgin materials: High performance and stable quality, used in high-end products with high requirements for appearance and strength. Recycled materials: Low cost and more environmentally friendly, used in internal structural components or low-end products with lower requirements for performance and appearance.

Characteristic	Nylon raw material	Nylon raw material
Mechanical properties	High strength and good toughness	Strength and toughness have decreased.
Appearance	Pure and uniform in color	The color is yellowish, which may indicate the presence of impurities.
stability	High, good batch consistency	Lower, with batch-to-batch variations.
Processability	Easy to process, stable parameters	Liquidity may change, requiring adjustments to the process.
price	higher	Lower price, cost advantage
Environmental protection	Consume oil resources	Reduce resource consumption, be more environmentally friendly

Application Cases

PA11/PA12 - Automotive sector (non-critical components)

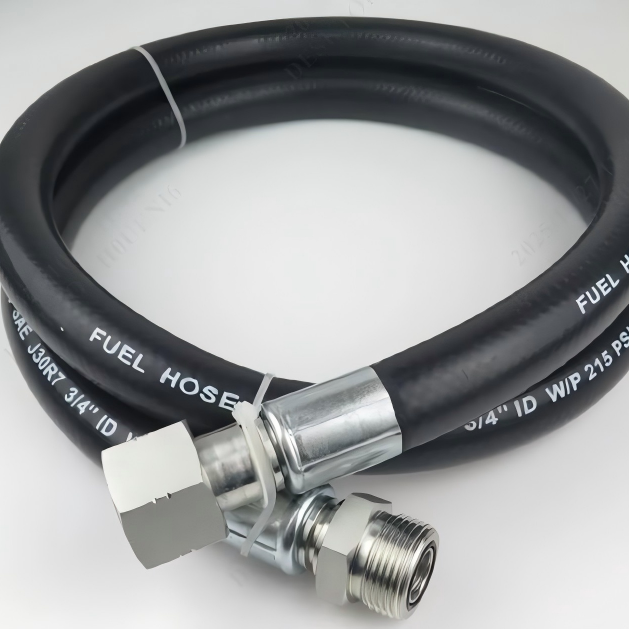

low-pressure fuel line：Recycled materials can be used to manufacture fuel delivery pipes, ventilation pipes, and other applications where pressure requirements are not high. They are typically used in a multi-layer co-extrusion process, with recycled material as the middle layer and virgin material used for the inner and outer layers to ensure cleanliness and long-term performance.
PA11/PA12 - Automotive sector (non-critical components)

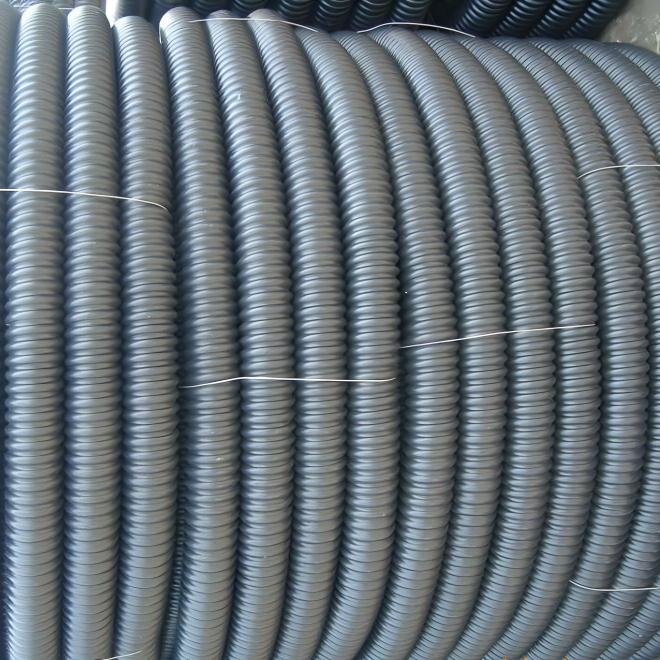

Fuel line sleeve/corrugated pipe:It does not directly contact fuel and serves as an outer protective tube, utilizing its flexibility and oil resistance.
PA11/PA12 - Automotive sector (non-critical components)

Brake hose sleeve：As an outer protective layer, it has lower requirements for temperature resistance and brake fluid resistance than the inner tube.

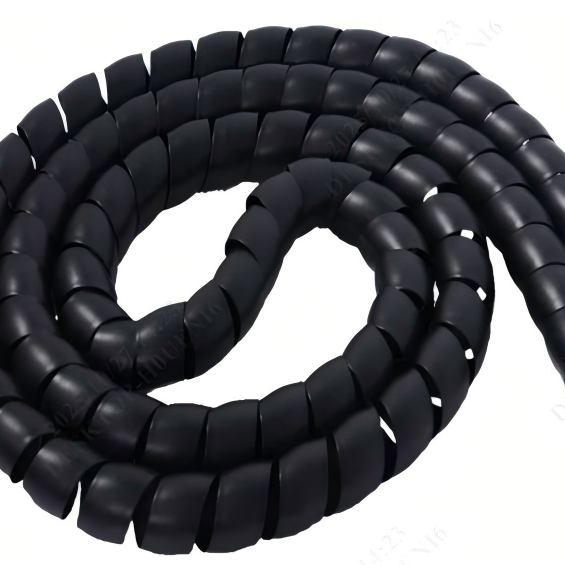

Various endotracheal tubes and wire harness sheaths:In environments such as engine compartments, it protects wiring harnesses and conduits from abrasion, high temperatures, and chemical corrosion.
PA11/PA12 - Industrial Applications

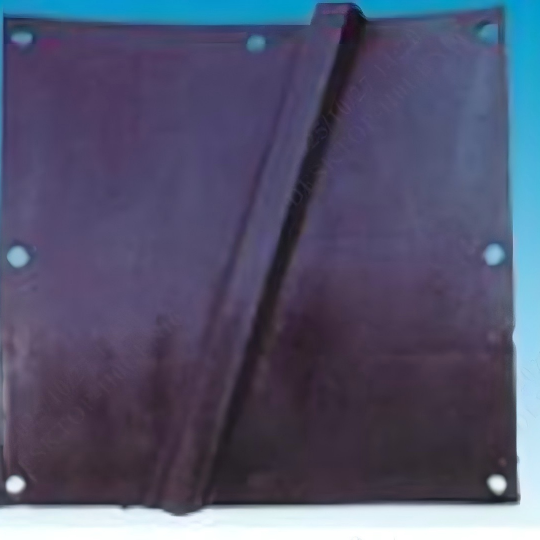

Wear-resistant liners and guide sleeves:Wear-resistant components used in non-core load-bearing parts of equipment such as mining and agricultural machinery.
PA11/PA12 - Industrial Applications

Flexible connectors:Pipe connections that require some degree of bending and vibration compensation.
PA11/PA12 - Sports & Leisure and 3D Printing Fields

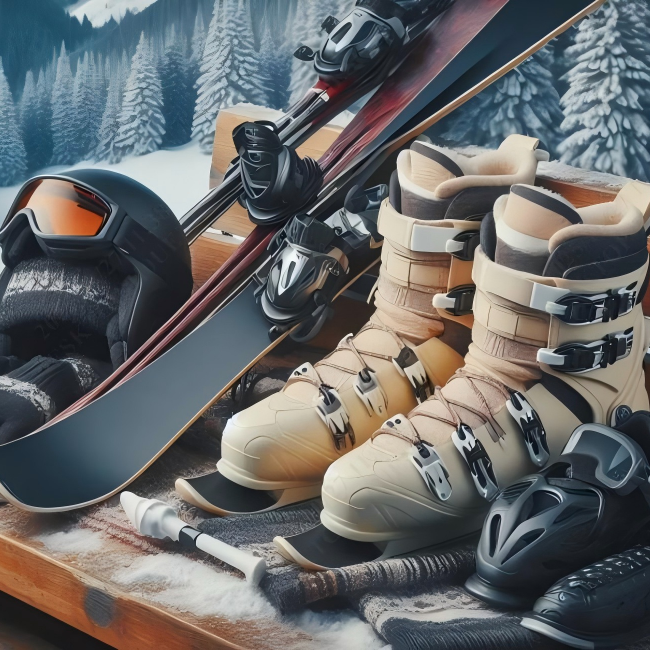

Ski boot shells, sports shoe components:It takes advantage of its good low-temperature impact resistance and flexibility.
PA11/PA12 - Sports & Leisure and 3D Printing Fields

3D printed display models and teaching aids:Display items that do not require high standards of appearance and strength.
PA6 - Automotive Industry

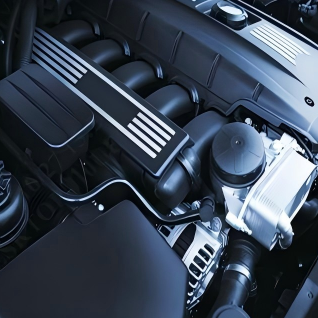

Engine compartment components：Non-core structural components such as the intake manifold, engine hood, and air ducts have relatively low requirements for heat resistance.
Cooling system components:Such as water pump impellers and water tank end covers (which must ensure hydrolysis resistance).
PA6 - Automotive Industry

Electrical connectors:Connectors and sheaths used in automotive wiring harnesses.
Interior and exterior trim:Door handles, decorative strips, buckles, etc.
PA6 - Electrical and Electronic Fields

Low-voltage electrical appliance housing:Such as the casing of switches, sockets, circuit breakers, and small distribution boxes.
PA6 - Electrical and Electronic Fields

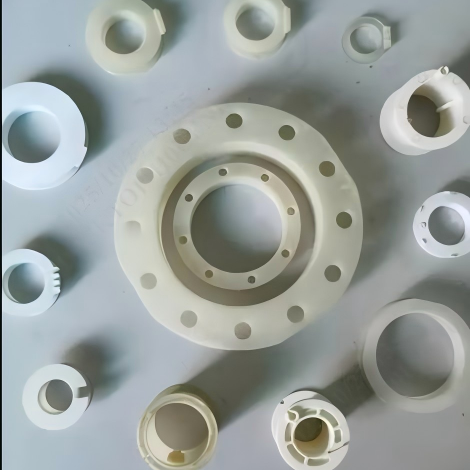

Coil frame:Used in transformers, relays, etc.
PA6 - Electrical and Electronic Fields

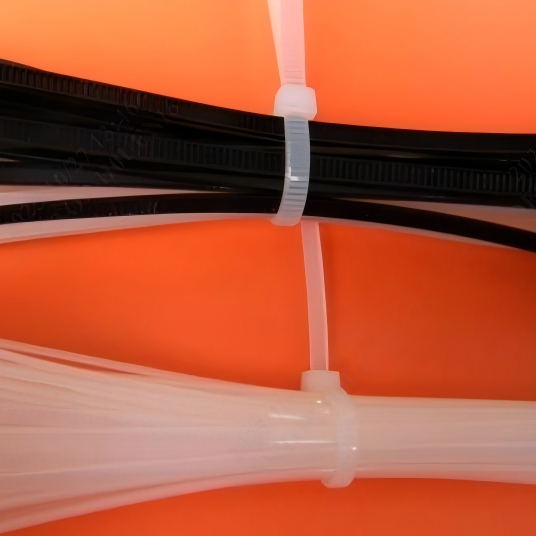

Cable ties and sheaths:This is a very common application with low requirements for mechanical properties.
PA6 - Industrial and Consumer Products Sector

Office equipment:Chair legs and backrests, gears and structural components inside the printer (requiring wear resistance and low noise).
PA6 - Industrial and Consumer Products Sector

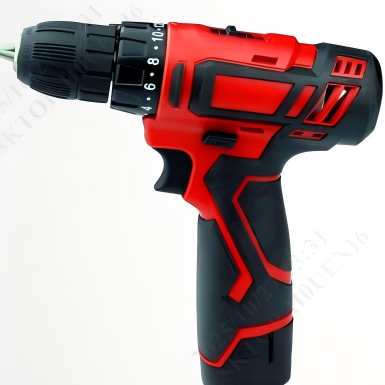

Home appliances:Power tool housings, vacuum cleaner parts, handles and gears for kitchen appliances.
PA6 - Industrial and Consumer Products Sector

Fishing gear:Some structural components of a fishing reel.
PA6 - Industrial and Consumer Products Sector

Sports equipment:skateboard wheels, bicycle tires, bike locks, etc.
PA66 - Automotive Industry

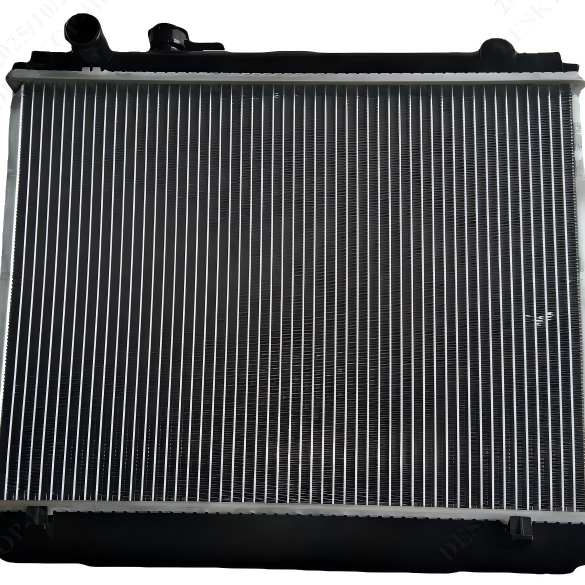

Radiator water tank:PA66's excellent resistance to high-temperature coolants makes it widely used in this field, and recycled materials can also be used.
PA66 - Automotive Industry

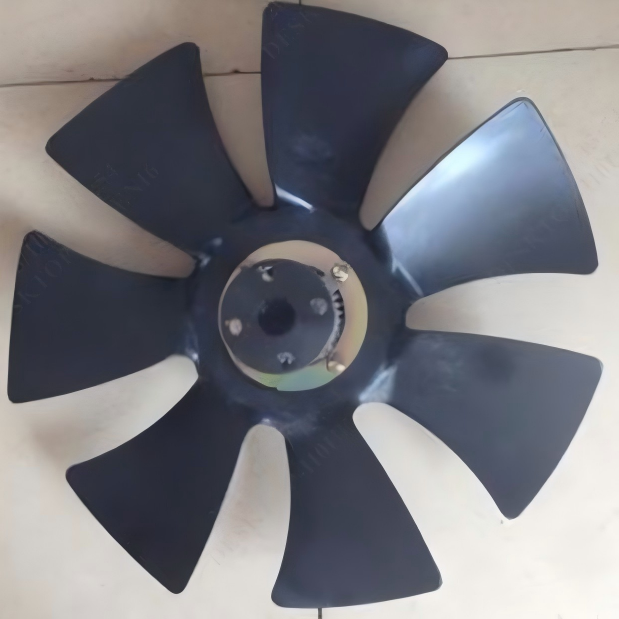

Engine fan, fan cover:It requires high heat resistance and strength.
PA66 - Automotive Industry

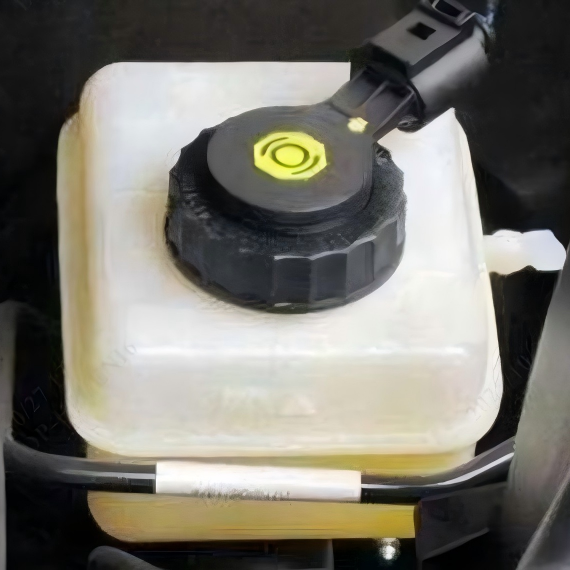

Braking system components:Non-core safety components such as brake fluid reservoir caps.
PA66 - Automotive Industry

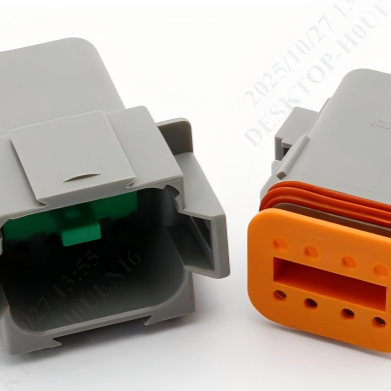

Automotive connectors:Connectors, in particular, are required to withstand higher temperatures in the engine compartment.
PA66 - Electrical and Electronic Applications

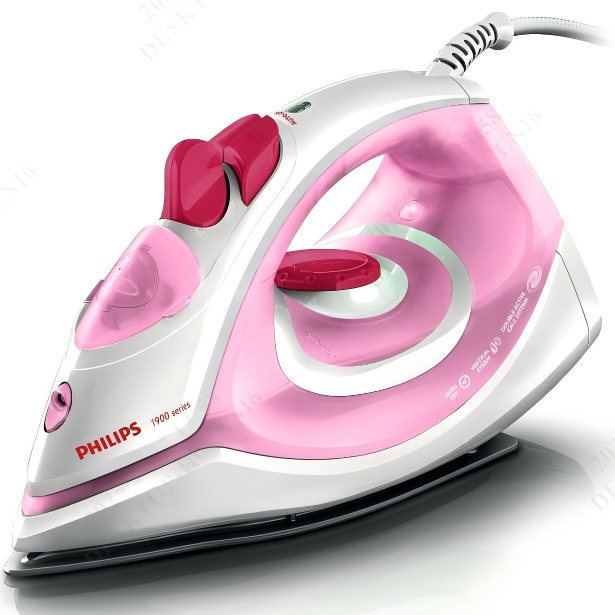

High-temperature electrical components:Such as parts that need to come into contact with high temperatures, like electric irons, hair dryers, and kettles.
PA66 - Electrical and Electronic Applications

Terminal block:Good flame retardancy and heat resistance are required.
PA66 - Electrical and Electronic Applications

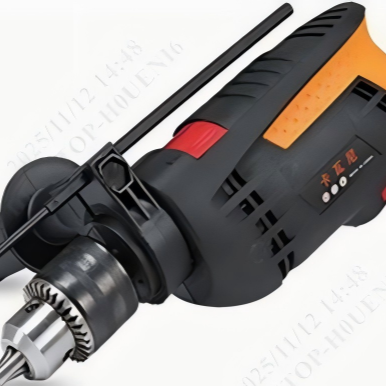

Power tool housing:High rigidity and heat resistance are required.
PA66 - Industrial Applications

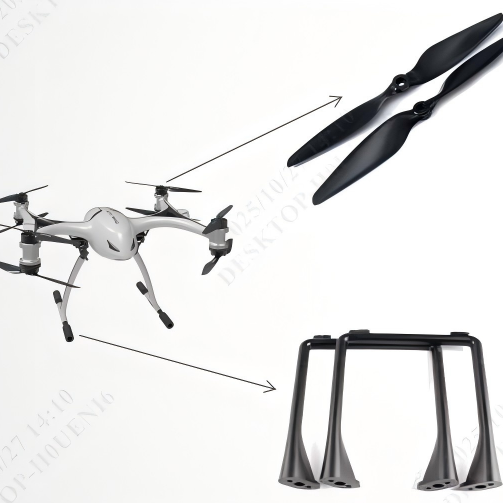

Drone propellers and landing gear:It requires high rigidity and a certain degree of impact resistance.
PA66 - Industrial Applications

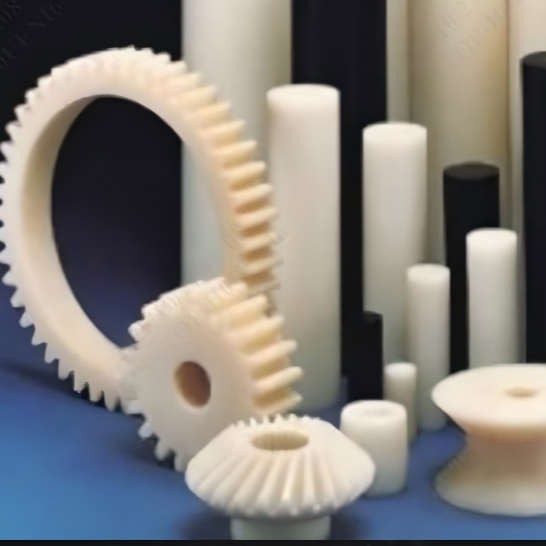

Mechanical structural components:Components such as gears, bearings, rollers, and guide rails require high wear resistance and high rigidity.





PA Recycled Material Application Enterprises And Core Needs

Application Enterprise Types	Commonly used types of regenerated PA	Typical product examples	Core needs and motivations
Modified plastics companies	Various recycled PA base materials	Reinforced, toughened, and flame-retardant modified recycled particles	Enhancing value and meeting customers' customized needs
Automotive and parts companies	Recycled PA6, PA66	Intake manifold, connector, fan, wheel covers	Reduce costs, meet environmental regulations, and achieve a balance of performance.
Electronic and electrical enterprises	Flame-retardant recycled PA6, PA66	Circuit breakers, connectors, power tool housings	Flame retardant properties, green brand image, cost control
Sports, leisure and consumer goods companies	Regeneration PA11, PA12	Ski boots, backpack buckles, comb handles	Combining high performance with environmental protection, brand differentiation
Industrial and packaging enterprises	Recycled PA6	Gears, bearings, bottle caps, brush bristles	Cost-driven, functional requirements (wear resistance)
