SAESplit Flange Clamp6000PSI
24 Hours Service Hotline
+86-0371-55157686
| PART NO. | FLANGE NO | DIMENSIONS | BOLT | W.P. | |||
| A | B | C | E | MPa | |||
| FS-08 | 1/2 " | 56.4 | 47.2 | 40.5 | 18.2 | M8X30 | 42 |
| FS-08UN | 1/2 " | 56.4 | 47.2 | 40.5 | 18.2 | 5/16 " -18X1. 1/2 " | |
| FS-12 | 3/4 " | 71.4 | 60 | 50.8 | 23.8 | M10X35 | |
| FS-12UN | 3/4 " | 71.4 | 60 | 50.8 | 23.8 | 3/8 " -16X1. 1/2 " | |
| FS-16 | 1 " | 81.2 | 69.6 | 57.2 | 27.8 | M12X45 | |
| FS-16UN | 1 " | 81.2 | 69.6 | 57.2 | 27.8 | 7/16 " -14X1.3/4 " | |
| FS-20 | 1. 1/4 " | 95.2 | 77.2 | 66.7 | 31.8 | M14X45 | |
| FS-20UN | 1. 1/4 " | 95.2 | 77.2 | 66.7 | 31.8 | 1/2 " -13X1.3/4 " | |
| FS-24 | 1. 1/2 " | 112.8 | 95 | 79.4 | 36.6 | M16X55 | |
| FS-24UN | 1. 1/2 " | 112.8 | 95 | 79.4 | 36.6 | 5/8 " -11X2. 1/4 " | |
| FS-32 | 2 " | 133.4 | 113.8 | 96.8 | 44.4 | M20X70 | |
| FS-32UN | 2 " | 133.4 | 113.8 | 96.8 | 44.4 | 3/4 " -10X2.3/4 " | |
Note: Bolts must be ordered separately.
FL-W SAE Whole Flange Clamp 3000PSI
SAE Solid Flange Clamp3000PSI
FS-W SAE WholeFlange Clamp 6000PSI
SAE Solid Flange Clamp 6000PSI
FS-W SAE Whole Flange Clamp 6000PSI
SAESplit Flange Clamp6000PSI
FL SAE Split Flange Clamps 3000PSI
SAE Split Flange Clamp3000PSI

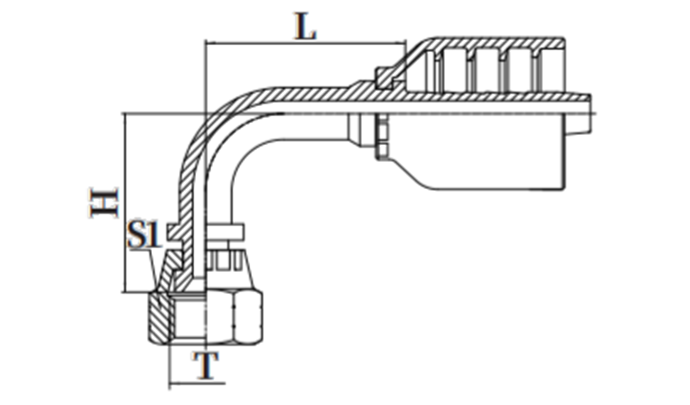

26791-RW 90°JIC Female 74°Cone Seat
