75 PSI Radiator Hose -Letone

Parameter

Series	I.D. (in.)	I.D. (mm)	O.D. (in.)	O.D. (mm)	Max.W.P.(psi)	L. (m)	W. （kg/m）
LT1003-050X12.6	1/2	13	0.83	21	75	3.81	0.28
LT1003-050X200	1/2	13	0.83	21	75	60.96	0.28
LT1003-062X12.6	5/8	16	0.94	24	75	3.81	0.33
LT1003-062X200	5/8	16	0.94	24	75	60.96	0.33
LT1003-071X12.6	11/16	18	1.02	26	75	3.81	0.36
LT1003-071X200	11/16	18	1.02	26	75	60.96	0.36
LT1003-078X12.6	13/16	20	1.10	28	75	3.81	0.39
LT1003-078X200	13/16	20	1.10	28	75	60.96	0.39
LT1003-087X12.6	7/8	22	1.18	30	75	3.81	0.42
LT1003-087X200	7/8	22	1.18	30	75	60.96	0.42
LT1003-100X12.6	1	25	1.30	33	75	3.81	0.48
LT1003-100X200	1	25	1.30	33	75	60.96	0.48
LT1003-112X12.6	11/8	28	1.42	36	75	3.81	0.51
LT1003-112X200	11/8	28	1.42	36	75	60.96	0.51
LT1003-118X12.6	13/16	30	1.50	38	75	3.81	0.55
LT1003-118X200	13/16	30	1.50	38	75	60.96	0.55
LT1003-125X12.6	11/4	32	1.57	40	75	3.81	0.58
LT1003-125X200	11/4	32	1.57	40	75	60.96	0.58
LT1003-137X12.6	13/8	35	1.69	43	75	3.81	0.62
LT1003-137X200	13/8	35	1.69	43	75	60.96	0.62
LT1003-150X12.6	11/2	38	1.89	48	75	3.81	0.85
LT1003-150X200	11/2	38	1.89	48	75	60.96	0.85
LT1003-157X12.6	19/16	40	1.97	50	75	3.81	0.89
LT1003-157X200	19/16	40	1.97	50	75	60.96	0.89
LT1003-162X12.6	15/8	42	2.05	52	75	3.81	0.94
LT1003-162X200	15/8	42	2.05	52	75	60.96	0.94
LT1003-175X12.6	13/4	45	2.17	55	75	3.81	0.98
LT1003-175X200	13/4	45	2.17	55	75	60.96	0.98
LT1003-189X12.6	17/8	48	2.28	58	75	3.81	1.04
LT1003-189X200	17/8	48	2.28	58	75	60.96	1.04
LT1003-200X12.6	2	51	2.40	61	75	3.81	1.12
LT1003-200X200	2	51	2.40	61	75	60.96	1.12
LT1003-218X12.6	23/16	55	2.56	65	75	3.81	1.19
LT1003-225X12.6	21/4	57	2.64	67	75	3.81	1.22
LT1003-238X12.6	23/8	60	2.76	70	75	3.81	1.28
LT1003-250X12.6	21/2	63	2.87	73	75	3.81	1.34
LT1003-275X12.6	23/4	70	3.15	80	75	3.81	1.44
LT1003-300X12.6	3	76	3.39	86	75	3.81	1.55
LT1003-315X12.6	31/8	80	3.54	90	75	3.81	1.64
LT1003-354X12.6	39/16	90	4.02	102	75	3.81	2.02
LT1003-400X12.6	4	102	4.49	114	75	3.81	2.26
LT1003-450X12.6	41/2	116	5.00	127	75	3.81	2.51
LT1003-500X12.6	5	127	5.55	141	75	3.81	3.21

Note: The actual parameters are subject to the final atlas

LT1005-A/LT1005-B

270 PSI Chlorobutyl Braided Steam Hose

Tube：Black extruded CIIR-heat-resistant
Reinforcement：High tensile steel wire braids
Cover：Red or black EPDM-heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting
Working Pressure：Constant Pressure-18 Bar (270 PSI)
Temperature Range：-40℃（-40°F）to+180℃（+356°F）

Inquiry

LT1001-A/LT1001-B

225 PSI Premium PaperMill/ Creamery Wash DownHose - No Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：Red EPDM-heat, abrasion and ozone resistant. White EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-15 Bar (225 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Inquiry

LT1002-A/LT1002-B

150 PSI Premium Paper Mill/Creamery Wash Down Hose With Tapered Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：White or green EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-10 Bar (150 PSI)
Temperature Range：-40° F(-40° C) to 356° F(+180° C)

Inquiry

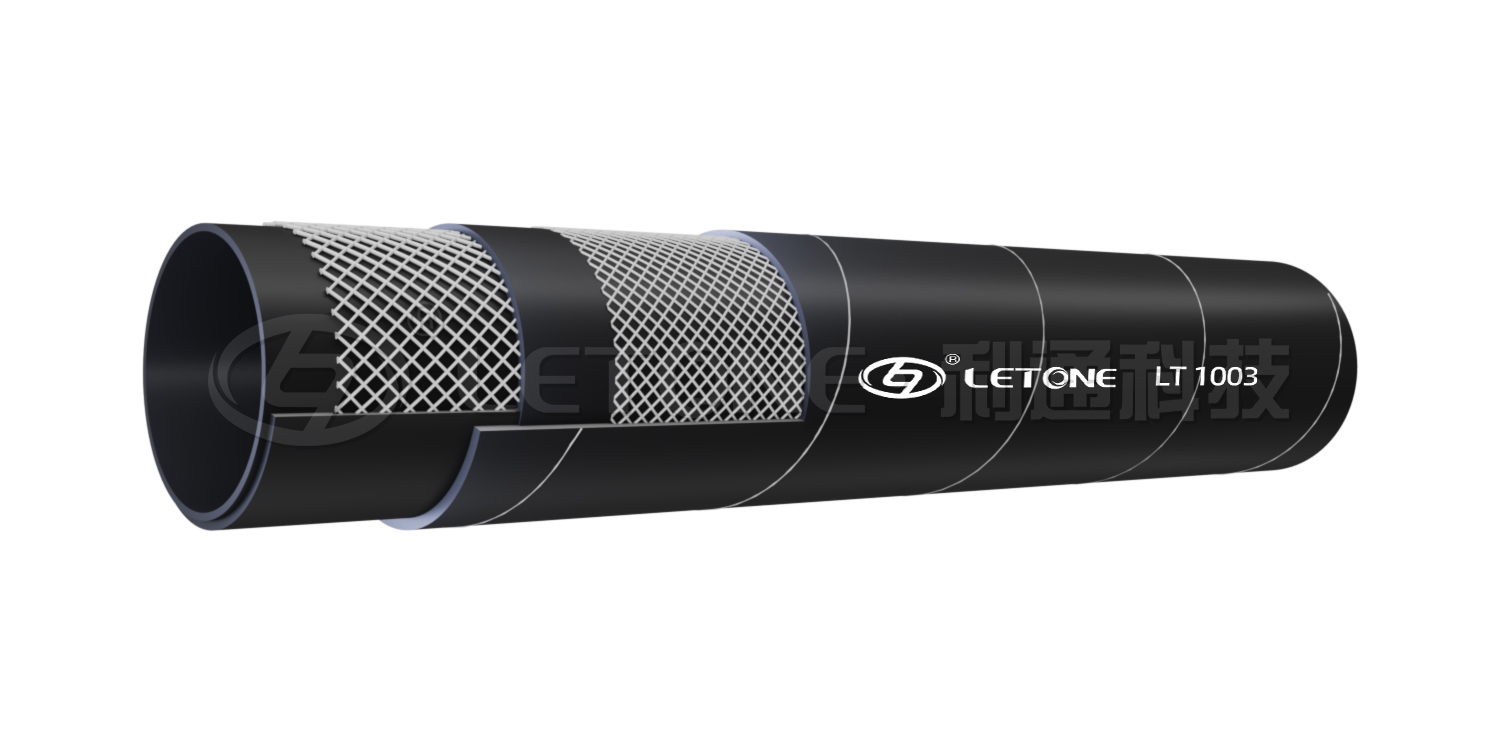

LT1003

75 PSI Radiator Hose

Tube：Black EPDM
Reinforcement：High tensile textile cords
Cover：Black EPDM-heat, abrasion and ozone resistant
Working Pressure：5 Bar (75 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Inquiry
