270 PSI EPDM Braided Steam Hose -Letone

LT1004-A/LT1004-B

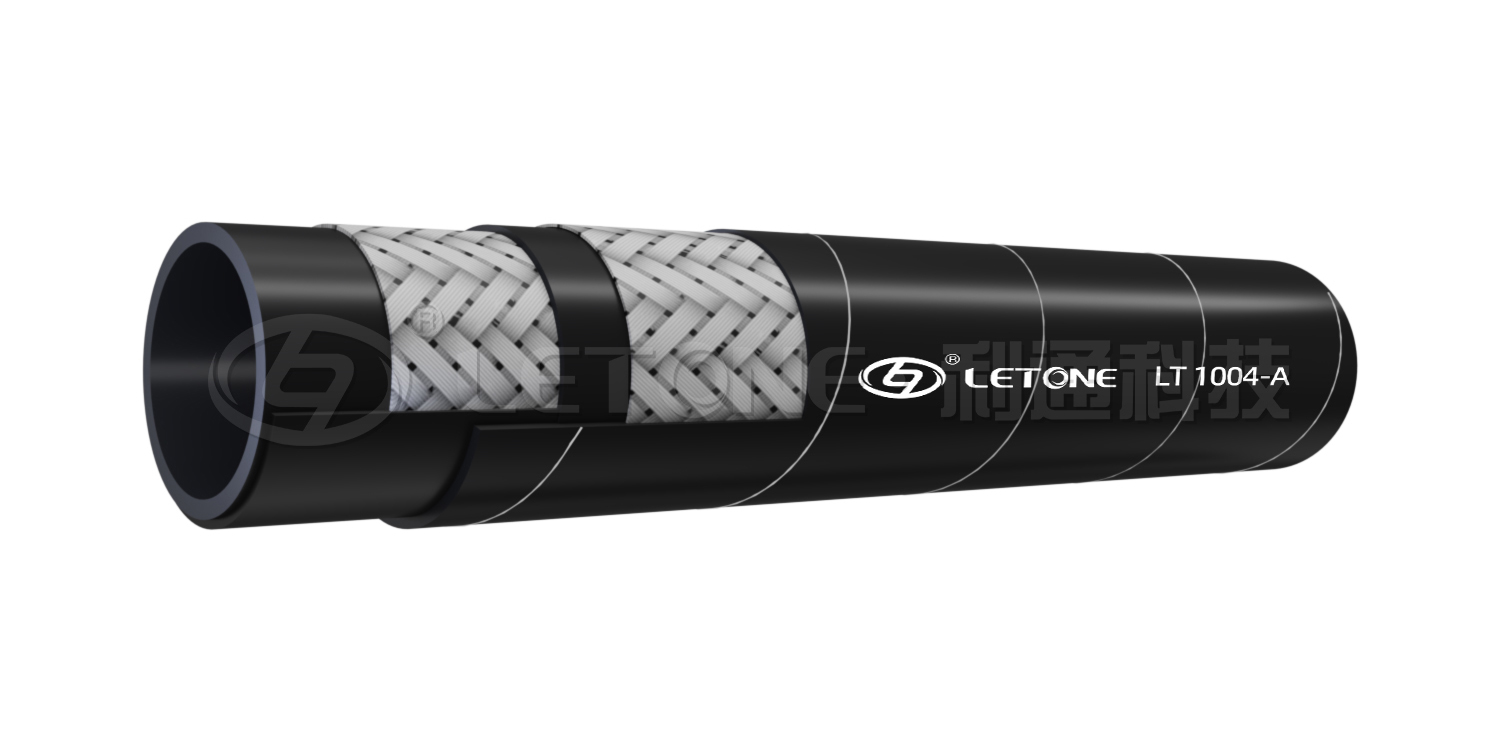

270 PSI EPDM Braided Steam Hose

Applications：The transfer of saturated steam up to 270 PSI AND 356℉(+180℃). Use with superheated steam will shorten hose life. Proper draining of steam hose after each use will increase service life

Tube：Black extruded EPDM-hQat-resistant

Reinforcement：High tensile steel wire braids

Cover：Red or black EPDM rubber, heat resistant, surface texture, using pinhole technology

Working Pressure：Constant Pressure-18 Bar (270 PSI)

Temperature Range：-40℃（-40°F）to +180℃（+356°F）

Online

Hotline ：

+86-0371-55157686

Parameter

Series	I.D. (in.)	I.D. (mm)	O.D. (in.)	O.D. (mm)	Max.W.P.(psi)	Min.B.R.	W. （kg/m）
LT1004A/B-050	1/2	13	0.91	23	270	5	0.42
LT1004A/B-075	3/4	19	1.22	31	270	71/2	0.77
LT1004A/B-100	1	25	1.50	38	270	10	0.89

Note: The actual parameters are subject to the final atlas

LT1005-A/LT1005-B

270 PSI Chlorobutyl Braided Steam Hose

Tube：Black extruded CIIR-heat-resistant
Reinforcement：High tensile steel wire braids
Cover：Red or black EPDM-heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting
Working Pressure：Constant Pressure-18 Bar (270 PSI)
Temperature Range：-40℃（-40°F）to+180℃（+356°F）

Inquiry

LT1001-A/LT1001-B

225 PSI Premium PaperMill/ Creamery Wash DownHose - No Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：Red EPDM-heat, abrasion and ozone resistant. White EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-15 Bar (225 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Inquiry

LT1002-A/LT1002-B

150 PSI Premium Paper Mill/Creamery Wash Down Hose With Tapered Nozzle

Tube：White EPDM
Reinforcement：High tensile textile cords
Cover：White or green EPDM-heat, abrasion and ozone resistant
Working Pressure：Constant Pressure-10 Bar (150 PSI)
Temperature Range：-40° F(-40° C) to 356° F(+180° C)

Inquiry

LT1003

75 PSI Radiator Hose

Tube：Black EPDM
Reinforcement：High tensile textile cords
Cover：Black EPDM-heat, abrasion and ozone resistant
Working Pressure：5 Bar (75 PSI)
Temperature Range：-40° F (-40° C) to 356° F(+180° C)

Inquiry
