LT401H

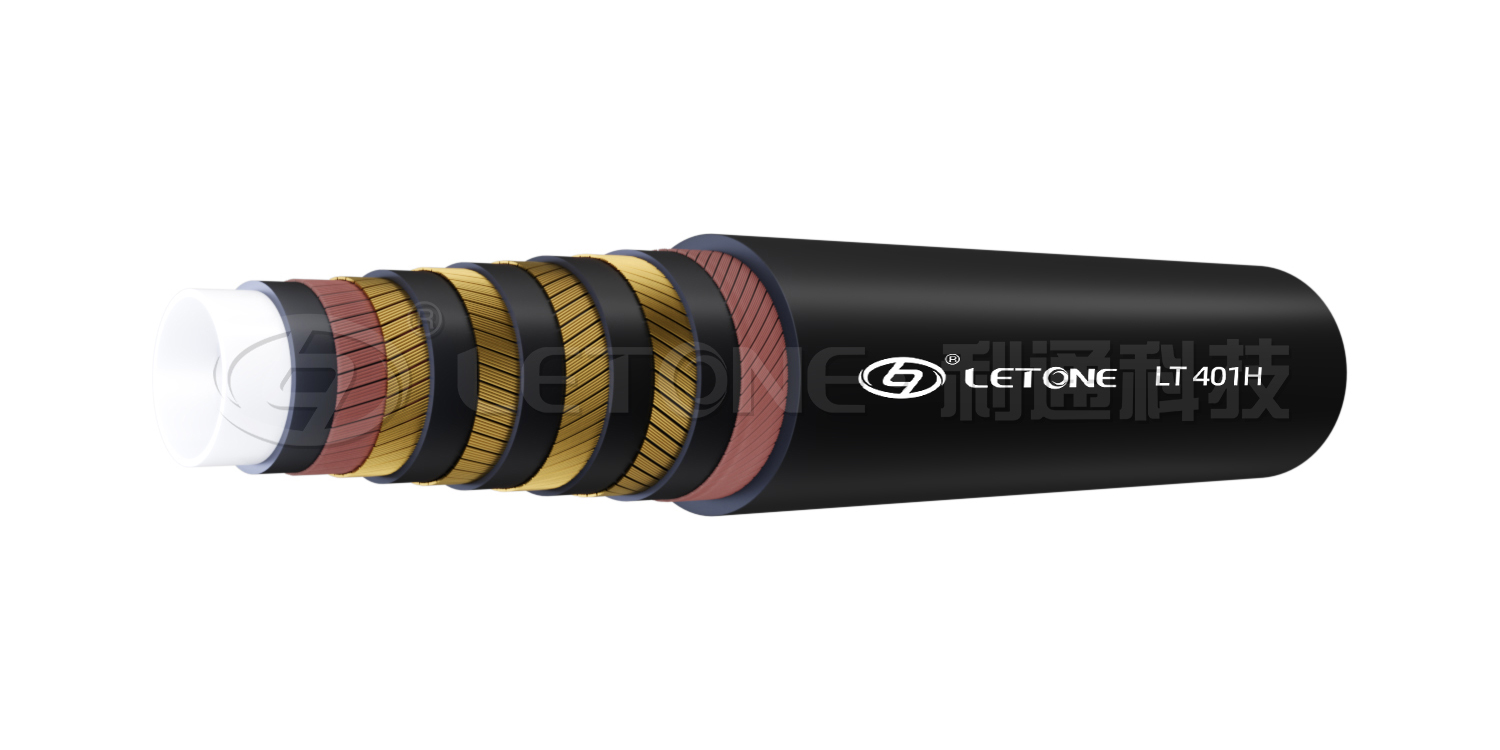

EN12115 PTFE HIGH PRESSURE MULTIPURPOSE HOSE

Application：Widely apply to various industries like chemical, petroleum, iron and steel smelting, F&B and medication etc. The product is suitable to work under high temperature environment.Depending on its feature of super corrosion-resistant, even strong corrosion chemicals like sulfuric acid, hydrochloric acid and sulfur reactant could not react with it. It is also one of the best choices for food and medical industries.

Inner layer：PTFE and EPDM synthetic rubber

Reinforcement layer：two steel wire braids or four-ply of spiraled steel wire

Outer layer：black /red/yellow/blue oxygen, UV,andabrasion resistant NV or EPDM synthetic rubber (UPE layer is available)

Temperature range： -55°C~220°C (-67°F~428°F)

Reference standard：EN12115

Customized scope：can customize 4 'and inner diameter of hose

Online

Hotline ：

+86-0371-55157686

EN12115 PTFE HIGH PRESSURE MULTIPURPOSE HOSE

Parameter

I.D		O.D		W.P	Min.B.P	W.T
in	mm	in	mm	psi	psi	kg/m
3/8*2	10	0.83	21	6090	24070	0.82
1/2*2	13	0.95	24.2	6090	24070	0.94
5/8*2	16	1.15	29.2	6090	24070	1.25
3/4*2	19	1.24	31.5	5510	22040	1.60
1*2	25	1.56	39.5	5510	22040	1.93
1-1/4*2	32	1.84	46.8	4785	18850	3.02
1-1/2*2	38	2.21	57	4205	16820	3.57
2*4	51	3.15	80	5000	12500	7.8
3*4	76	4.25	108	5000	12500	12.0
4*4	102	5.47	139	5000	12500	17.8

Note: The actual parameters are subject to the final atlas
