LT403

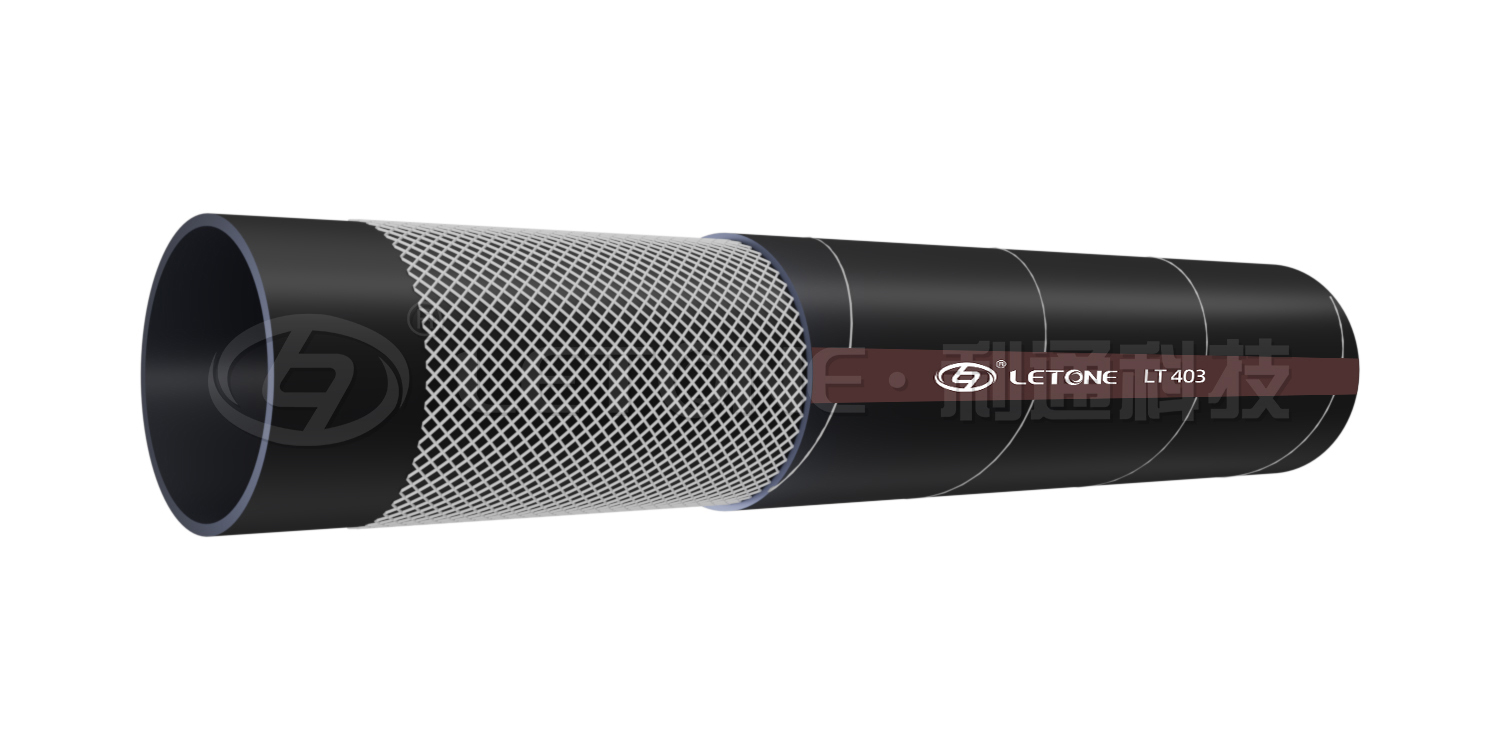

EPDM multifunctional hose
Application:suitable for conveying air, water, non-aggressive chemicals, food, etc

Inner layer:EPDM
Reinforcement layer:high strength textile rope
Outer layer:wear-resistant, weather-resistant EPDM
Temperature range:-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)
EPDM multifunctional hose
Parameter
I.D. O.D. W.P. W.P. W.T.
Dash In. mm mm MPa psi MPa psi g/m
-4 1/4 6 13 2 300 6 900 160
-5 5/16 8 15 2 300 6 900 200
-6 3/8 10 17 2 300 6 900 220
-8 1/2 13 21 2 300 6 900 340
-10 5/8 16 25 2 300 6 900 450
-12 3/4 19 29 2 300 6 900 570
-16 1 25 35 2 300 6 900 740
-20- 1 1/4 32 44 2 300 6 900 920
-24 11/2 38 52 2 300 6 900 1080
-32 2 51 66 2 300 6 900 1650

Note: The actual parameters are subject to the final atlas
