Corrugated PTFE hose -Letone

LT400C

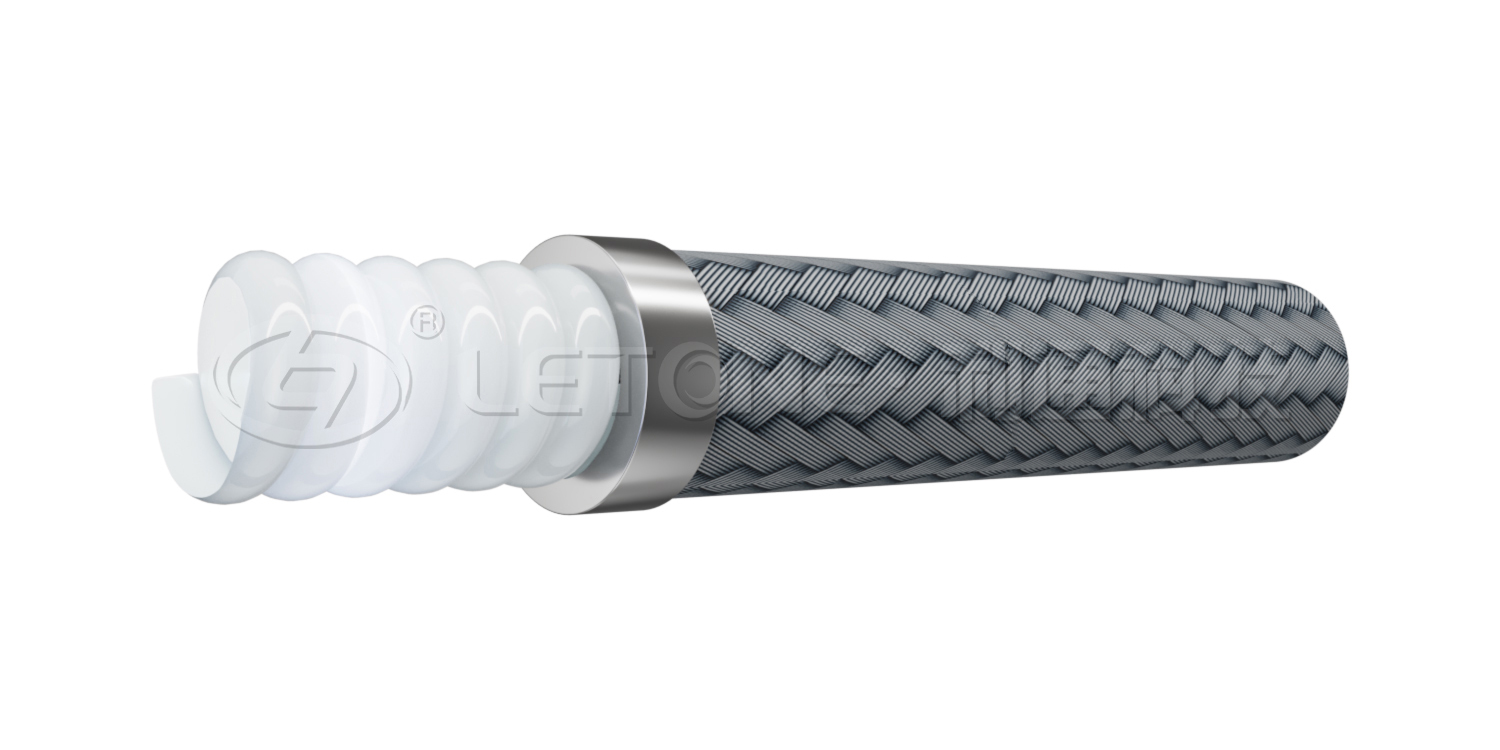

Corrugated PTFE hose

Application：This product has the characteristics of high temperature resistance, chemical corrosion resistance, non-adhesive substances, etc., can be customized conductive / insulation and food-grade (in accordance with FDA standards) inner layer. Suitable for conveying compressed air, ester materials (such as grease), viscous materials (such as glue), corrosive chemicals, and oil and other fluids at high temperatures

Inner layer：Corrugated PTFE

Reinforcement layer：high strength 304 stainless steel wire braid

.Outer layer：high strength 304 stainless steel wire braid

Temperature range：-60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉)

Online

Hotline ：

+86-0371-55157686

Parameter

I.D.			O.D.	W.P.		MIN.B.R.	W.T.
Dash	In.	mm	mm	MPa	psi	mm	g/m
-8	1/2	13	18.80	15	2175	63	280
-10	5/8	16	22.1	10	1450	128	330
-12	3/4	19	24.65	8	1160	160	400
-16	1	25	32.77	6	870	223	550
-20	1 1/4	32	40.72	5	725	318	690
-24	1 1/2	38	48.25	4	580	380	890
-32	2	51	61.5	3	435	500	1240

Note: The actual parameters are subject to the final atlas

LT409

Stainless steel narrow corrugated metal hose

Tube：316L stainless steel
Braid：304 stainless steel
Safety factor：3:1
Temperature range：-270 ° C ~ + 600 ° C (-454 ° F ~ + 1112 ° F)

Inquiry

LT401L

EN12115 PTFE LOW PRESSURE MULTIPURPOSE HOSE

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement：multi-spiraled high tensile synthetic fibers and helical spiral-wire
Outer layer：black or blue EPDM or FKM synthetic rubber (UPE layer is available)
Temperature range：-55°C~220°C (-67°F~428°F)
Reference standard：EN12115

Inquiry

LT401H

EN12115 PTFE HIGH PRESSURE MULTIPURPOSE HOSE

Inner layer：PTFE and EPDM synthetic rubber
Reinforcement layer：two steel wire braids or four-ply of spiraled steel wire
Outer layer：black /red/yellow/blue oxygen, UV,andabrasion resistant NV or EPDM synthetic rubber (UPE layer is available)
Temperature range： -55°C~220°C (-67°F~428°F)
Reference standard：EN12115
Customized scope：can customize 4 'and inner diameter of hose

Inquiry

LT1202H

EN12115 UPE HIGH PRESSURE MULTIPURPOSE HOSE

Inner Tube: UPE and EPDM synthetic rubber
Reinforcement: two steel wire braids or four-ply of spiraled steel wire
Outer Layer: black /red/yellow/blue oxygen, UV ,andabrasion resistant NV or EPDM synthetic rubber(UPE layer is available)
Temperature Range: -30°C~82°C (-22°F~180°F)
Reference standard：EN12115

Inquiry
