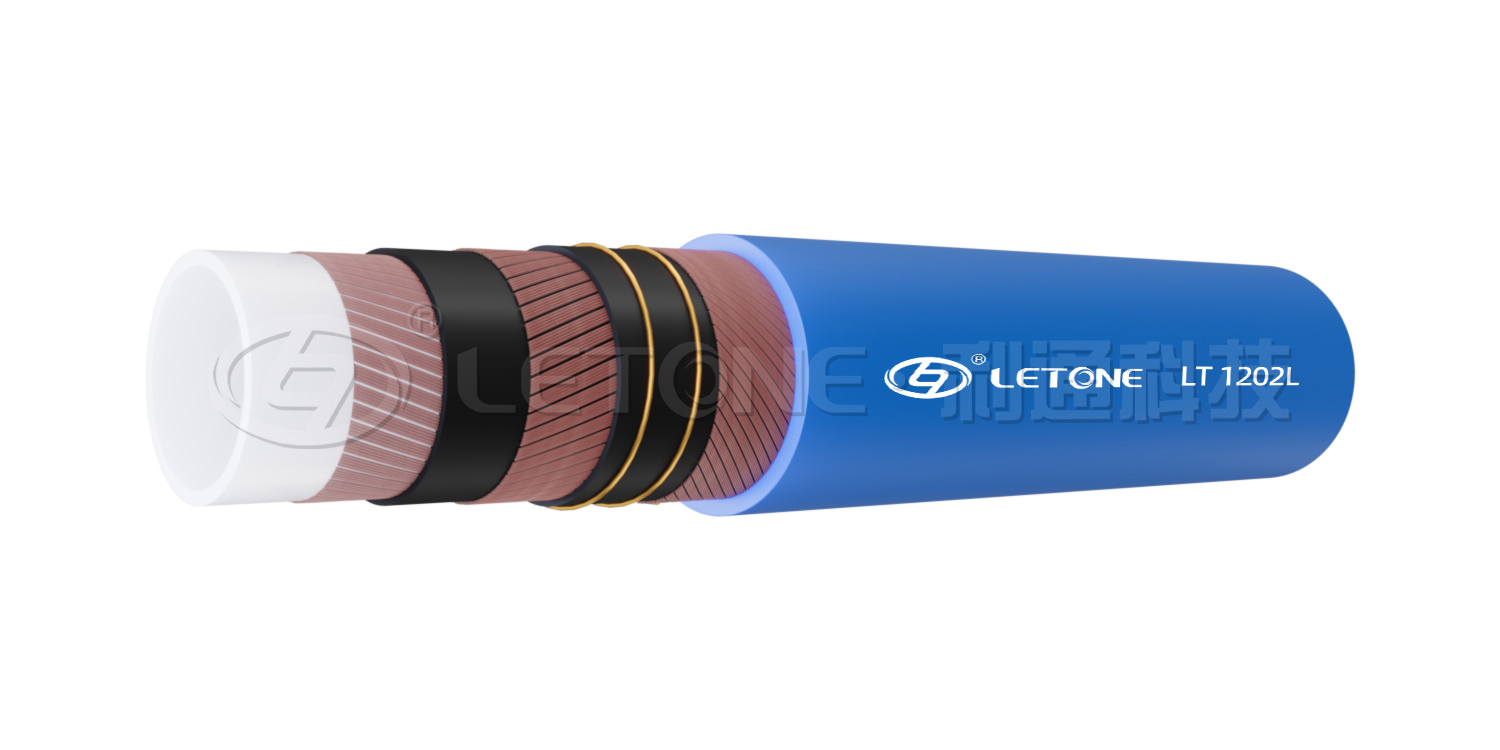

LT1202L
EN12115 UPE LOW PRESSURE MULTIPURPOSE HOSE
Application:widely apply to industries like chemical, iron and steel smelting, construction, F&B, and medication etc. It is rarely reacting with any substance (oil, fats, corrosion chemicals etc.) because of its highly saturation materials. Its neutral taste and odor illustrates that it is safe to use in the F&B and medication industries.

Inner Tube: UPE and EPDM synthetic rubber:
Reinforcement: multi-spiraled high tensile synthetic fibers and helical spiral-wire:
Outer Layer: black or blue EPDM synthetic rubber (UPE layer is available):
Temperature Range: -30°C~82°C (-22°F~180°F):
Reference standard:EN12115
EN12115 UPE LOW PRESSURE MULTIPURPOSE HOSE
Parameter
I.D O.D W.P Min.B.P Min.B.R W.T
in mm in mm psi psi mm kg/m
1/2 13 0.89 22.5 290 870 130 0.34
5/8 16 1.04 26.5 290 870 150 0.44
3/4 19 1.17 29.7 290 870 180 0.52
1 25 1.39 35.2 290 870 205 0.52
1-1/4 32 1.77 45 290 870 250 0.95
1-1/2 38 2.04 52 290 870 300 1.2
2 51 2.64 67 300 750 400 1.65
3 76 3.82 97 300 750 570 2.75
4 102 4.84 123 300 750 750 4.65

Note: The actual parameters are subject to the final atlas
