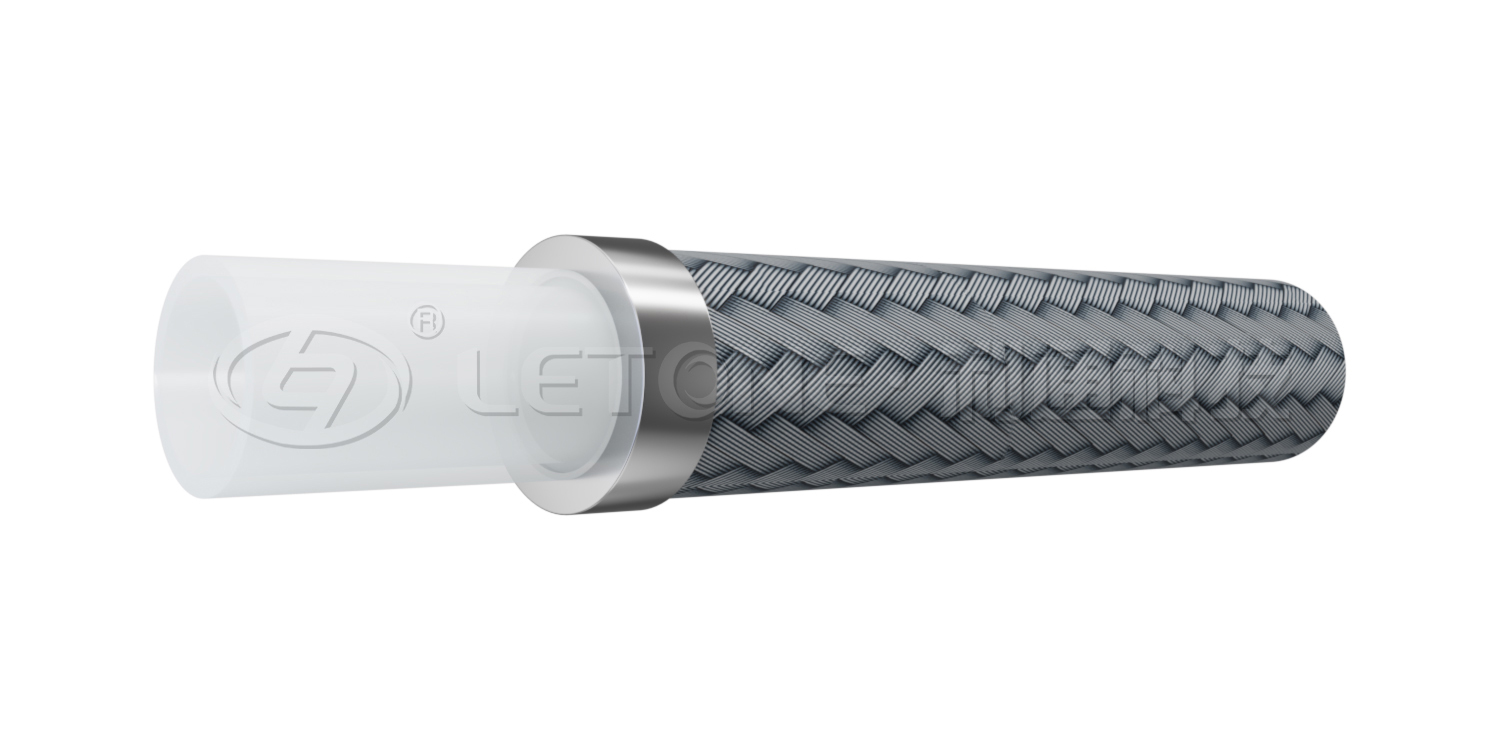

LT400S
PTFE hose
Application:The inner wall of the product is smooth, with high temperature resistance, chemical corrosion resistance, non-adhesive substances and other characteristics, and can be customized conductive / insulation and food-grade (in accordance with FDA standards) inner layer. Suitable for conveying compressed air, ester materials (such as grease), viscous materials (such as glue), corrosive chemicals, and oil and other fluids at high temperatures

Inner layer:PTFE
Reinforcement layer:high strength 304 stainless steel wire braid
Outer layer:high strength 304 stainless steel wire braid
Temperature range:-60 ℃ ~ + 260 ℃ (-76 ℉ ~ + 500 ℉)
PTFE hose
Parameter
I.D. O.D. W.P. MIN.B.R. W.T.
Dash In. mm mm MPa psi mm g/m
-3 3/16 5 7.86 28 4060 77 90
-4 1/4 6. 8.64 25 3625 114 90
-5 5/16 8 11.05 21 3045 156 130
-6 3/8 10 12.65 19 2755 191 150
-8 1/2 13 15.40 17 2465 315 200
-10 5/8 16 18.40 14 2030 248 270
-12 3/4 19 22.1 12 1740 305 330
-16 1 25 29.75 7 1015 478 520

Note: The actual parameters are subject to the final atlas
