50041-RW 45°Metric Stand Pipes Straight

45° Elbow Compression Fitting Straight Tube

Application: Widely used in hydraulic and fluid transfer systems in engineering, plastics, metallurgy, agriculture, military machinery, chemical, oilfield, marine and other industries.
Product Features: The product features excellent structure and advanced design

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

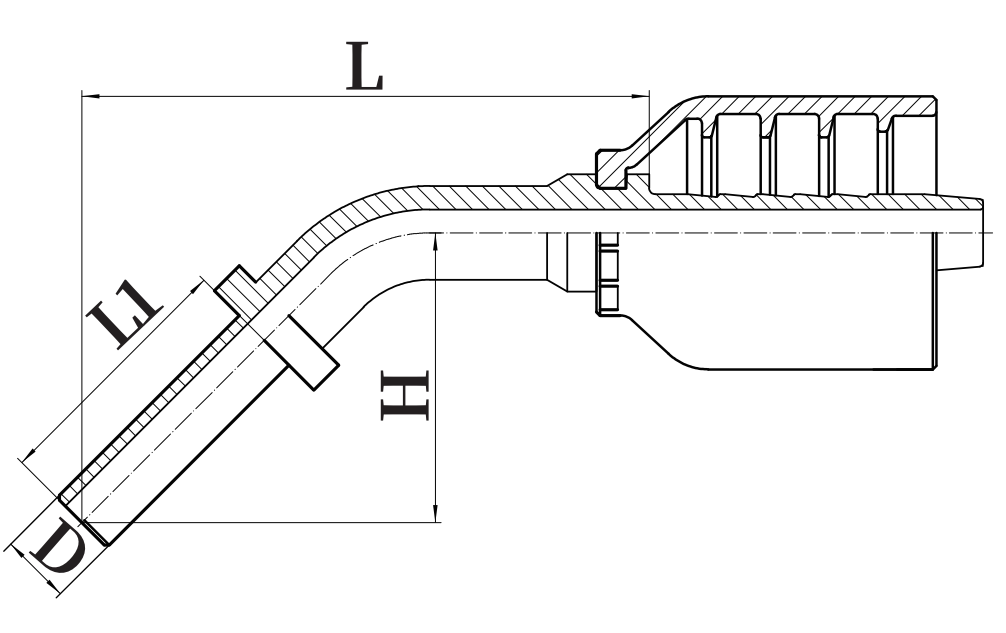

PART NO	TUBE O.D	HOSE BORE		DIMENSIONS				NOTE
PART NO	TUBE O.D	DN	DASH	L	H	D	L1	NOTE
50041-06L-04RW	6	6	04	52	30	6	22	(L)
50041-10L-05RW	10	8	05	54	30.5	10	23
50041-10L-06RW	10	10	06	56	31	10	23
50041-12L-06RW	12	10	06	58.5	34	12	25
50041-12L-08RW	12	13	08	73	37	12	25
50041-15-08RW	15	13	08	71	35.5	15	25
50041-18-10RW	18	16	10	85	39.5	18	26
50041-22-10RW	22	16	10	87	42	22	28
50041-22-12RW	22	19	12	93.5	45.5	22	28
50041-22-16RW	22	25	16	101	46.5	22	28
50041-28-16RW	28	25	16	104	49.5	28	30
50041-35-20RW	35	32	20	119	57.5	35	36
50041-08S-04RW	8	6	04	54	30	8	24	(S)
50041-08S-05RW	8	8	05	56	32	8	24
50041-08S-06RW	8	10	06	58	33	8	24
50041-10S-04RW	10	6	04	54	31	10	23
50041-12S-04RW	12	6	04	57	35	12	25
50041-12S-05RW	12	8	05	59	35.5	12	25
50041-14-05RW	14	8	05	61	37	14	29
50041-14-06RW	14	10	06	62	37.5	14	29
50041-14-08RW	14	13	08	74	38.5	14	29
50041-16-08RW	16	13	08	77	41.5	16	30
50041-16-10RW	16	16	10	88	43	16	30
50041-20-10RW	20	16	10	93	48	20	36
50041-20-12RW	20	19	12	101	52.5	20	36
50041-25-12RW	25	19	12	102	54	25	40
50041-25-16RW	25	25	16	110	55	25	40
50041-30-16RW	30	25	16	114	59.5	30	44
50041-30-20RW	30	32	20	125	63.5	30	44
50041-38-16RW	38	25	16	119	63.5	38	50
50041-38-20RW	38	32	20	129	68	38	50

Note: 1. The codes in the table are for braided hoses; 2. If you need to use spiral wound hoses, change the code to 50042-XX-XXRW.
