50011-RW Metric Stand Pipes Straight

Compression Fitting Straight Tube

Application: Widely used in hydraulic and fluid transfer systems in engineering, plastics, metallurgy, agriculture, military machinery, chemical, oilfield, marine and other industries.
Product Features: The product features excellent structure and advanced design

Online consultation Leave a message

24 Hours Service Hotline

+86-0371-55157686

Data Display

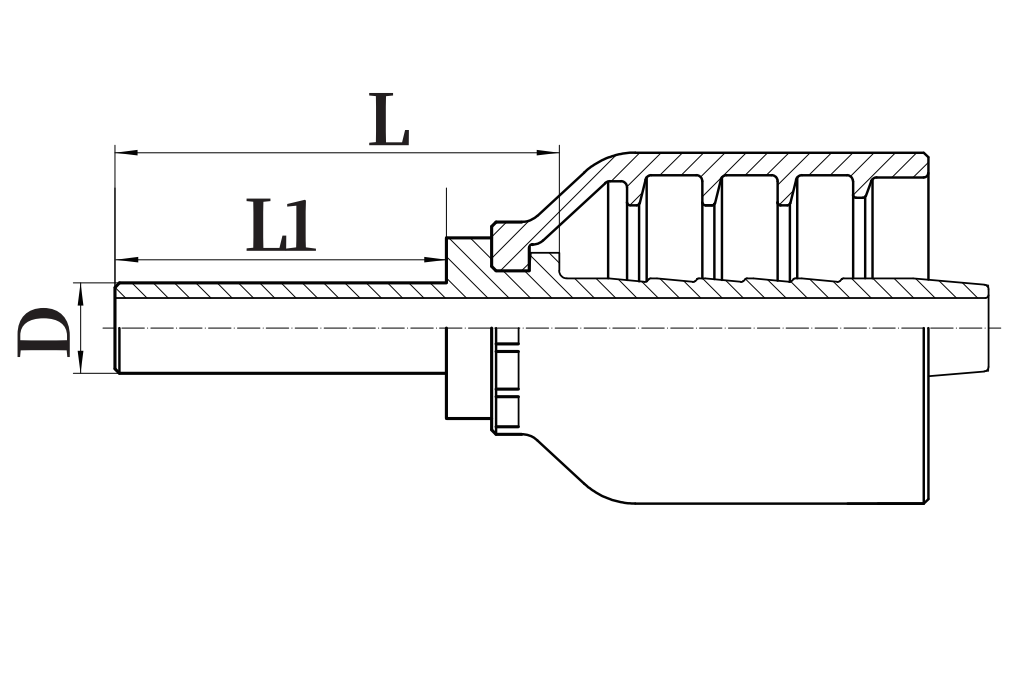

PART NO	TUBE O.D	HOSE BORE		DIMENSIONS			NOTE
PART NO	TUBE O.D	DN	DASH	L	D	L1	NOTE
50011-06L-04RW	6	6	04	29.5	6	22	(L)
50011-10L-05RW	10	8	05	31	10	23
50011-10L-06RW	10	10	06	33.5	10	23
50011-12L-06RW	12	10	06	32	12	25
50011-12L-08RW	12	13	08	32.5	12	25
50011-15-08RW	15	13	08	35.5	15	25
50011-18-10RW	18	16	10	35	18	26
50011-22-10RW	22	16	10	38	22	28
50011-22-12RW	22	19	12	38	22	28
50011-22-16RW	22	25	16	39	22	28
50011-28-16RW	28	25	16	41	28	30
50011-35-20RW	35	32	20	56	35	36
50011-42-24RW	42	38	24	62	42	40
50011-08S-04RW	8	6	04	31	8	24	(S)
50011-08S-05RW	8	8	05	31	8	24
50011-08S-06RW	8	10	06	31	8	24
50011-10S-04RW	10	6	04	35	10	23
50011-12S-04RW	12	6	04	33	12	25
50011-12S-05RW	12	8	05	33	12	25
50011-14-05RW	14	8	05	39.5	14	29
50011-14-06RW	14	10	06	39.5	14	29
50011-14-08RW	14	13	08	40	14	29
50011-16-08RW	16	13	08	41	16	30
50011-16-10RW	16	16	10	42	16	30
50011-20-10RW	20	16	10	52.5	20	36
50011-20-12RW	20	19	12	52.5	20	36
50011-25-12RW	25	19	12	56	25	40
50011-25-16RW	25	25	16	57	25	40
50011-30-16RW	30	25	16	63	30	44
50011-30-20RW	30	32	20	64	30	44
50011-38-16RW	38	25	16	69	38	50
50011-38-20RW	38	32	20	70	38	50

Note: 1. The codes in the table are for braided hoses; 2. If you need to use spiral wound hoses, change the code to 29692-XX-XXRW.。
