BSP Bolt
24 Hours Service Hotline
+86-0371-55157686

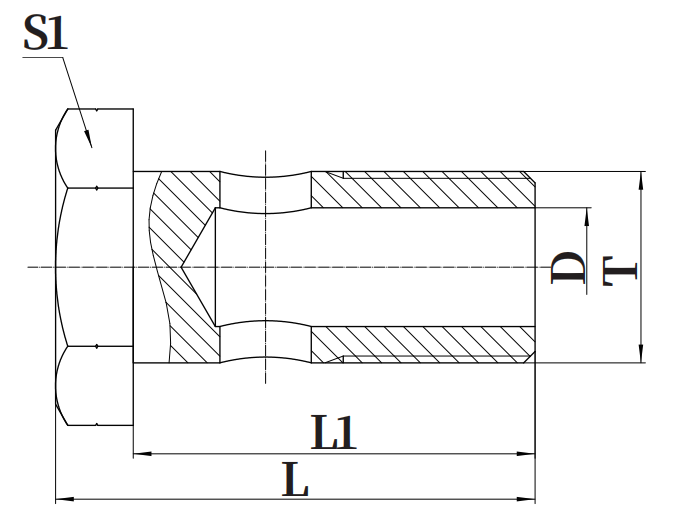

| PART NO. | THREAD T | DIMENSIONS | ||
| L | L1 | S1 | ||
| 720B-02 | G1/8 " X28 | 29.5 | 4.8 | 14 |
| 720B-04 | G1/4 " X19 | 28.5 | 6 | 19 |
| 720B-06 | G3/8 " X19 | 38.5 | 7 | 22 |
| 720B-08 | G1/2 " X14 | 44 | 8.5 | 27 |
| 720B-10 | G5/8 " X14 | 48.5 | 10 | 30 |
| 720B-12 | G3/4 " X14 | 46 | 10 | 32 |
| 720B-16 | G1 " X11 | 68.5 | 13 | 41 |
Note: For use with 72011.
