Home > PRODUCTS & SOLUTIONS > HYDRAULIC HOSE > Ultra High Pressure Cleaning Hose

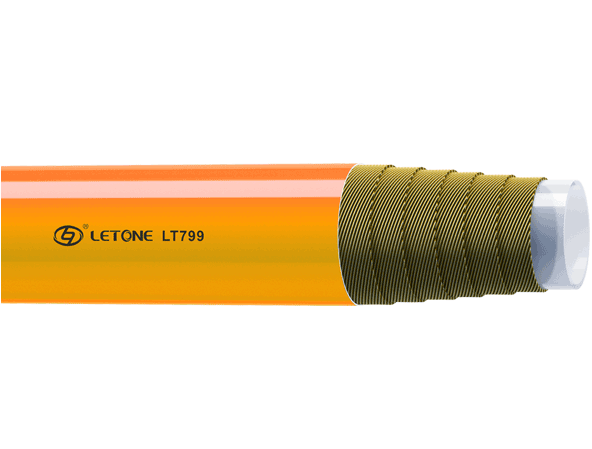

LT799D 6S
Ultra high pressure resin hose
Scope of application:ultra-high pressure water jet applications, especially for jet nozzles

Pressure range:2000 ~ 2800 bar (29000 ~ 40600 psi)
Features:Good flexibility
Feature:Continuous long pipe without broken ends is used to replace steel pipe
Features:water jet cutting
Features:hydraulic demolition
Features:remove dirt deposited on the surface
Ultra high pressure resin hose
Parameter
Part number Hose size ID OD WP
dash inch DN mm inch mm inch bar psi
D6S-5-2800 -3 3/16 5 5.0 0.197 14.8 0.583 2800 40600
D6S-6-2800 -4 1/4 6 6.3 0.248 16.5 0.650 2800 40600
D6S-8-2500 -5 5/16 8 8.1 0.319 19.0 0.748 2500 36200
D6S-12-2070 -8 1/2 12 12.8 0.504 25.9 1.020 2070 30000
D6S-20-1600 -12 3/4 20 18.8 0.740 33.7 1.327 1600 23200
