LT799 2SH

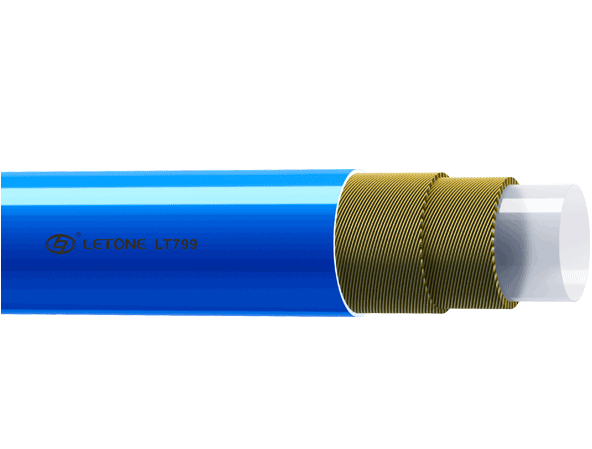

Ultra high pressure resin hose
Application industry: used in very high pressure application environment, such as cleaning the inner tube of heat exchanger in industries such as chemical and oil refining

Pressure range:1400 ~1500 bar (20300 ~ 21700 psi)
Features:high wear resistance
Features:small volume expansion under pressure
Features:Improve the flexibility of the hose
Joint:optional with integrated cartilage dry joint
Ultra high pressure resin hose
Parameter
Part number Hose size ID OD WP
dash inch DN mm inch mm inch bar psi
2SH-4-1040 - 5/32 4 3.9 0.154 8.0 0.315 1500 21700
2SH-5-1200 -3 3/16 5 4.8 0.189 9.3 0.366 1400 20300
