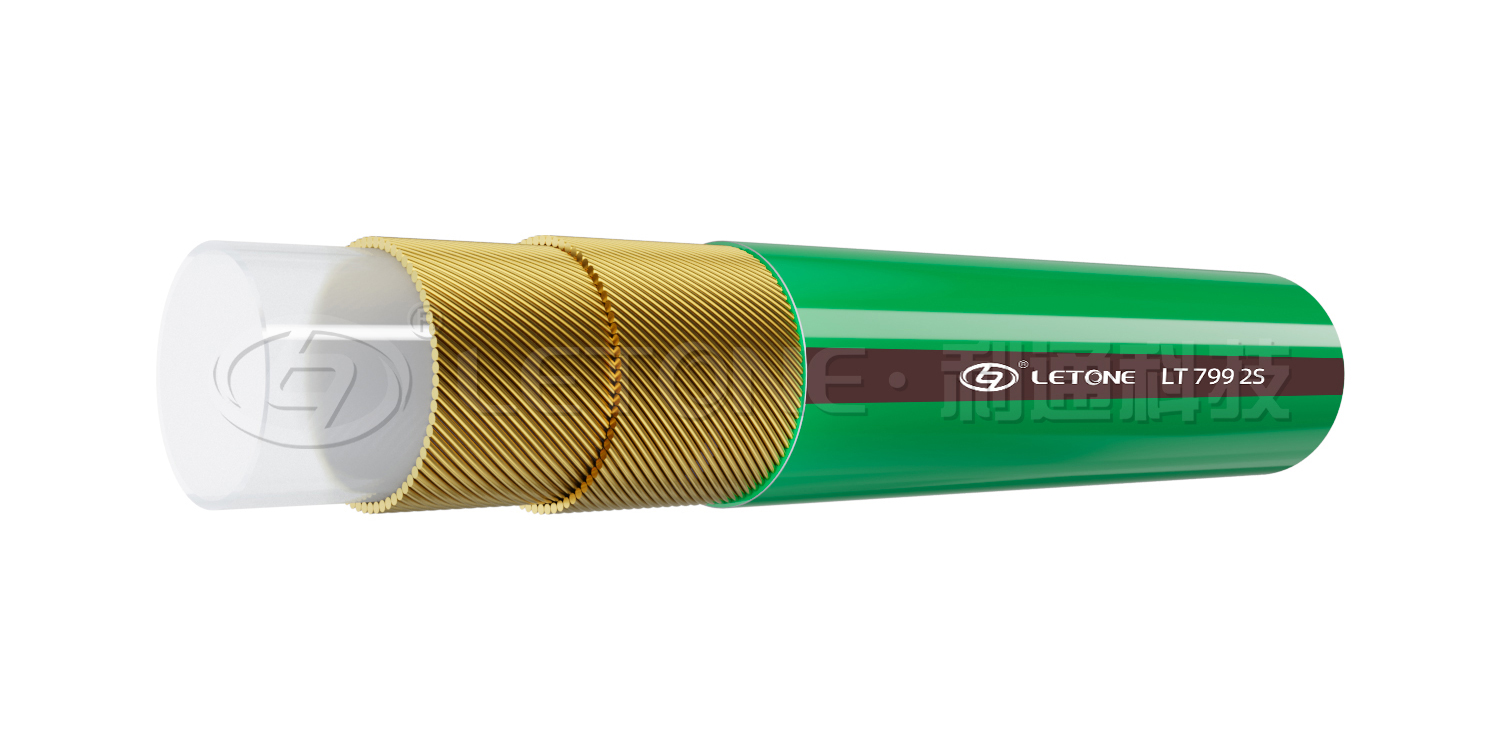

LT799 2S
Ultra high pressure resin hose
Scope of application : used in very high pressure application environment, such as cleaning the inner tube of heat exchanger in industries such as chemical and oil refining

Pressure range: 690~1200 bar (10000 ~ 17400 psi)
Features:high wear resistance
Features: small volume expansion under pressure
Joint::optional with integrated cartilage dry joint
Ultra high pressure resin hose
Parameter
Part number Hose size ID OD WP
dash inch DN mm inch mm inch bar psi
2S-3-1040 -2 1/8 3 3.5 0.138 7.2 0.283 1040 15000
2S-4-1200 - 5/32 4 4.1 0.161 8.2 0.323 1200 17400
2S-5-1040 -3 3/16 5 5.2 0.205 9.8 0.386 1040 15000
2S-6-1040 -4 1/4 6 6.4 0.252 11.5 0.453 1040 15000
2S-8-1040 -5 5/16 8 7.9 0.311 13.7 0.539 1040 15000
2S-10-690 -6 3/8 10 9.9 0.390 16.4 0.646 690 10000
2S-12-690 -8 1/2 12 12.8 0.504 20.4 0.803 690 10000
