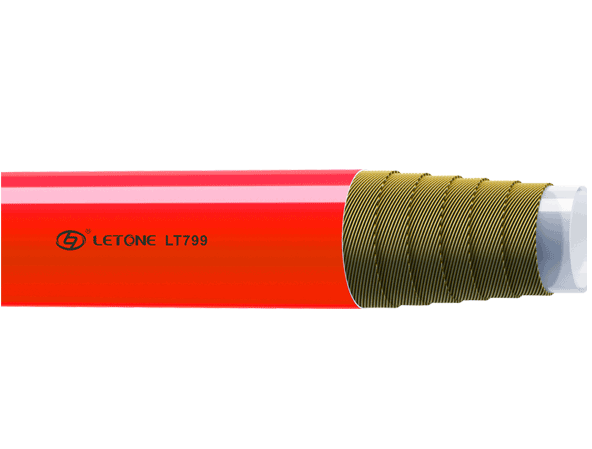

LT799E 6SH
Ultra high pressure resin hose
Scope of application : ultra-high pressure water jet applications, especially for jet nozzles

Pressure range: 2500 ~3200 bar (36250 ~46400 psi)
Feature:Continuous long pipe without broken ends is used to replace steel pipe
Features: Good flexibility
Features:water jet cutting
Features:hydraulic demolition
Features:remove dirt deposited on the surface
Ultra high pressure resin hose
Parameter
Part number Hose size ID OD WP
dash inch DN mm inch mm inch bar psi
E6SH-5-3200 -3 3/16 5 4.6 0.181 14.8 0.583 3200 46400
E6SH-8-2800 -5 5/16 8 7.6 0.299 19.4 0.764 2800 40600
E6SH-12-2500 -8 1/2 12 12.8 0.504 26.0 1.024 2500 36250
